STR720 - EXTENDED FUNCTION TIMER (EFT)
323/401

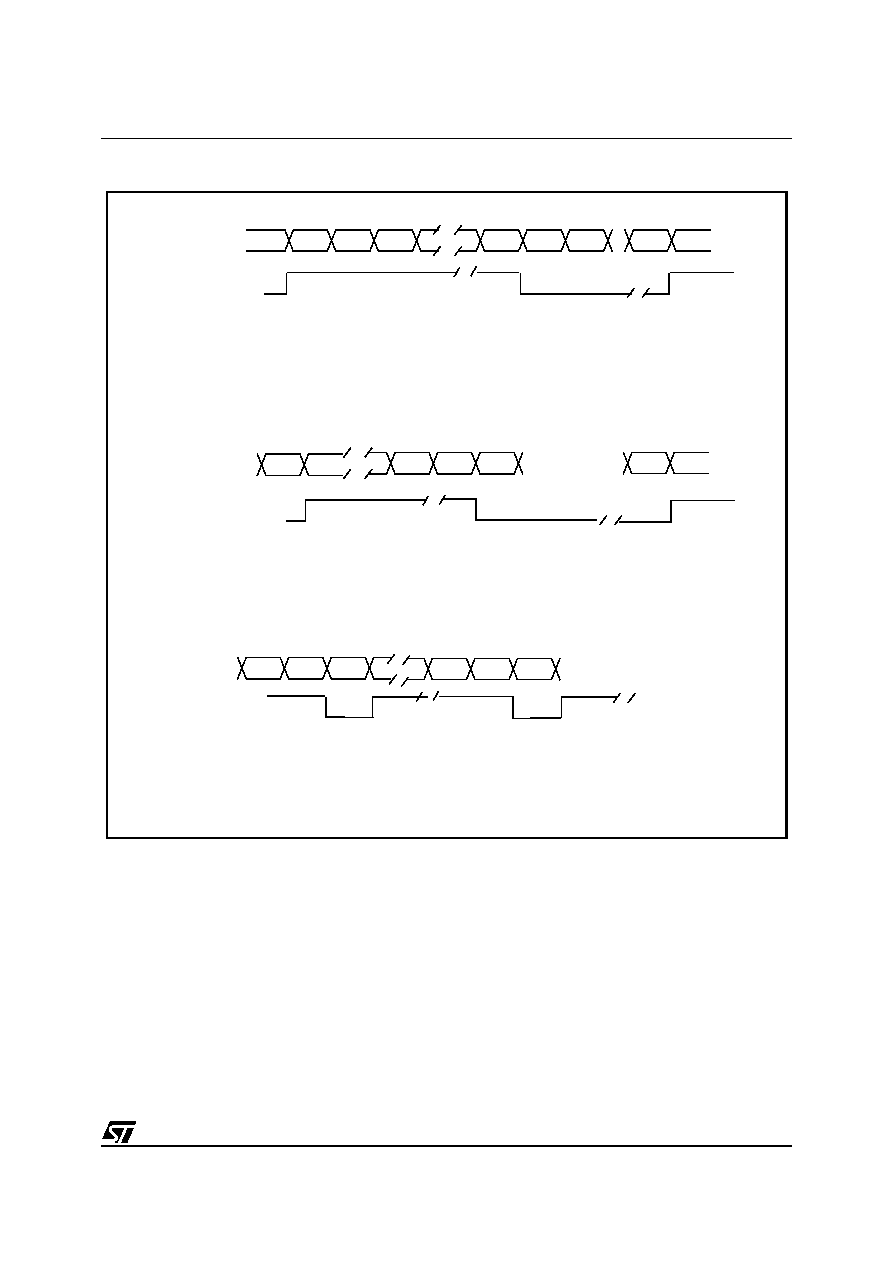

Figure 54. Pulse Width Modulation Mode Timing
COUNTER
34E2
FFFC FFFD FFFE
2ED0 2ED1 2ED2
34E2 FFFC
OLVLB
OLVLB
OLVLA
OCMPA
compare B
compare A
compare B
Note: OCAR = 2ED0h, OCBR = 34E2, OLVLA = 0, OLVLB = 1
COUNTER
000F
0010
FFFC
0010
FFFC
OLVLA
OLVLA
OLVLB
OCMPA
Note: OCAR = OCBR = 0010h, OLVLA = 1, OLVLB = 0
0010
FFFC
COUNTER
0003
0004
FFFC
OLVLA
OLVLB
OCMPA
Note: OCAR = FFFCh, OCBR = 0004h, OLVLA = 1, OLVLB = 0
0003
0004 FFFC
OLVLA
OLVLB
1
