B.
In GPMC_WAIT[j], j is equal to 0 or 1.

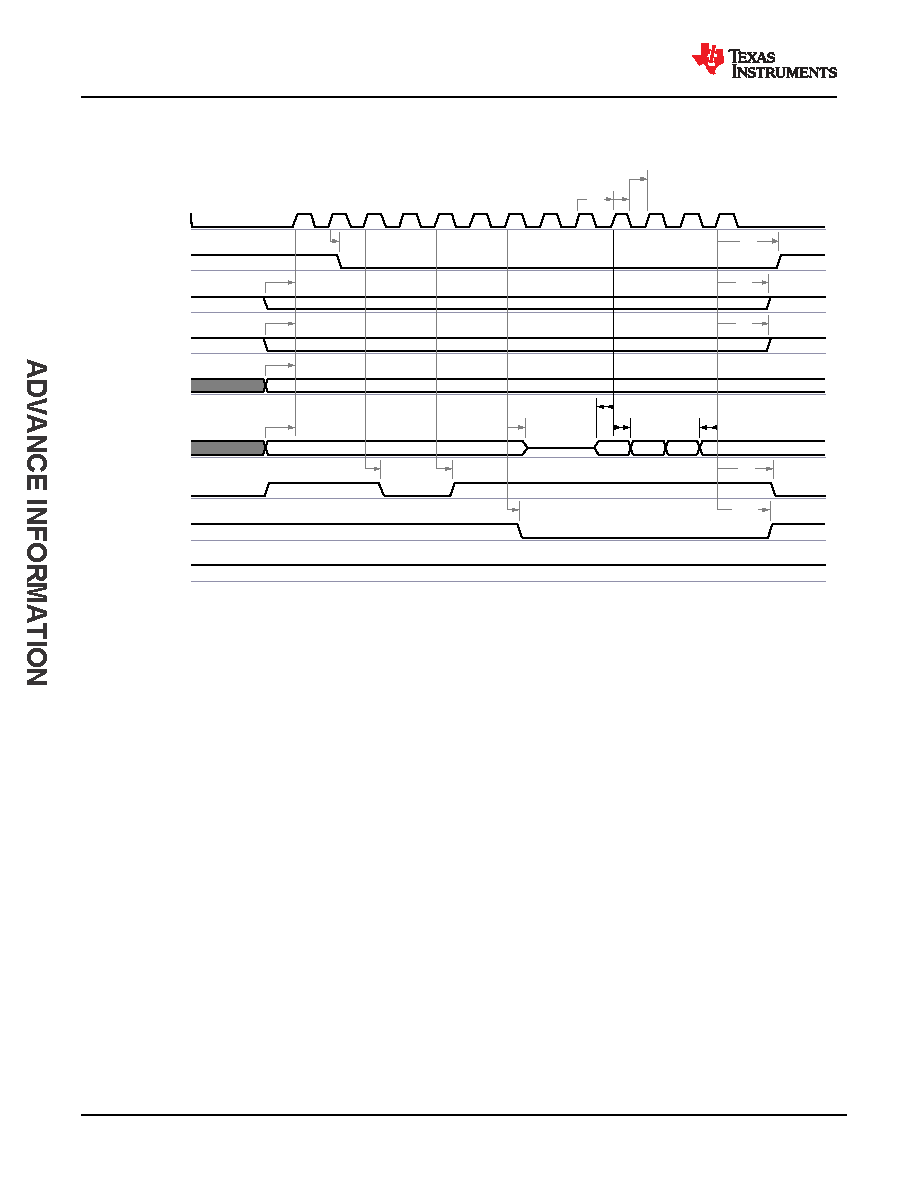

Figure 7-41. GPMC and NOR Flash—Synchronous Burst Write (GPMCFCLKDIVIDER = 0)
GPMC_CLK
GPMC_CSn[i]
GMPC_BE0n_CLE
GPMC_BE1n
GPMC_A[27:17]
GPMC_AD[15:0]
GPMC_ADVn_ALE
GPMC_OEn_REn
GPMC_WAIT[j]
Valid
Valid
Address (MSB)
Address (LSB)
D0
D1
D2
D3
F4
F6
F4
F2
F8
F8
F10
F13
F12
F12
F11
F9
F7
F3
F0
F1
F1
F5
F6
F7
GPMC_04
A.
In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B.
In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 7-42. GPMC and Multiplexed NOR Flash — Synchronous Burst Read
AM2434, AM2432, AM2431
SPRSP65D – APRIL 2021 – REVISED AUGUST 2022
www.ti.com
172
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: AM2434 AM2432 AM2431
