XAM2431..ALX 데이터시트(PDF) 180 Page - Texas Instruments

부품명 XAM2431..ALX
상세설명  AM243x Sitara™ Microcontrollers
PDF  280 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TI [Texas Instruments]
홈페이지  http://www.ti.com
Logo TI - Texas Instruments

XAM2431..ALX 데이터시트(HTML) 180 Page - Texas Instruments

Back Button XAM2431..ALX Datasheet HTML 176Page - Texas Instruments XAM2431..ALX Datasheet HTML 177Page - Texas Instruments XAM2431..ALX Datasheet HTML 178Page - Texas Instruments XAM2431..ALX Datasheet HTML 179Page - Texas Instruments XAM2431..ALX Datasheet HTML 180Page - Texas Instruments XAM2431..ALX Datasheet HTML 181Page - Texas Instruments XAM2431..ALX Datasheet HTML 182Page - Texas Instruments XAM2431..ALX Datasheet HTML 183Page - Texas Instruments XAM2431..ALX Datasheet HTML 184Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 180 / 280 page
background image
GPMC_FCLK
GPMC_CLK
GPMC_CSn[i]
GPMC_BE0n_CLE
GPMC_BE1n
GPMC_ADVn_ALE
GPMC_OEn_REn
GPMC_WAIT[j]
Address (MSB)
Valid
Valid
Address (LSB)
Data IN
Data IN
FA0
FA9
FA10
FA3
FA13
FA29
FA1
FA37
FA12
FA4
FA10
FA0
FA5
GPMC_A[27:17]
GPMC_AD[15:0]
GPMC_10
A.
In GPMC_CSn[i], i is equal to 0, 1, 2 or 3. In GPMC_WAIT[j], j is equal to 0 or 1.
B.
FA5 parameter illustrates amount of time required to internally sample input data. It is expressed in number of GPMC functional clock
cycles. From start of read cycle and after FA5 functional clock cycles, input data will be internally sampled by active functional clock
edge. FA5 value must be stored inside AccessTime register bits field.
C.
GPMC_FCLK is an internal clock (GPMC functional clock) not provided externally.

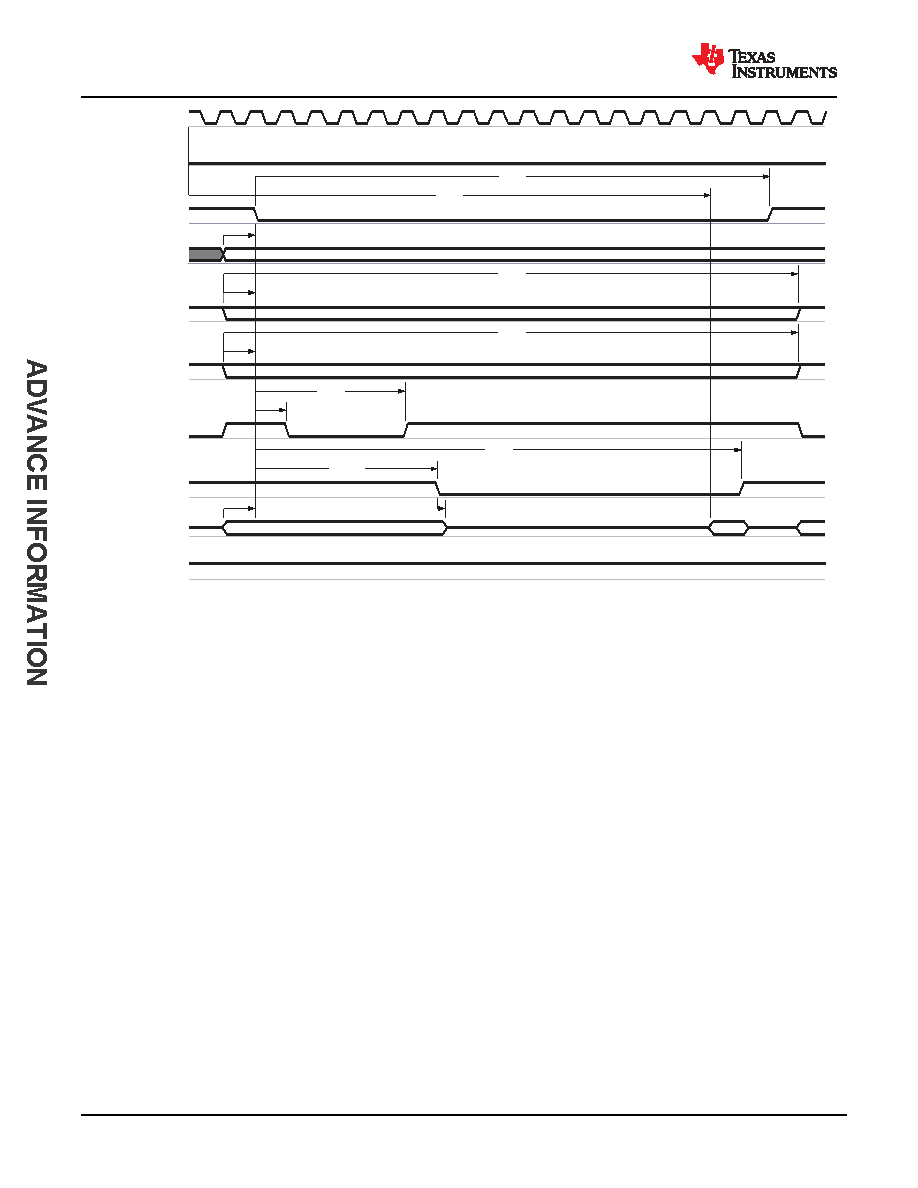

Figure 7-48. GPMC and Multiplexed NOR Flash — Asynchronous Read — Single Word
AM2434, AM2432, AM2431
SPRSP65D – APRIL 2021 – REVISED AUGUST 2022
www.ti.com
180
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: AM2434 AM2432 AM2431
