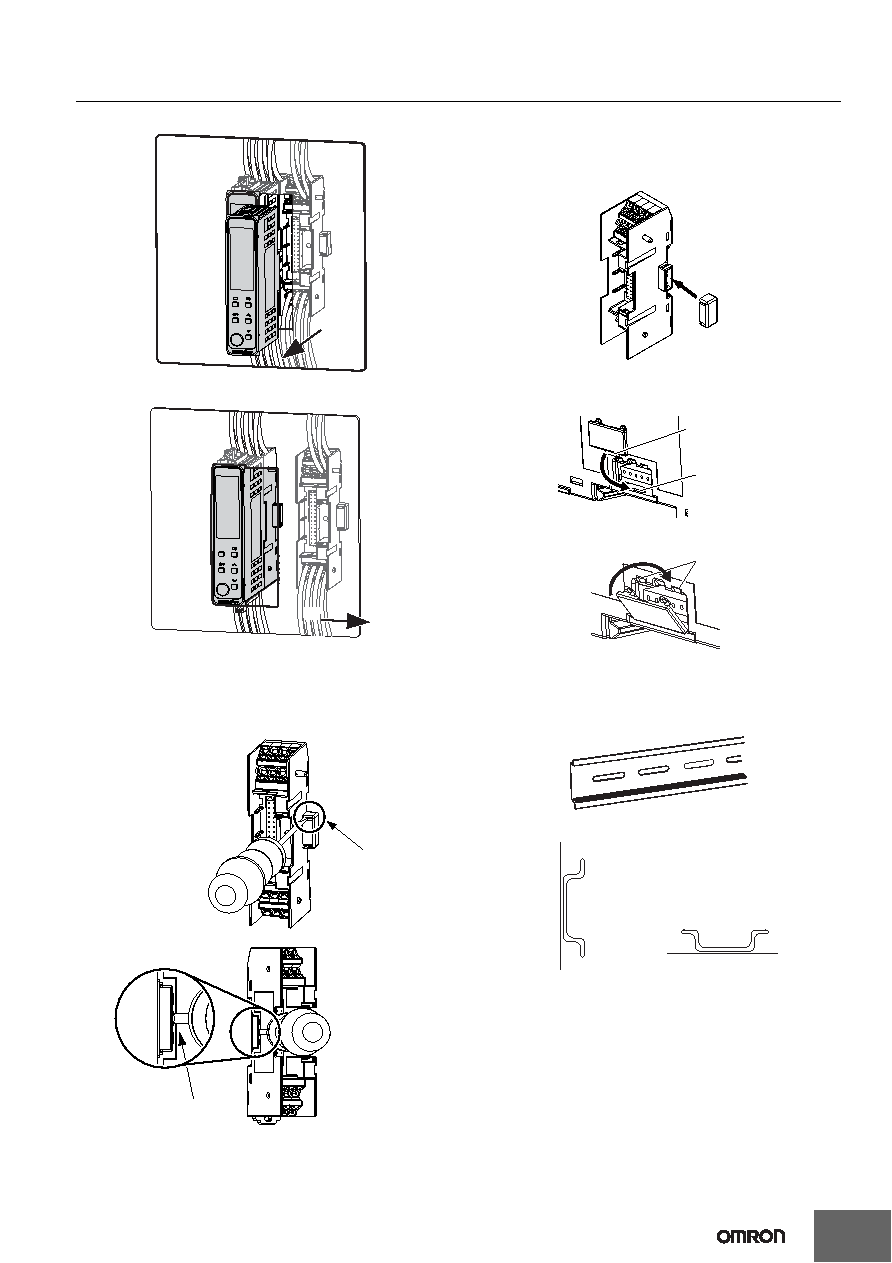

129 / 138 page  E5 @C/E5@C-T 129 2. Remove the Main Unit from the Terminal Unit. 3. Remove the Terminal Units. Removing the Connector Cover E5DC-B 1. For both male and female covers, insert the tip of a flat-blade screwdriver into the cutout on the connector cover to remove the connector cover. Attaching the Connector Cover E5DC-B For male connector covers 1. Press on the connector cover until it clicks into place. There is no vertical direction for male connector covers. For female connector covers 1. Insert the projecting part on the female connector cover into the groove on the terminal unit. 2. Press on the female connector cover until it clicks into place in the cutout. Mounting the DIN Track Attach the DIN Track to the inside of the control panel with screws to at least three locations. • DIN Track (sold separately) PFP-50N (50 cm) and PFP-100N (100 cm) Install the DIN Track vertically to the ground. (2) (3) Cutout Male connector cover Cutout Female connector cover (1) Projection Part Groove (1) Cutout (2) Vertical: OK Horizontal: NG |
|
