M24LR64-R
I2C DC and AC parameters
Doc ID 15170 Rev 10
115/128

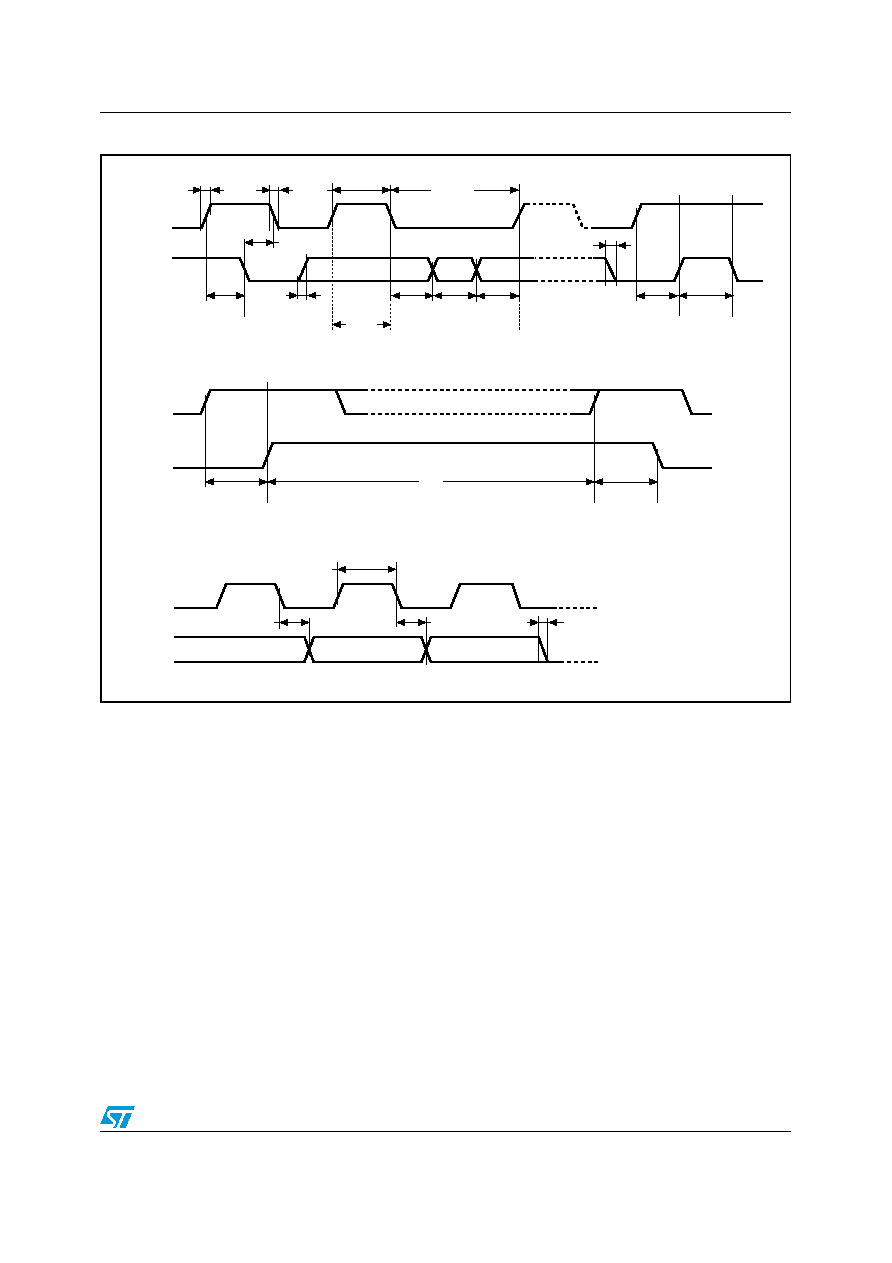

Figure 72.
I2C AC waveforms
SCL
SDA In
SCL
SDA Out
SCL
SDA In
tCHCL
tDLCL
tCHDL
Start
condition
tCLCH
tDXCH
tCLDX
SDA
Input
SDA
Change
tCHDH
tDHDL
Stop
condition
Data valid
tCLQV
tCLQX
tCHDH
Stop
condition
tCHDL
Start
condition
Write cycle
tW
AI00795e
Start
condition
tCHCL
tXH1XH2
tXH1XH2
tXL1XL2
tXL1XL2
Data valid
tQL1QL2
