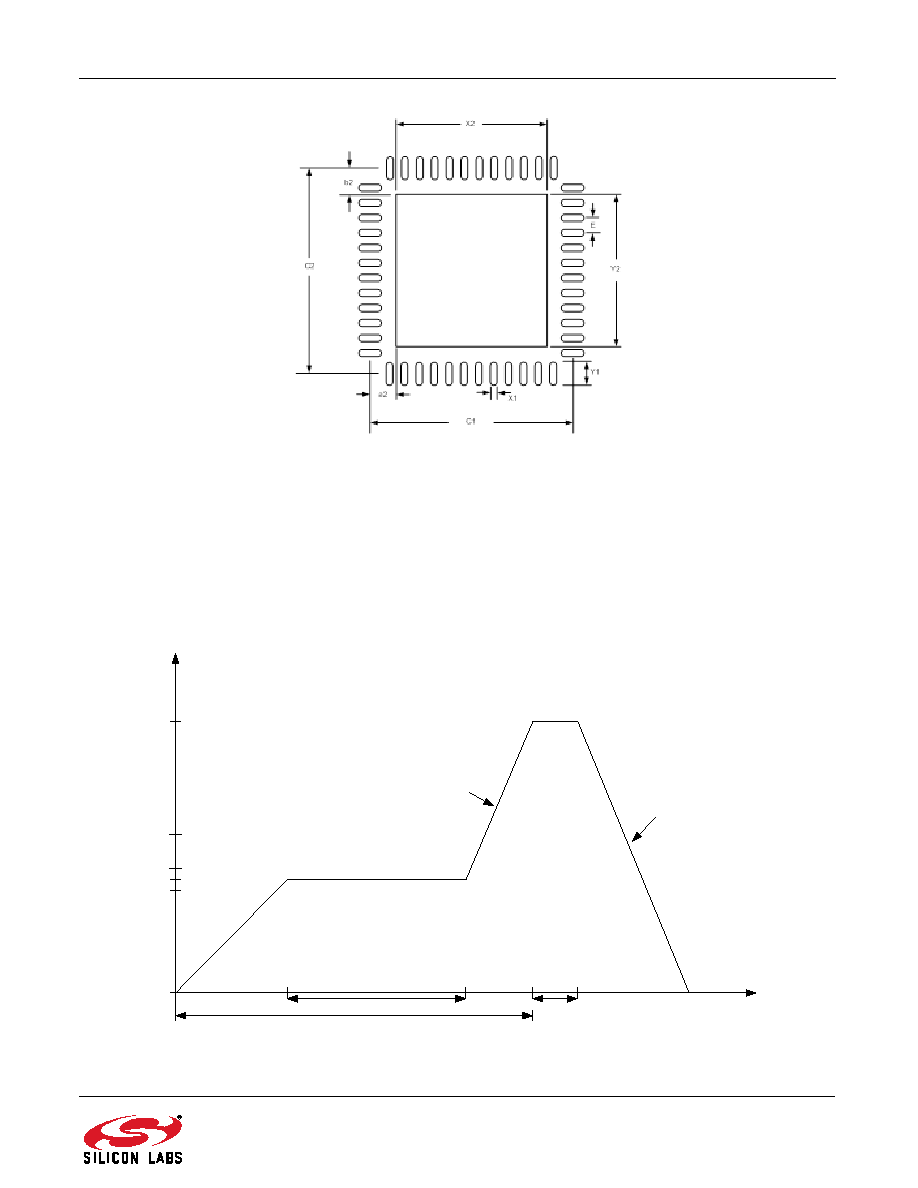

Figure 20.4. Paste Mask Dimensions
20.2. Solder Temperature Profile
Figure 20.5 illustrates the solder temperature profile for the EM35x. This temperature profile is similar for other
RoHS compliant packages, but manufacturing lines should be programmed with this profile in order to guarantee
proper solder connection to the PCB.
Figure 20.5. EM35x Reflow Profile
Tsoak
Tsoak
max
Tsoak
min
Tpeak
tpeak
tsoak
t 25C to tpeak
Temperature
time
Ramp-up
25C
Ramp-down
T
L
