AC Line Filters – SS Coils, SSB11V-R/11H-R Type

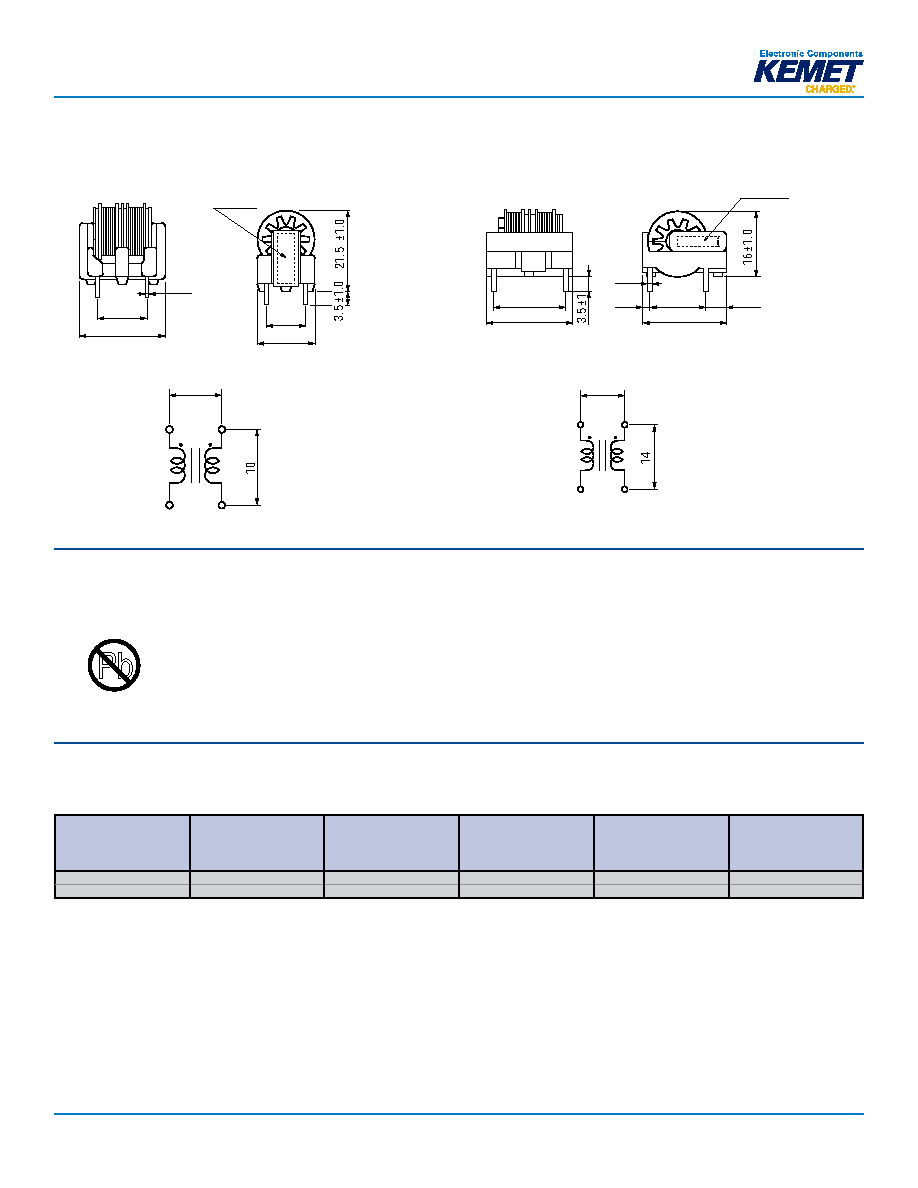

Dimensions – Millimeters

SSB11V-R

13

10±0.5

14.5 ±1.0

13±0.5

22±1.0

ø0.8

18±0.5

21±1.0

14±0.5

(1.5)

(5.0)

20.5 ±1.0

18

ø0.8

Marking

Marking

Environmental Compliance

All KEMET AC Line Filters are RoHS Compliant.

RoHS Compliant

Table 1 – Ratings & Part Number Reference

(1) To complete KEMET part number, insert V for vertical core type or H for horizontal core type.

SSB11H-R

Part Number

Rated Current AC

(A)

Inductance

(mH) Minimum

DC Resistance/Line

(Ω) Maximum

Temperature Rise

(K) Maximum

Weight (g)

Approximate

SSB11(1)-R13090

1.3

9.0

0.38

60

11.0

SSB11(1)-R17043

1.7

4.3

0.18

40

11.0
