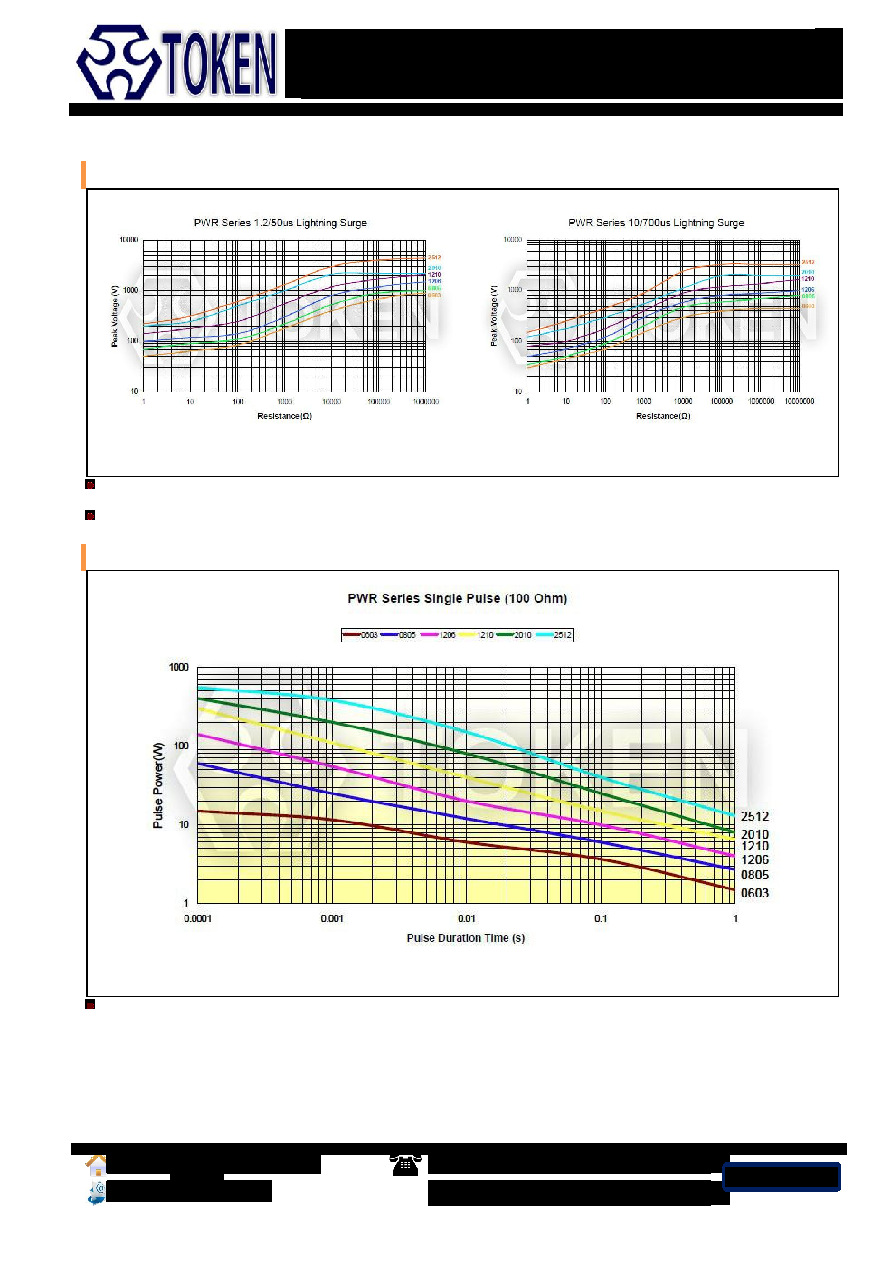

Lightning Surge of Pulse Withstanding Chip Resistor (PWR)

1.2/50µs Lightning Surge Chip Resistor (PWR)

10/700µs Lightning Surge Chip Resistor (PWR)

Note: Lightning Surge of Pulse Withstanding Chip Resistors are tested in accordance with IEC 60 115-1 using both 10/700μs

and 1.2/50μs pulse shapes.

The limit of acceptance is a shift in resistance of less than 1% from the initial value.

Pulse withstanding capacity of Pulse Withstanding Chip Resistor (PWR)

Pulse withstanding capacity of Chip Resistor (PWR)

Note: The single impulse graph is the result of 50 impulses of rectangular shape applied at one-minute intervals.

The power applied was subject to the restrictions of the maximum permissible impulse voltage graph shown.

The limit of acceptance was a shift in resistance of less than 1% from the initial value.
