EMIF02-USB01 datasheet(1/6 Pages) STMICROELECTRONICS

부품명	EMIF02-USB01

상세설명	2 LINES EMI FILTER INCLUDING ESD PROTECTION

PDF	6 Pages

Scroll/Zoom	100%

제조업체	STMICROELECTRONICS [STMicroelectronics]

홈페이지	http://www.st.com

Logo

1 / 6 page

1/6

EMIF02-USB01

®

January 2003 - Ed: 5

IEC61000-4-2 level 4

15kV

(air discharge)

8 kV

(contact discharge)

on input & output pins.

COMPLIES WITH THE FOLLOWING STANDARDS :

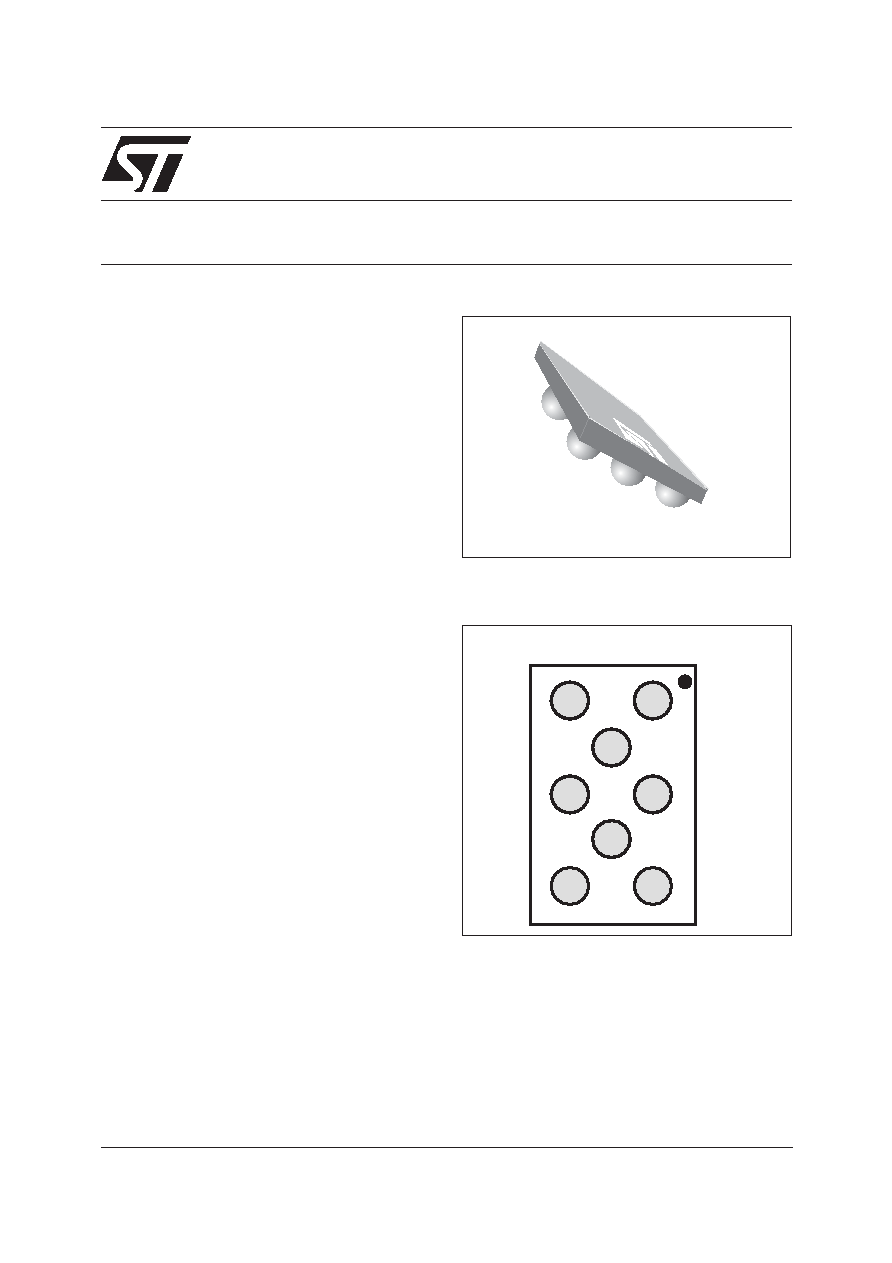

Flip Chip package

32

1

A

B

C

D

E

PIN CONFIGURATION

s

2 lines low-pass-filter + 2 lines ESD protection

s

High efficiency in EMI filtering

s

Very low PCB space consuming: 2.5 mm

2

s

Very thin package: 0.65 mm

s

High efficiency in ESD suppression

(IEC61000-4-2 level 4)

s

High reliability offered by monolithic integration

s

High reducing of parasitic elements through

integration & wafer level packaging.

BENEFITS

2 LINES EMI FILTER

INCLUDING ESD PROTECTION

IPADTM

s

ESD protection and EMI filtering for USB port.

MAIN APPLICATION

The EMIF02-USB01 is a highly integrated array

designed to suppress EMI / RFI noise for USB port

filtering.

The EMIF02-USB01 flip-chip packaging means

the package size is equal to the die size. That's

why EMIF02-USB01 is a very small device.

Additionally, this filter includes an ESD protection

circuitry which prevents the protected device from

destruction when subjected to ESD surges up to

15 kV.

DESCRIPTION
