Preliminary Data Sheet
AC101L
8/9/04
B roa dcom Co rpo rat ion
Document
AC101L-DS06-R
10BASE-T MII Receive System Timing
Page 35

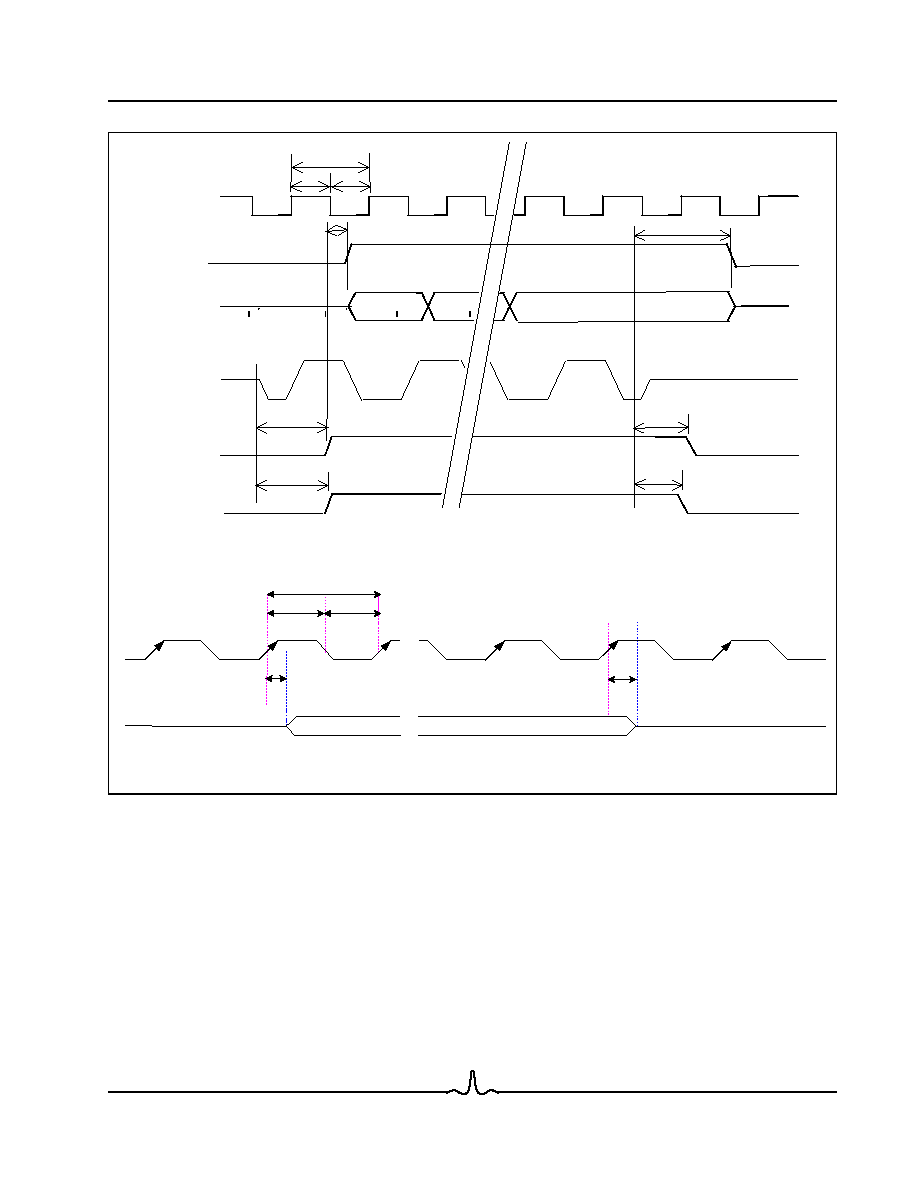

Figure 8: 10BASE-T Receive Timing
tpLH=Output delay
tpLH10
RX_CLK
RXD[3:0]; RXDV
25Mhz
tpHL10
tpHL=invalid
Valid Data
tCK
tCKH
tCKL
CRS
RX_CLK
RXDV
RXD[3:0]
RXER
RXDV
COL
tCK
tCKH
tCKL
tRCSD
tRDVA
tRCSA
tRCLA
tRCLD
Start of
Packet
End of
Packet
tRDVD
RXIP/N
SOP
EOP
