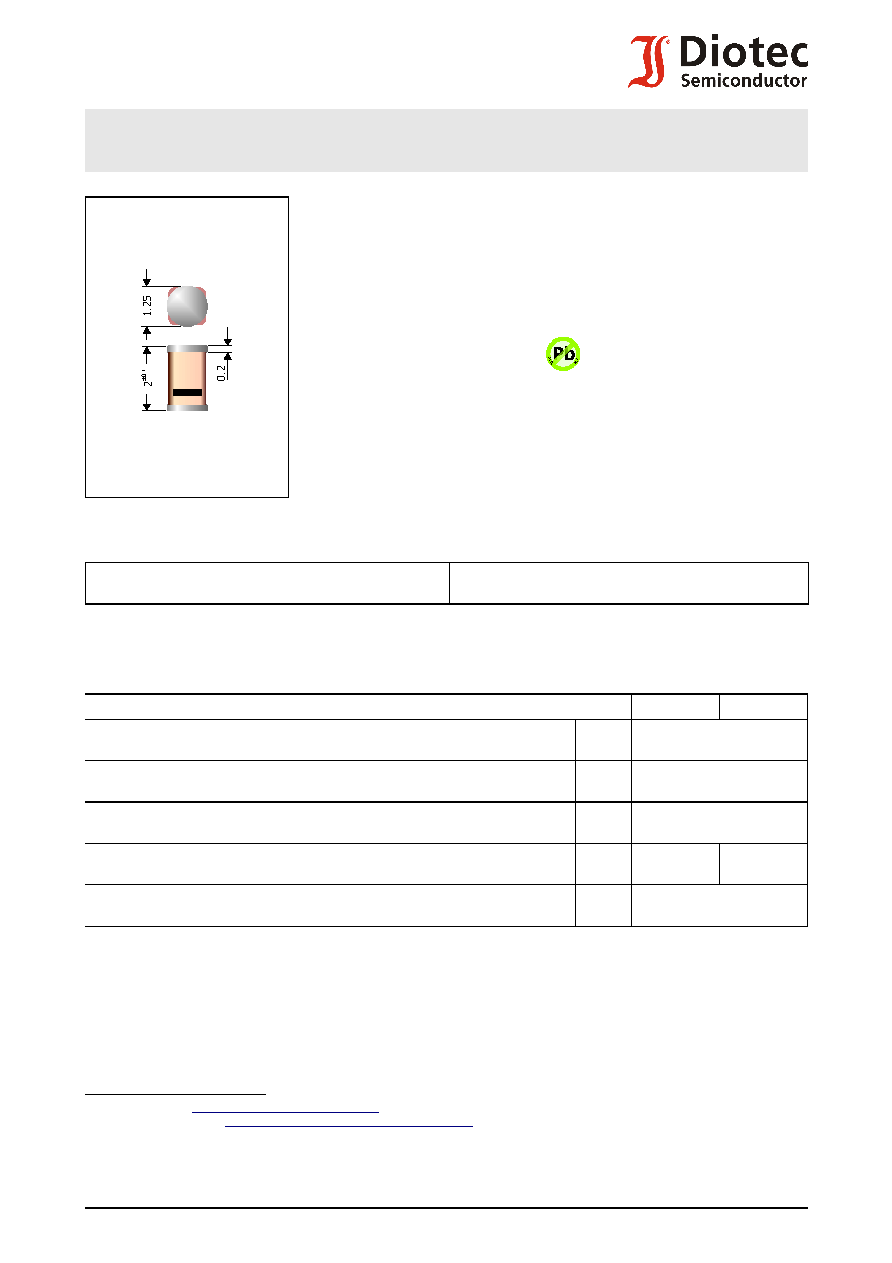

1 / 2 page

MCL103B ... MCL103C

SMD Small Signal Schottky Diodes

SMD Kleinsignal-Schottky-Dioden

IFAV

= 350 mA

VF1

< 0.37 V

Tjmax = 125°C

VRRM = 20...30 V

IFSM = 15 A

trr

~ 1 ns

Version 2018-01-31

~ SOD-106 Glass

Quadro MicroMelf

Dimensions - Maße [mm]

Typical Applications

Signal processing,

High-speed switching

Commercial grade 1)

Typische Anwendungen

Signalverarbeitung,

Schnelles Schalten

Standardausführung 1)

Features

Very high switching speed

Low junction capacitance

Low leakage current

Compliant to RoHS, REACH,

Conflict Minerals 1)

Besonderheiten

Extrem schnelles Schalten

Niedrige Sperrschicht-Kapazität

Niedriger Sperrstrom

Konform zu RoHS, REACH,

Konfliktmineralien 1)

Mechanical Data 1)

Mechanische Daten 1)

Taped and reeled

3000 / 7“

Gegurtet auf Rolle

Weight approx.

0.01 g

Gewicht ca.

Solder & assembly conditions

260°C/10s

Löt- und Einbaubedingungen

MSL = 1

These diodes are available in alternative case outlines

Diese Dioden sind auch in alternativen Gehäusen lieferbar

MiniMelf (SOD-80C)

SOD-123F

=

LL103B

LL103C

= SD103AW SD103BW SD103CW

Maximum ratings 2)

Grenzwerte 2)

MCL103B

MCL103C

Power dissipation

Verlustleistung

Ptot

400 mW 3)

Max. average forward current

Dauergrenzstrom

IFAV

350 mA 3)

Non repetitive peak forward surge current

Stoßstrom-Grenzwert

tp ≤ 1 µs

IFSM

15 A

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

VRRM

30

20

Junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Tj

TS

-55...+125°C

-55...+150°C

1

Please note the detailed information on our website or at the beginning of the data book

Bitte beachten Sie die detaillierten Hinweise auf unserer Internetseite bzw. am Anfang des Datenbuches

2

TA = 25°C unless otherwise specified

TA = 25°C wenn nicht anders angegeben

3

Mounted with 3 mm2 copper pads at each terminal

Montage mit 3 mm2 Kupferbelag (Lötpad) an jedem Anschluss

http://www.diotec.com/

1

Pb

RoHS
