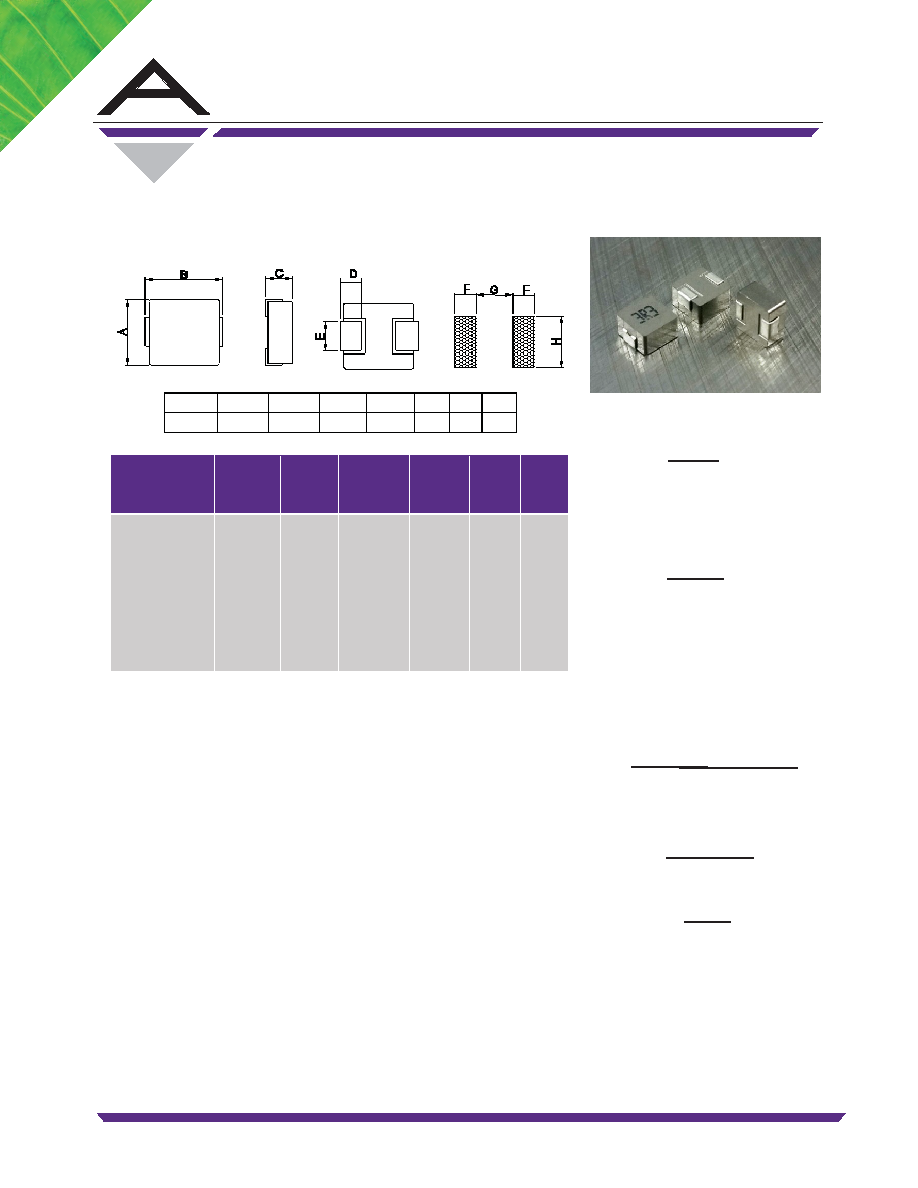

SMD Shielded Flat Wire Power Choke

15

ALLIED COMPONENTS INTERNATIONAL

949-356-1780

www.alliedcomponents.com

RoHS

06/30/2017

Features

•Magnetically Shielded Construction

Electrical

Inductance Range: 0.22µH to 10µH

Tolerance: 20% over entire range

Operating Temp: -55ºC ~ +125ºC

Pre-Heat: 160ºC ±10°C

Test Equipment

(L): HP4284A LCR meter

•Ultra High Saturation Current up to 12A

Resistance to Soldering Heat

Solder Heat Resistance: 260ºC ± 5ºC for 10±1 sec.

DCR: Milli-ohm meter

Test Frequency: 100KHz, 0.25V

•Low DC Resistance

•Expanded operating temp range

Temp: 85°C ± 2°C

•Suitable for pick and place

Physical

Packaging: 3000pcs per 13 inch reel

Marking: EIA Inductance Code

All specifications subject to change without notice.

Allied

Part

Number

Inductance

(µH)

Irms

(A)

Test

Frequency

(KHz, 0.25V)

Tolerance

(±%)

DCR

(mΩ)

Max

9.5

7.5

7.0

6.0

5.0

4.5

3.3

2.8

2.4

1.6

Isat

(A)

Typ

Storage Temp: -55ºC ~ +125ºC

Irms: Current at which The Temperature would

Rise by Approximately 40°C

Isat: Current at which The Inductance will Drop

by Approximately 30%

Under no condition should the part exceed 125°C

PCSFW420

PCSFW420-R22M

PCSFW420-R47M

PCSFW420-R68M

PCSFW420-1R0M

PCSFW420-1R5M

PCSFW420-2R2M

PCSFW420-3R3M

PCSFW420-4R7M

PCSFW420-6R8M

PCSFW420-100M

0.22

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10

20

100

6.6

14.0

18.0

27.0

46.0

58.0

87.0

105.0

175.0

282.0

12.5

9.5

9.0

7.0

6.0

5.0

4.0

3.0

2.5

2.2

100

A

B

C

D

E

F

G

H

4.2±0.25

1.8±0.2

0.8±0.3

2.5

4.4±0.35

2.0±0.3

1.5

2.2

Dimensions: (mm)
