W-CDMA ACPR PERFORMANCE

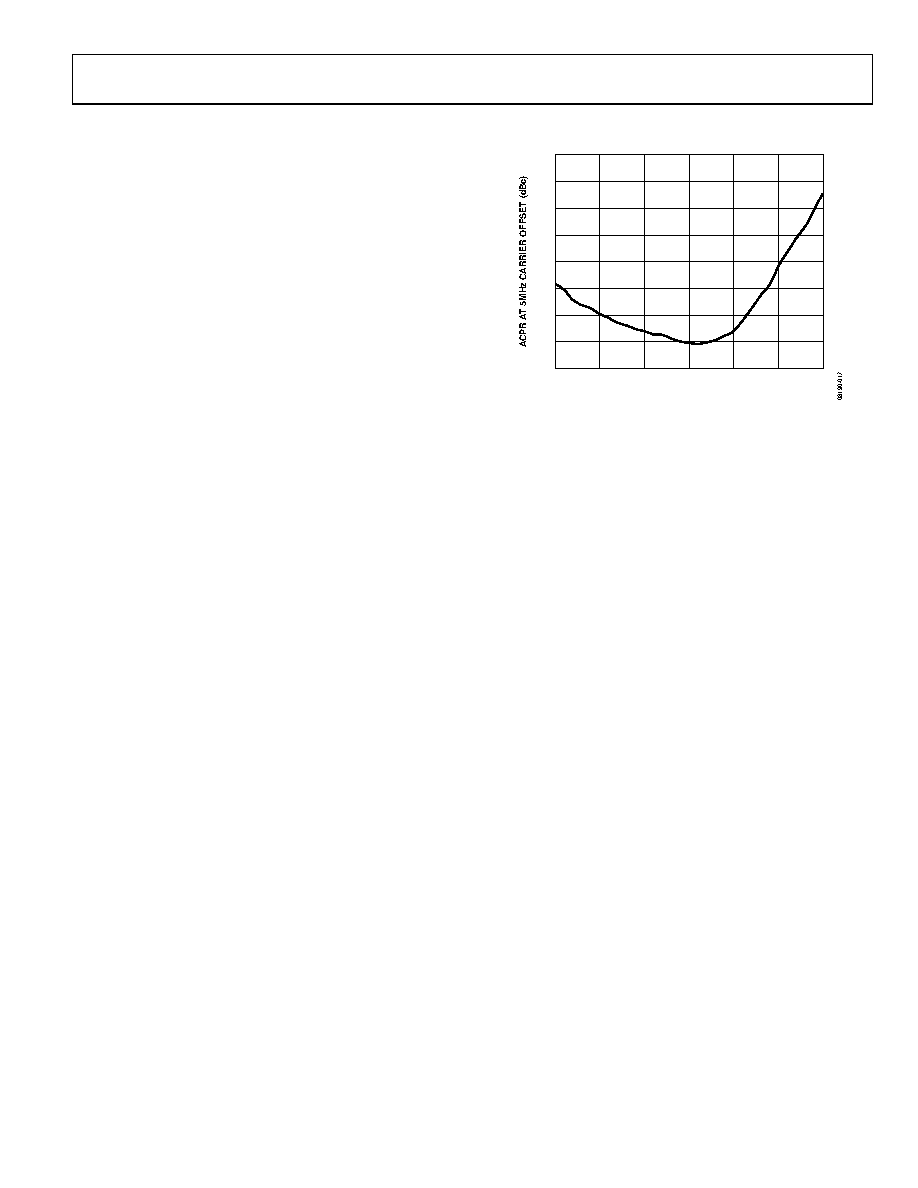

Figure 18 shows a plot of adjacent channel power ratio (ACPR)

W-CDMA carrier (Test Model 1-64) at 2140 MHz. This signal is

generated by a very low ACPR source. ACPR is measured at the

output by a high dynamic range spectrum analyzer, which

incorporates an instrument noise correction function.

The ADL5602 achieves an ACPR of −75 dBc at −5 dBm output,

at which point device noise and not distortion is beginning to

dominate the power in the adjacent channels. At an output

power of +5 dBm, ACPR is still very low at −61 dBc, making

the device particularly suitable for PA driver applications.

–40

–45

–50

–55

–60

–65

–70

–75

–80

–20

–15

–10

–5

0

5

10

2140 MHz Evaluation Board
