OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-187-BA

6°

0°

0.70

0.55

0.40

5

10

1

6

0.50 BSC

0.30

0.15

1.10 MAX

3.10

3.00

2.90

COPLANARITY

0.10

0.23

0.13

3.10

3.00

2.90

5.15

4.90

4.65

PIN 1

IDENTIFIER

15° MAX

0.95

0.85

0.75

0.15

0.05

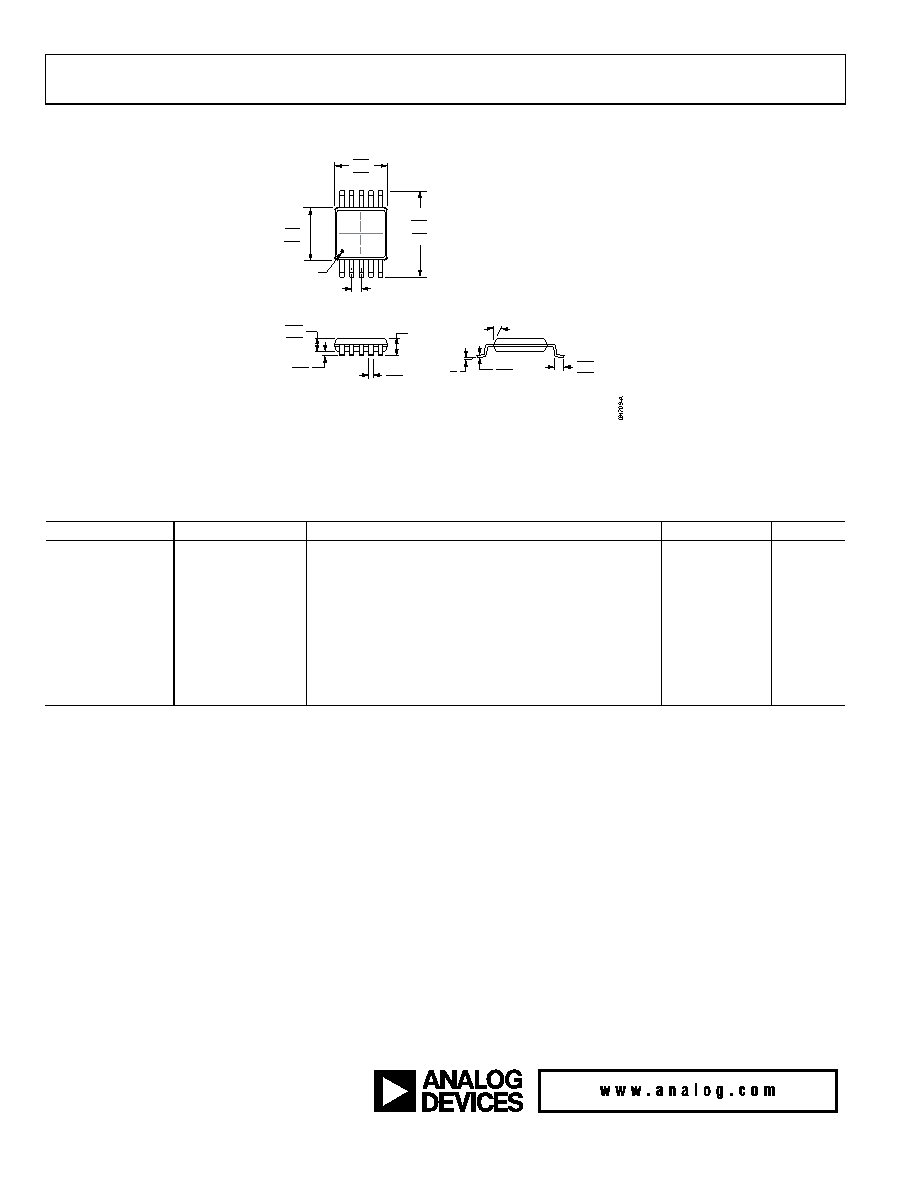

Figure 33. 10-Lead Mini Small Outline Package [MSOP]

(RM-10)

Dimensions shown in millimeters

ORDERING GUIDE

Temperature Range

Package Description

Package Option

Branding

AD8213YRMZ

−40°C to +125°C

10-Lead Mini Small Outline Package [MSOP]

RM-10

H0U

AD8213YRMZ-RL

−40°C to +125°C

10-Lead Mini Small Outline Package [MSOP], 13”Tape and Reel

RM-10

H0U

AD8213YRMZ-R7

−40°C to +125°C

10-Lead Mini Small Outline Package [MSOP], 7”Tape and Reel

RM-10

H0U

AD8213WYRMZ

−40°C to +125°C

10-Lead Mini Small Outline Package [MSOP]

RM-10

Y2B

AD8213WYRMZ-RL

−40°C to +125°C

10-Lead Mini Small Outline Package [MSOP], 13”Tape and Reel

RM-10

Y2B

AD8213WYRMZ-R7

−40°C to +125°C

10-Lead Mini Small Outline Package [MSOP], 7”Tape and Reel

RM-10

Y2B

AD8213WHRMZ

−40°C to +150°C

10-Lead Mini Small Outline Package [MSOP]

RM-10

Y5C

AD8213WHRMZ-RL

−40°C to +150°C

10-Lead Mini Small Outline Package [MSOP], 13”Tape and Reel

RM-10

Y5C

AD8213WHRMZ-R7

−40°C to +150°C

10-Lead Mini Small Outline Package [MSOP], 7”Tape and Reel

RM-10

Y5C

AUTOMOTIVE PRODUCTS

The AD8213W models are available with controlled manufacturing to support the quality and reliability requirements of automotive

applications. Note that these automotive models may have specifications that differ from the commercial models; therefore, designers

should review the Specifications section of this data sheet carefully. Only the automotive grade products shown are available for use in

automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to

obtain the specific Automotive Reliability reports for these models.
