AD8364
Data Sheet
Rev. C | Page 16 of 44
10
100
1000
10000
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
–20dB
–40dB
0dB
RF OFF

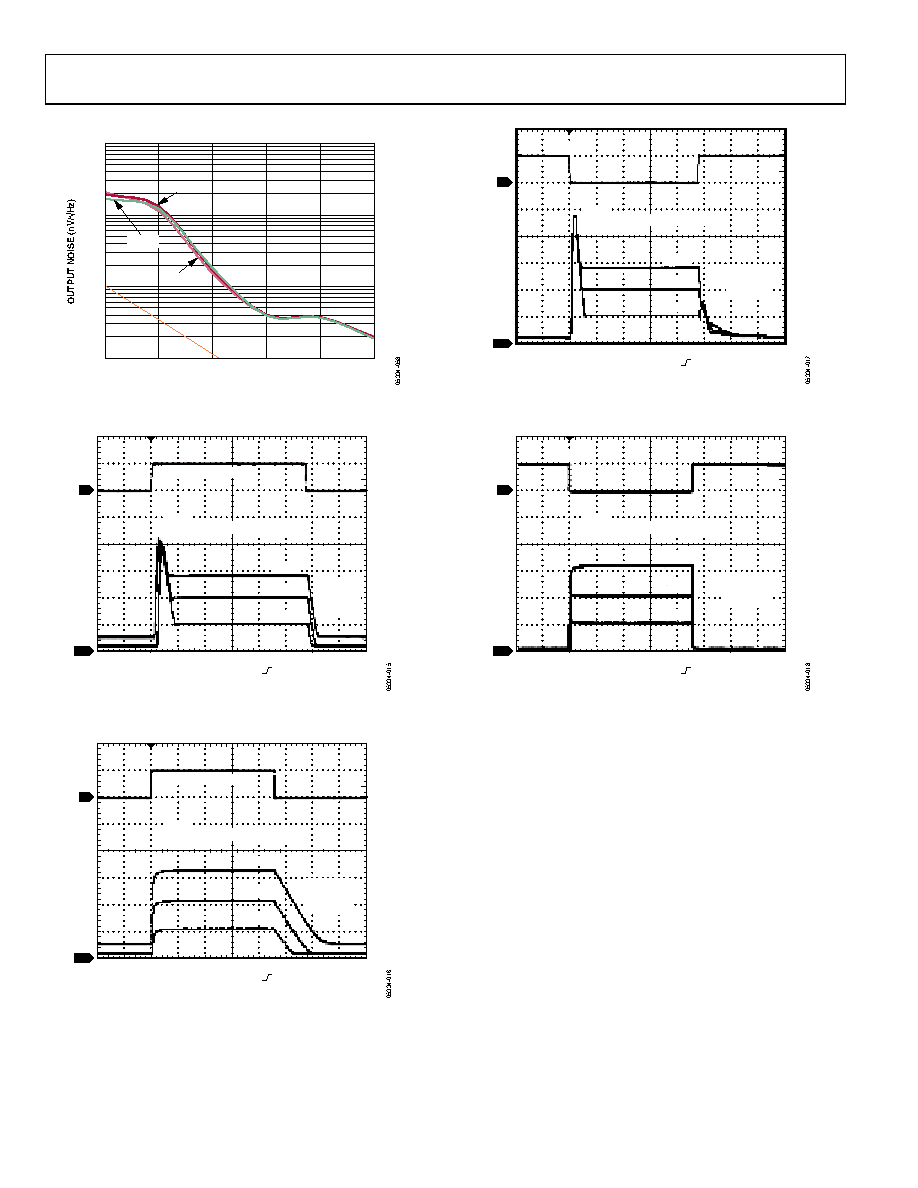

Figure 43. Noise Spectral Density of OUT[A, B]; CLP[A, B] = 0.1 µF,
Frequency = 2140 MHz
REF2 1.0V 2.0
µs
CH2 5.0V
CH4 1.0V
M2.0
µs 1.25GS/s
A CH2
2.1V
800ps/pt
2
B2
RF BURST ENABLE
OUTA
CARRIER FREQUENCY 450MHz,
CLPA = OPEN
0dBm
–20dBm
–40dBm
VDD = 5V
VA = 5V
VB = 0V
Figure 44. Output Response to RF Burst Input for Various RF Input Levels,
Carrier Frequency 450 MHz, CLPA = Open
REF2 1.0V 2.0ms
CH2 5.0V
CH4 1.0V
M2.0
µs 1.25MS/s
A CH2
2.1V
800ns/pt
2
B2
RF BURST ENABLE
OUTA
CARRIER FREQUENCY 450MHz,
CLPA = 0.1
µF
0dBm
–20dBm
–40dBm
VDD = 5V
VA = 5V
VB = 0V
Figure 45. Output Response to RF Burst Input for Various RF Input Levels,
Carrier Frequency 450 MHz, CLPA = 0.1 µF
REF2 1.0V 4.0
µs
CH2 5.0V
CH4 1.0V
M4.0
µs 625MS/s
A CH2
2.1V
1.6ns/pt
2
B2
OUTA
CARRIER FREQUENCY 450MHz,
CLPA = OPEN
0dBm
–20dBm
–40dBm
PWDN
VDD = 5V
VA = 5V
VB = 0V
Figure 46. Output Response Using Power-Down Mode for Various RF Input
Levels, Carrier Frequency 450 MHz, CLPA = Open
REF2 1.0V 2.0
µs
CH2 5.0V
CH4 1.0V
M2.0ms 1.25MS/s
A CH2
1.7V
800ns/pt
2
B2
OUTA
CARRIER FREQUENCY 450MHz,
CLPA = 0.1
µF
0dBm
–20dBm
–40dBm
PWDN
VDD = 5V
VA = 5V
VB = 0V
Figure 47. Output Response Using Power-Down Mode for Various RF Input
Levels, Carrier Frequency 450 MHz, CLPA = 0.1 µF, CHPA = 10 nF
