A3GA-99C2-R 데이터시트(PDF) 12 Page - Omron Electronics LLC

부품명 A3GA-99C2-R
상세설명  Lighted and non-lighted/convex versions
PDF  18 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  OMRON [Omron Electronics LLC]
홈페이지  http://www.omron.com/index3.html
Logo OMRON - Omron Electronics LLC

A3GA-99C2-R 데이터시트(HTML) 12 Page - Omron Electronics LLC

Back Button A3GA-99C2-R Datasheet HTML 8Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 9Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 10Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 11Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 12Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 13Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 14Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 15Page - Omron Electronics LLC A3GA-99C2-R Datasheet HTML 16Page - Omron Electronics LLC Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 18 page
background image
12
A3G
A3G

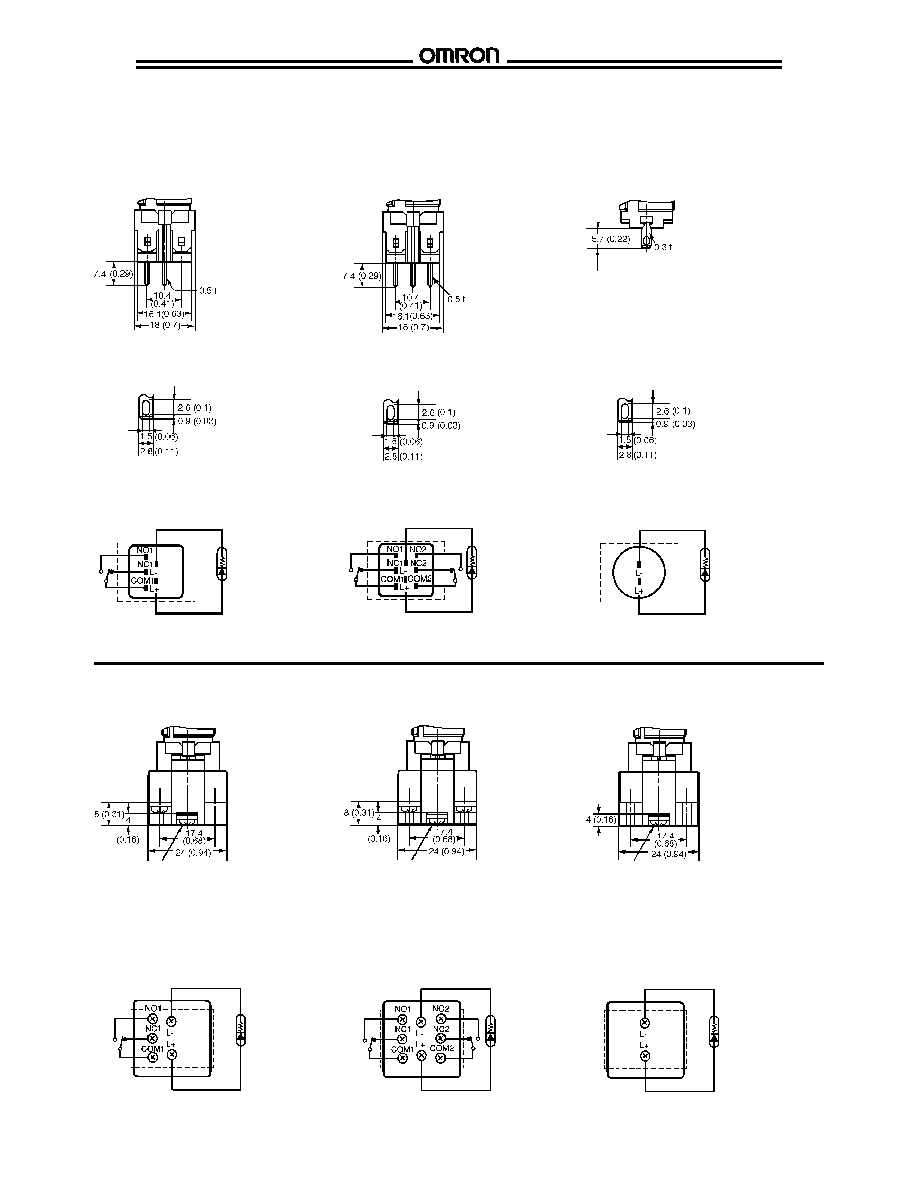

s SOLDER TERMINALS
SPDT switch
DPDT switch
Indicator
Lighted type
Lighted type
Display lamp
Dimensions of terminal holes
Dimensions of terminal holes
Dimensions of terminal holes
Terminal arrangement
Terminal arrangement
Terminal arrangement
(bottom view)
(bottom view)
(bottom view)
s SCREW TERMINALS
Terminal arrangement
Terminal arrangement
Terminal arrangement
(bottom view)
(bottom view)
(bottom view)
SPDT switch
DPDT switch
Indicator
Five, M3 x 6 Phillips
Eight, M3 x 6 Phillips
Two, M3 x 6 Phillips
screws with washers
screws with washers
screws with washers
Unit: mm (inch)
