Data Sheet
AD8210
Rev. E | Page 7 of 15
400ns/DIV
500mV/DIV
100mV/DIV

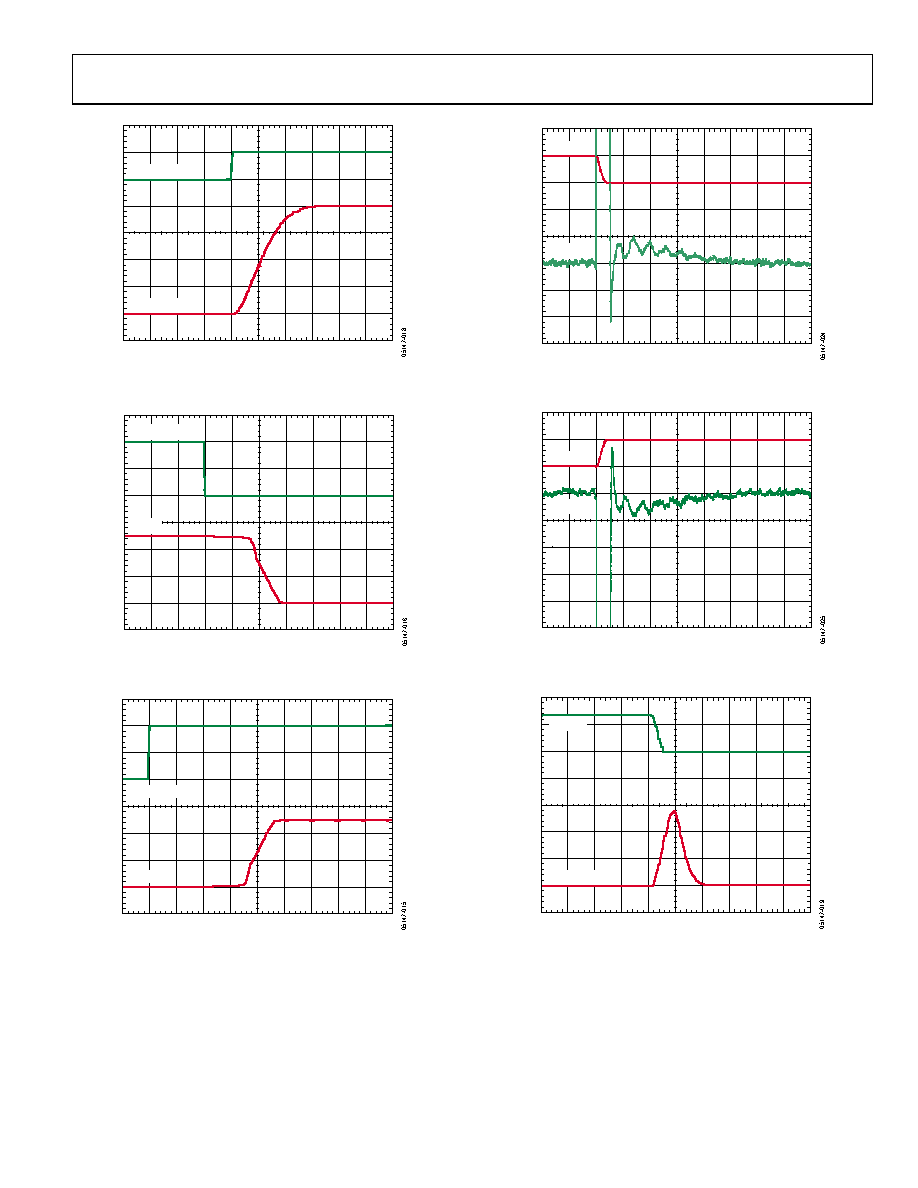

Figure 10. Rise Time
1µs/DIV
2V/DIV
200mV/DIV
Figure 11. Differential Overload Recovery (Falling)
200mV/DIV
2V/DIV
1µs/DIV
Figure 12. Differential Overload Recovery (Rising)
4µs/DIV
4V/DIV
0.02%/DIV
Figure 13. Settling Time (Falling)
4µs/DIV
4V/DIV
0.02%/DIV
Figure 14. Settling Time (Rising)
