Data Sheet
ADA4303-2
Rev. A | Page 5 of 12

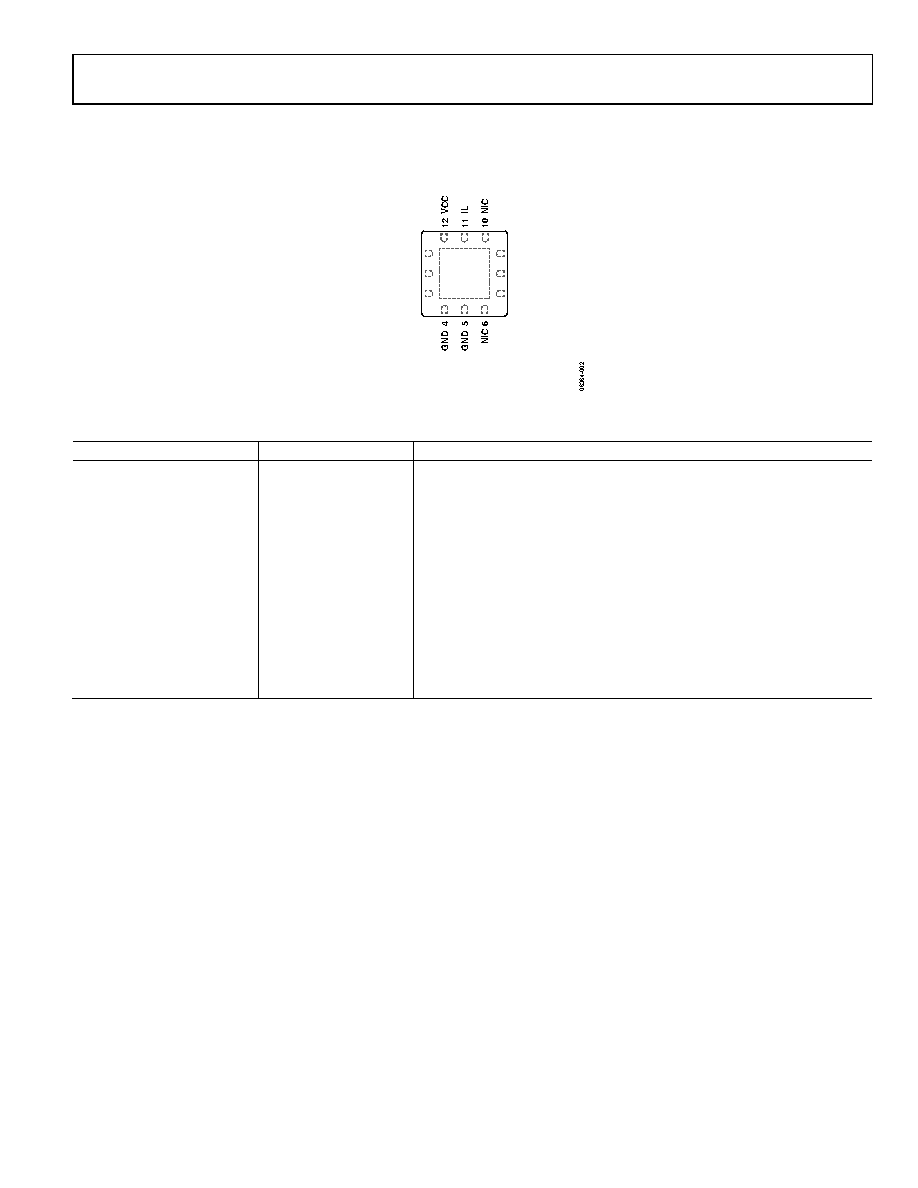

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. NIC = NO INTERNAL CONNECTION.
2. CONNECT THE EPAD TO THE GROUND PLANE.
9
8
7
1
2
3
VO1
VO2
GND
VCC
VIN
GND
ADA4303-2
TOP VIEW
(Not to Scale)
Figure 4. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
VCC
Supply Pin.
2
VIN
Input.
3
GND
Ground.
4
GND
Ground.
5
GND
Ground.
6
NIC
Not Internal Connection.
7
GND
Ground.
8
VO2
Output 2.
9
VO1
Output 1.
10
NC
No Connection.
11
IL
Bias Pin.
12
VCC
Supply Pin.
EPAD
Exposed Pad. Connect the EPAD to the Ground Plane.
