O2-E2 Performance Data

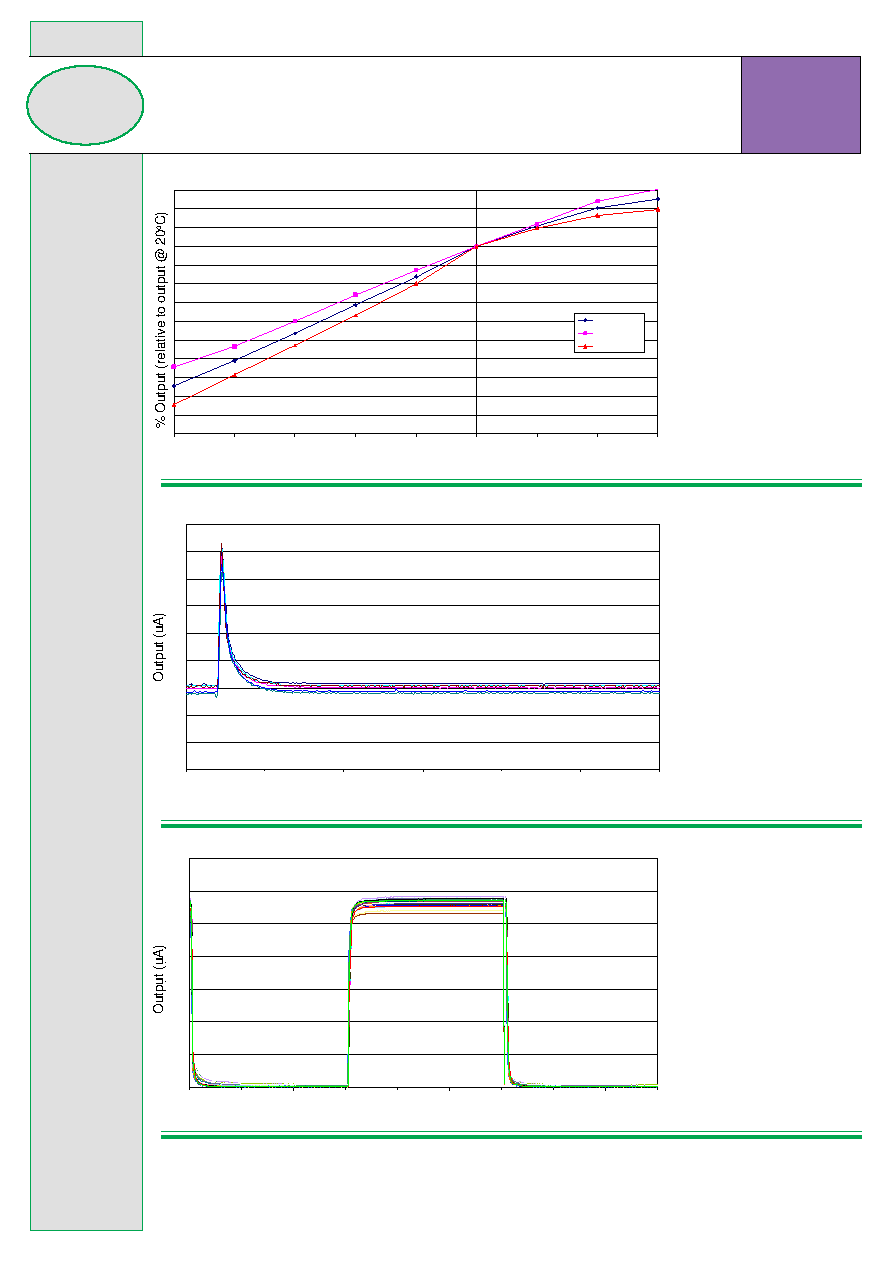

Figure 2 Sensitivity Temperature Dependence

Figure 3 10kPa Pressure Step Performance

In the interest of continued product improvement, we reserve the right to change design features and specifications without prior notification. The data contained

in this document is for guidance only. Alphasense Ltd accepts no liability for any consequential losses, injury or damage resulting from the use of this document

or the information contained within it.

( ©ALPHASENSE LTD ) Doc. Ref. TDS/O2E2/ Issue 12

Figure 2 shows the variation

in sensitivity caused by

changes in temperature.

See Application Note:

AAN 110 on our website

Figure 4 shows the time taken

for a typical O2-E2 sensor to

reach 90% of its maximum

output. This is termed the t

90

response time and for these

sensors is less than 10

seconds.

For further information on the performance of this sensor, on other sensors in the range or any other subject, please

Figure 4 Response Profile

Step changes in pressure can

cause a temporary signal

transient. Positive pressure

gives an output signal

increase whilst negative

pressure causes the output

signal to decrease.
