FIRETRAP
PLEASE READ BEFORE ATTEMPTING INSTALLATION:
This system is supplied complete with cable in order to connect to the Clay Trap Release.
Warning : Not all Clay Traps have the same wiring convention!
The system is pre-wired (as diagram below) to operate with most trap releases, before connecting, CHECK
YOUR CONNECTIONS. (using a voltmeter) if you are in any doubt, DO NOT CONNECT THE SYSTEM, consult a
qualified Electrician. Although the system operates on 12-30V DC damage may occur to the receiver unit if
wrong connections are made.
Installation Notes
An ideal installation would be to firmly fix the FIRETRAP-RX approx. 2 metres from the ground, in direct sight
of the transmitter. Lowering the height or having obstacles between transmitter and receiver will reduce
range!
Connecting Power to the Receiver unit
The receiver unit requires the following connections to operate:
- 12V supply (Brown wire as supplied)
- OV Supply (Yell/GRN wire as supplied)
When the Receiver unit has power connected the Power LED will illuminate. This must be ‘on’ for the system
to operate.
Note:
If you are pairing multiple transmitter i.e. If you have purchased receivers and transmitters separately. Follow
the procedure detailed on page 4 to configure your chosen system. FIRETRAP-S1 systems are sold pre-paired.
Relay 1
Relay 2
Relay 3
0V
12V
NO
NC
COM
LRN LED
BUZZER
REED SWITCH
LRN SWITCH
PWR LED
ACK LED
JUMPER LINKS
ANTENNA

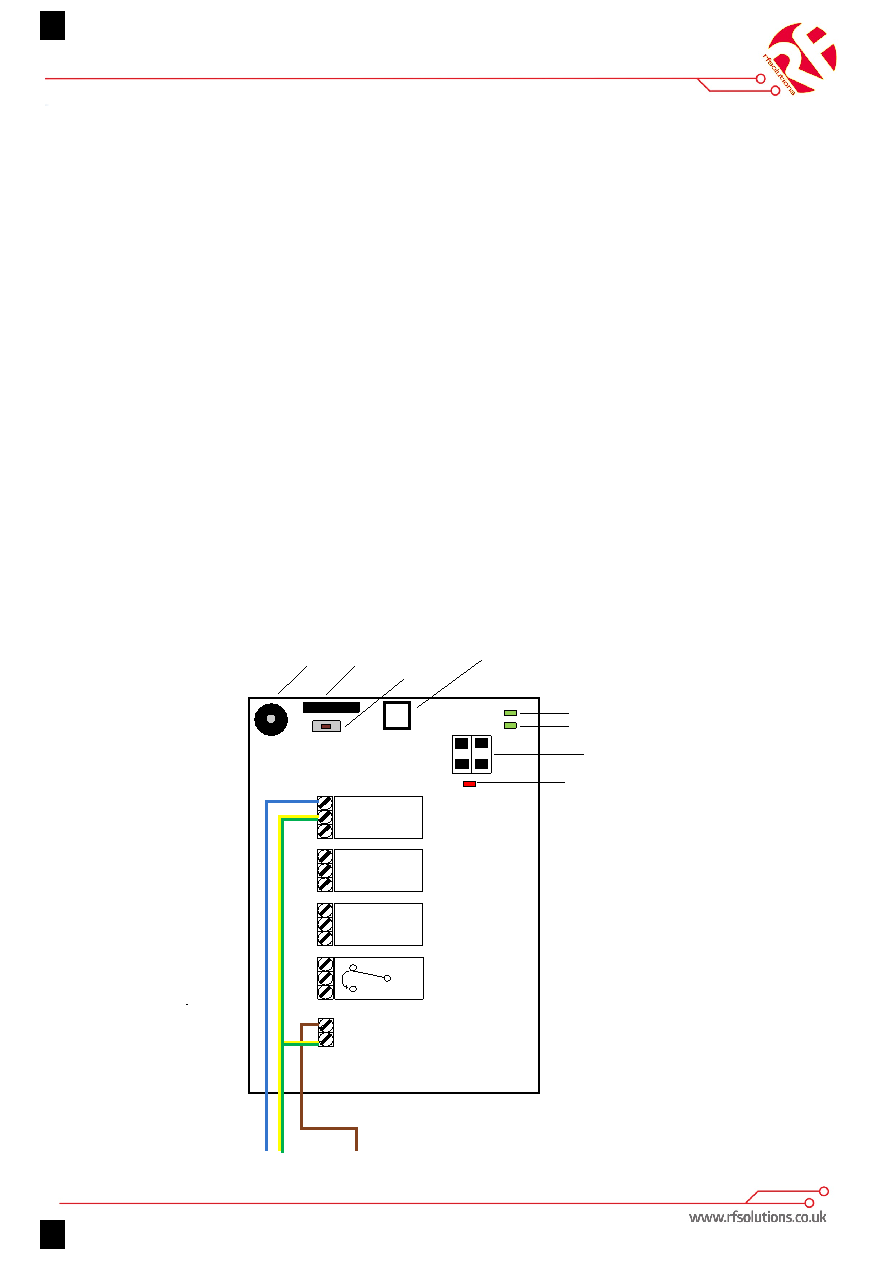

FIRETRAP Receiver Wiring
This diagram shows the standard
wiring configuration and may be
adapted to fit Traps requiring other
switching types.
