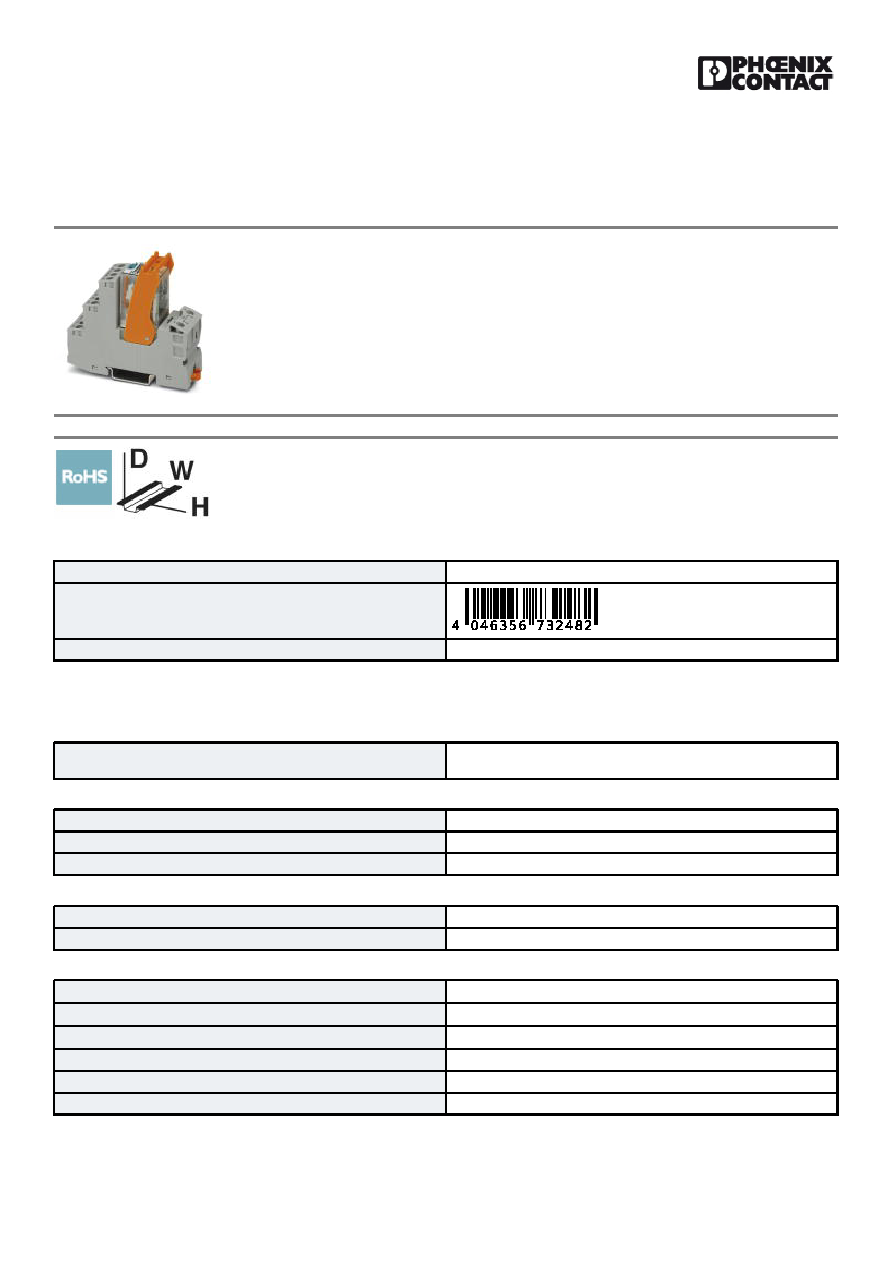

Relay Module - RIF-2-RSC-LDP-24DC/4X21 - 2903320

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, and

retaining bracket. Contact type: 4 changeover contacts. Input voltage: 24 V DC

Key Commercial Data

Packing unit

10 STK

GTIN

4046356732482

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

27 mm

Height

89 mm

Depth

75 mm

Ambient conditions

Ambient temperature (operation)

-40 °C ... 60 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Coil side

Nominal input voltage UN

24 V DC

Input voltage range in reference to UN

see diagram

Typical input current at UN

42 mA

Typical response time

13 ms

Typical release time

14 ms

Coil voltage

24 V DC
