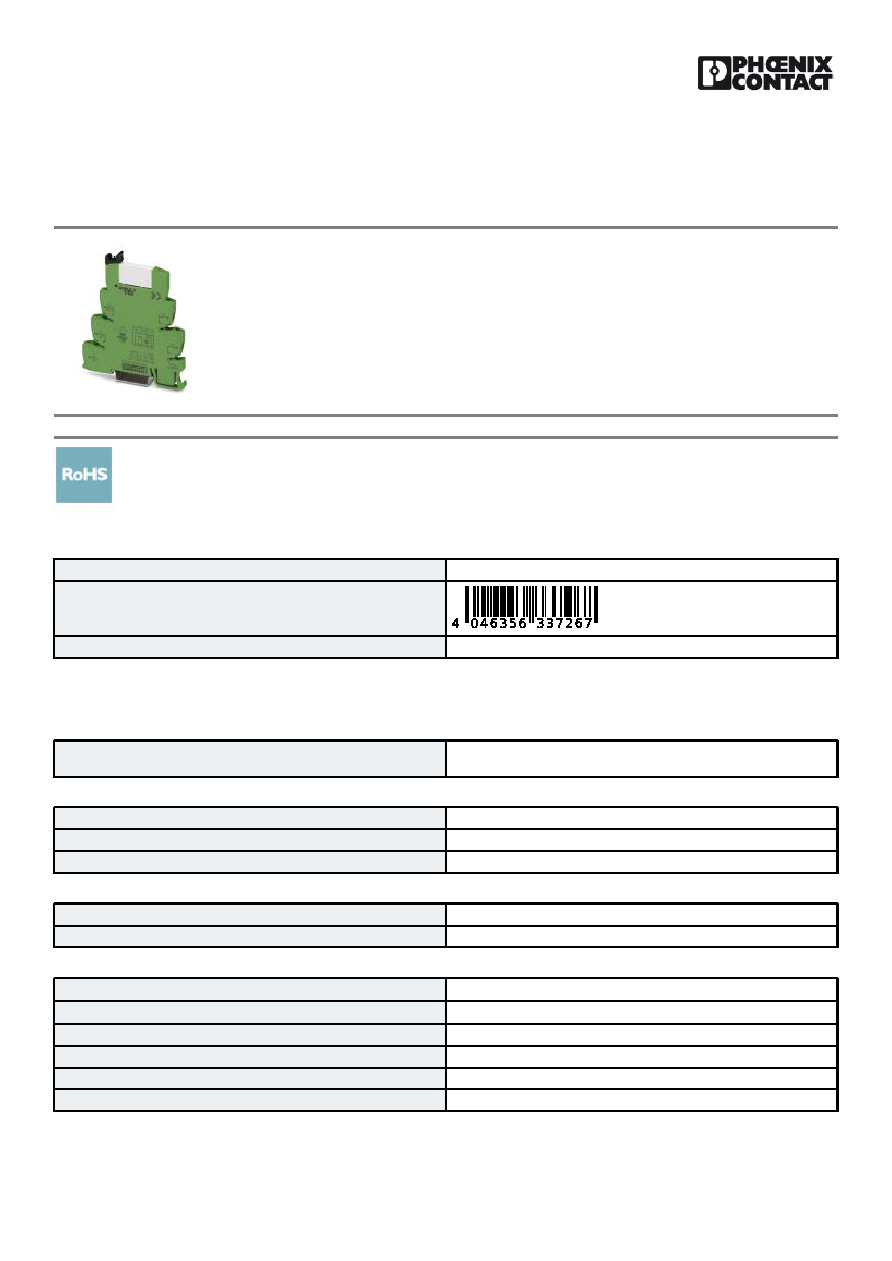

07/23/2018 Page 1 / 4

Relay Module - PLC-RSC-220DC/21AU - 2987286

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PLC-INTERFACE, consisting of PLC-BSC.../21 basic terminal block with screw connection and plug-in

miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 220 V

DC

Key Commercial Data

Packing unit

10 STK

GTIN

GTIN

4046356337267

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

6.2 mm

Height

80 mm

Depth

94 mm

Ambient conditions

Ambient temperature (operation)

-25 °C ... 55 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Coil side

Nominal input voltage UN

220 V DC

Typical input current at UN

3 mA

Typical response time

7 ms

Typical release time

15 ms

Coil voltage

60 V DC

Protective circuit

Reverse polarity protection Polarity protection diode
