Electrical Characteristics

Inductance

[Within]

(μH) ※1

Temperature

Rise Current

(A) ※3

Saturation Current

at 20℃(A) ※2

D.C.R. at 20℃

max(typ) (mΩ)

Part Number

4.80

252012CDMCCDS-R47MC

0.47 ± 20%

25.00

(21.00)

6.10

3.20

252012CDMCCDS-1R0MC

1.00 ± 20%

55.00

(46.00)

3.90

2.00

252012CDMCCDS-2R2MC

2.20 ± 20%

113 (94.00)

2.80

1.50

252012CDMCCDS-3R3MC

3.30 ± 20%

222 (185)

1.90

1.40

252012CDMCCDS-4R7MC

4.70 ± 20%

264 (220)

1.70

※ 1. Measuring frequency Inductance at 1MHz, 0. 1V.

※ 2. Saturation current: The actual value of D.C current when the inductance decreases to 70% of it’s initial value.

※ 3. Temperature rise current: The actual value of DC current when the coil temperature rise is △T=40°C

(Ta=25°C) Board conditions: FR4, Copper=70μm, four-layer PWB, t=1.6mm.

252012CDMCC/DS

SMD Power Inductor

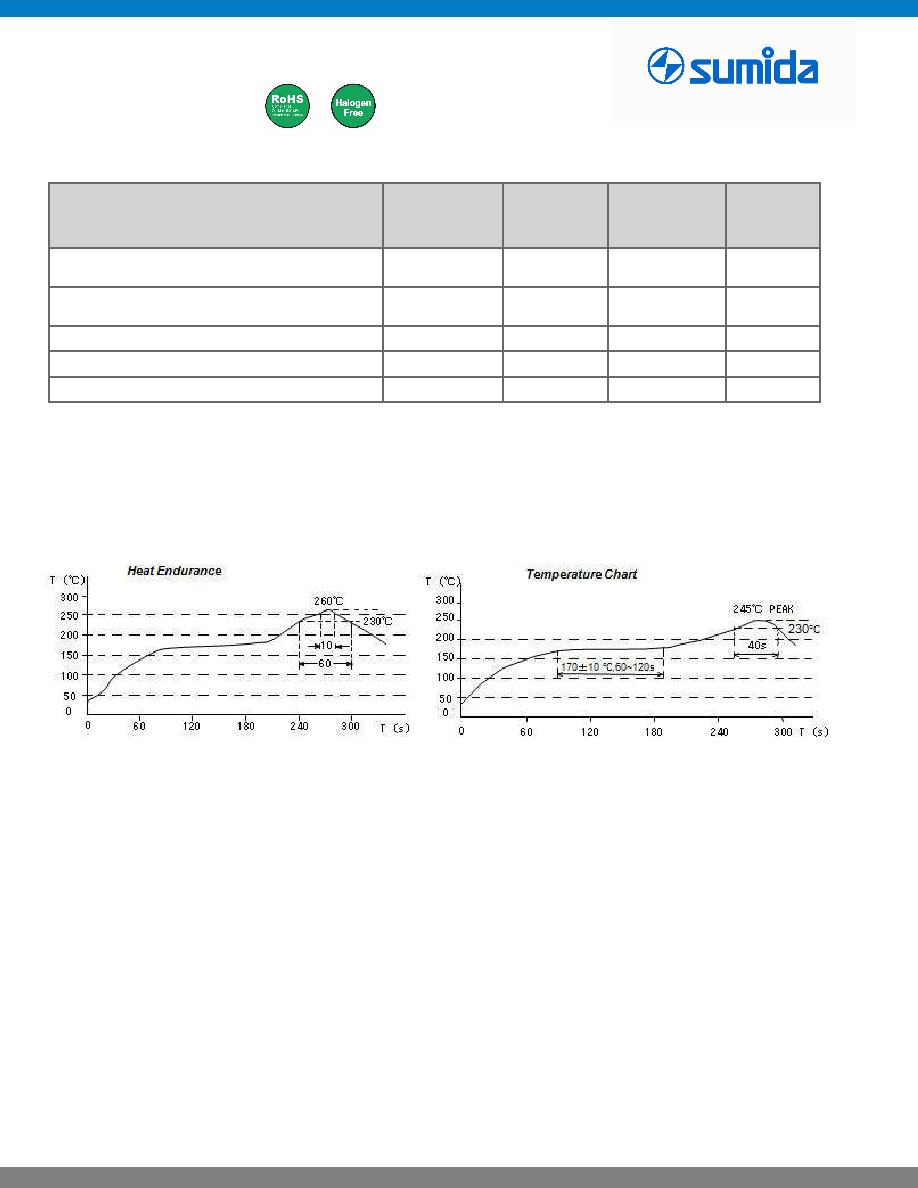

Solder Reflow Condition

Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
