SSM6322
Data Sheet
Rev. 0 | Page 10 of 20
1
0.1
0.01
0.0001
0.001
0.00001
0.01
0.1
1
VIN (VRMS)
RL = 16Ω
RL = 32Ω
RL = 600Ω

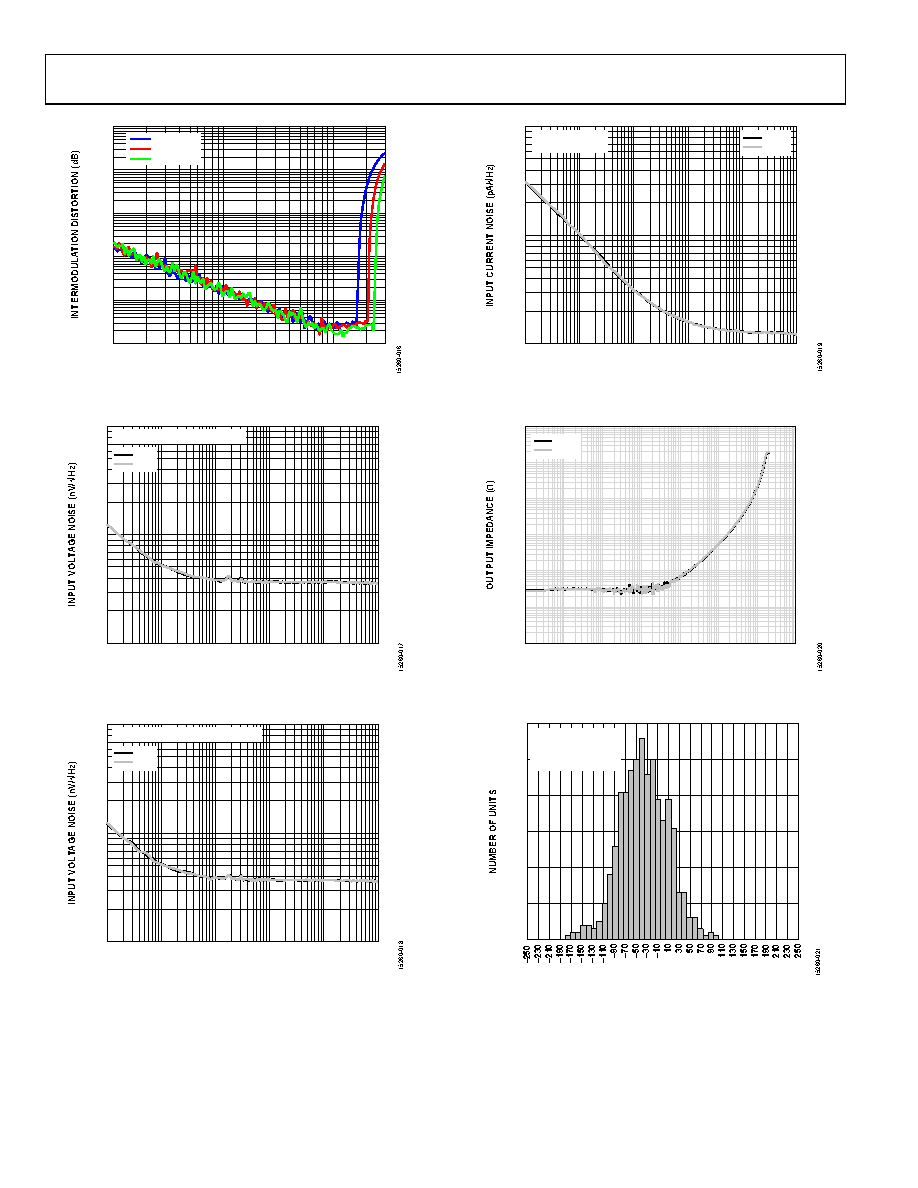

Figure 16. CCIF vs. Input Voltage (VIN), VSY = ±5 V
100
10
1
1
10
100
1k
10k
100k
FREQUENCY (Hz)
VSY = ±5V, VSD = 5V, AV = 10
CH1
CH2
Figure 17. Input Voltage Noise vs. Frequency, VSY = ±5 V
100
10
1
1
10
100
1k
10k
100k
FREQUENCY (Hz)
VSY = ±3.3V, VSD = 3.3V, AV = 10
CH1
CH2
Figure 18. Input Voltage Noise vs. Frequency, VSY = ±3.3 V
100
10
1
1
10
100
1k
10k
100k
FREQUENCY (Hz)
RS = 100kΩ
BUFFER AV = 1
±5V
±3.3V
Figure 19. Input Current Noise vs. Frequency
1k
0.01
0.1
1
10
100
0.001
10
100
1k
10k
100k
1M
10M
100M
FREQUENCY (Hz)
±5V
±3.3V
Figure 20. Enabled Output Impedance vs. Frequency
60
10
20
30
40
50
0
VOS (µV)
VSY = ±5V, TA = 25°C
600 CHANNELS
MEAN = 42µV
STDEV = 45µV
Figure 21. Input Offset Voltage (VOS) Distribution, VSY = ±5 V
