UNISONIC TECHNOLOGIES CO., LTD

LR2126

CMOS IC

1A FAST ULTRA LOW

DROPOUT LINEAR

REGULATOR

DESCRIPTION

The UTC LR2126 operate from a +2.5V ~ +6.0V input supply as

fast ultra low-dropout linear regulators. Wide output voltage range

options are available. The fast response characteristic to make

UTC LR2126 suitable for low voltage microprocessor application.

The low quiescent current operation and low dropout quality

caused by the CMOS process.

The

UTC

LR2126

has

ultra

low

dropout

voltage

300mV at 1A load current typically.

The ground pin current is typically 60uA at 1mA load current.

Output Voltage Precision: Multiple output voltage options are

available and ranging from 1.2V ~ 5.0V at room temperature with a

guaranteed accuracy of ±1.5%, and ±3.0% when varying line, load

and temperature.

FEATURES

* Ultra Low Dropout Voltage

* Low Ground Pin Current

* 0.04% Load Regulation

* The Guaranteed Output Current is 1A DC

* Output Voltage Accuracy ± 1.5%

* Low Output Capacitor Required

* Over temperature Protection And Over current Protection

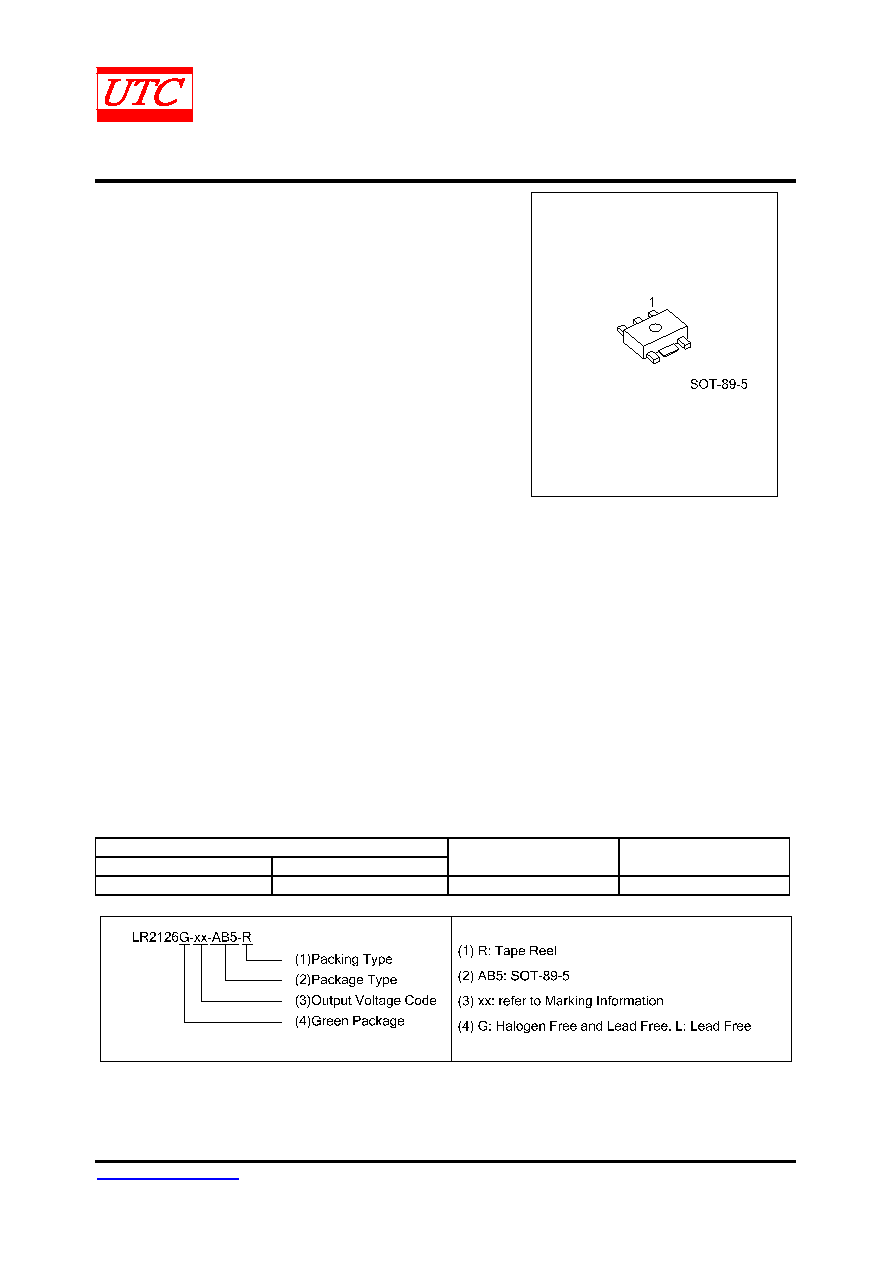

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

LR2126L-xx-AB5-R

LR2126G-xx-AB5-R

SOT-89-5

Tape Reel

www.unisonic.com.tw

1 of 7

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R502-A60.B
