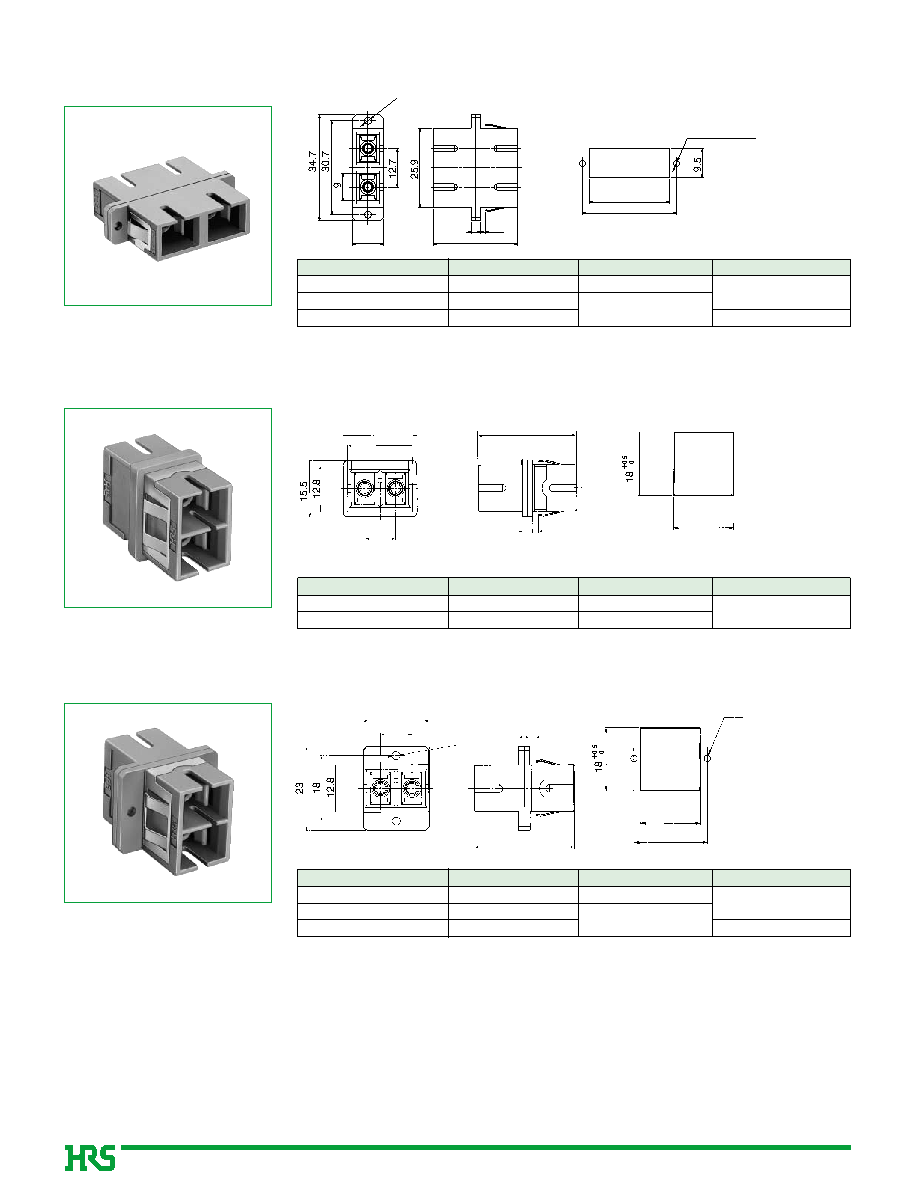

HSC-R1-B 데이터시트(PDF) 14 Page - Hirose Electric

부품명 HSC-R1-B
상세설명  SC Type Fiber Optic Connectors
PDF  21 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  HIROSE [Hirose Electric]
홈페이지  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

HSC-R1-B 데이터시트(HTML) 14 Page - Hirose Electric

Back Button HSC-R1-B Datasheet HTML 10Page - Hirose Electric HSC-R1-B Datasheet HTML 11Page - Hirose Electric HSC-R1-B Datasheet HTML 12Page - Hirose Electric HSC-R1-B Datasheet HTML 13Page - Hirose Electric HSC-R1-B Datasheet HTML 14Page - Hirose Electric HSC-R1-B Datasheet HTML 15Page - Hirose Electric HSC-R1-B Datasheet HTML 16Page - Hirose Electric HSC-R1-B Datasheet HTML 17Page - Hirose Electric HSC-R1-B Datasheet HTML 18Page - Hirose Electric Next Button
Zoom Inzoom in Zoom Outzoom out
 14 / 21 page
background image
Part Number
CL No.
Split sleeve
Color
HSCH-2A1(P)(51)
704-2066-2-51
Copper sleeve
Blue
HSCH-2A1-D(P)(02)
704-2117-1-02
Zirconia
Part Number
CL No.
Split sleeve
Color
HSCF-2A(P)(51)
704-2008-6-51
Copper sleeve
Blue
HSCF-2A-D(P)(06)
704-2040-9-06
Zirconia
HSCF-2A-D2(P)(06)
704-2112-8-06
Green
40
1.8
3
27.4
9.4
Ø2.3
26.2 +0.3
0
30.7±0.1
M2
×0.4 or
2.4
+0.2
0
sAdapters
qF type Snap-in and/or Screw Mounting
BPanel cut-out
BPanel cut-out
BPanel cut-out
qH type Snap-in
qH type Snap-in and/or Screw Mounting
13
+0.3
0
18±0.1
+0.2
0
M2∞0.4 or Ø2.4
13
27.4
1.8
20.5
17.9
27.4
3
1.8
Ø2.3
(8.5)
(8.5)
3
+0.3
0
Panel thickness: 1.6mm
Panel thickness: 1.6mm
Panel thickness: 1.6mm
17.9
Part Number
CL No.
Split sleeve
Color
HSCH-2A(P)(51)
704-2020-1-51
Copper sleeve
Blue
HSCH-2A-D(P)(02)
704-2062-1-02
Zirconia
HSCH-2A-D2(P)(03)
704-2108-0-03
Green
