HSC-R2-B 데이터시트(PDF) 19 Page - Hirose Electric

부품명 HSC-R2-B
상세설명  SC Type Fiber Optic Connectors
PDF  21 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  HIROSE [Hirose Electric]
홈페이지  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

HSC-R2-B 데이터시트(HTML) 19 Page - Hirose Electric

Back Button HSC-R2-B Datasheet HTML 13Page - Hirose Electric HSC-R2-B Datasheet HTML 14Page - Hirose Electric HSC-R2-B Datasheet HTML 15Page - Hirose Electric HSC-R2-B Datasheet HTML 16Page - Hirose Electric HSC-R2-B Datasheet HTML 17Page - Hirose Electric HSC-R2-B Datasheet HTML 18Page - Hirose Electric HSC-R2-B Datasheet HTML 19Page - Hirose Electric HSC-R2-B Datasheet HTML 20Page - Hirose Electric HSC-R2-B Datasheet HTML 21Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out
 19 / 21 page

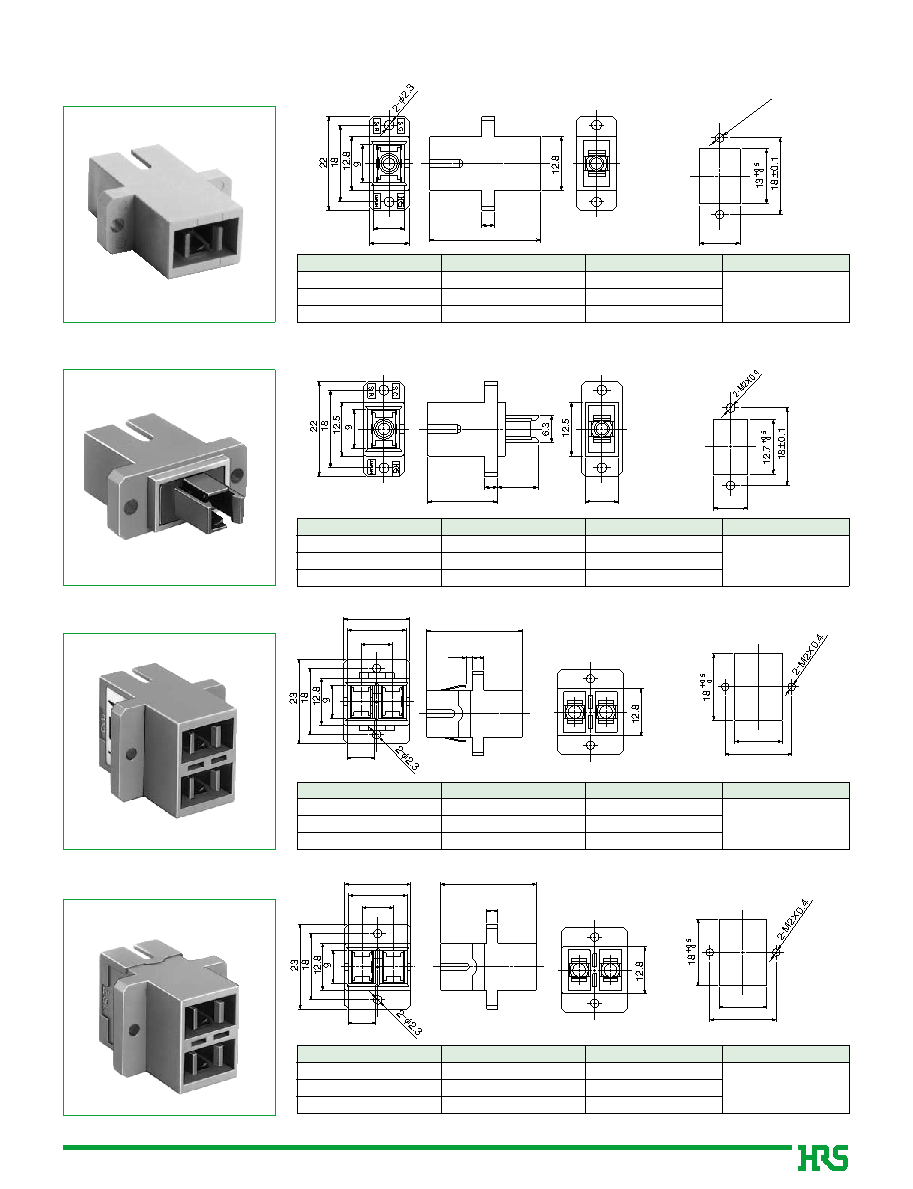

background image
45
qSimplex / Unshrouded
qDuplex H type / Shrouded
qDuplex H type / Shrouded (Without plate)
sSimplified receptacle to SC
BPanel cut-out
BPanel cut-out
BPanel cut-out
3
26
( 8.5)
15.9
17.9
7.4
( 8.5)
15.9
17.9
7.4
1.8
3
26
8+0.5
0
BPanel cut-out
9.5
+0.5
0
2-M2∞0.4
13
+0.5
0
18±0.1
13
+0.5
0
18±0.1
16.2
3
9.35
7.8
qSimplex / Shrouded
3
26
7.4
9.4
Panel thickness: 1.6mm
Part Number
CL No.
Split sleeve
Color
HSC-SR-1(51)
704-0320-4-51
Copper alloy
HSC-SR-D1(02)
704-0321-7-02
Zirconia
Blue
HSC-SR-1(03)
704-0320-4-03
None
Part Number
CL No.
Split sleeve
Color
HSC-SR-2(51)
704-0291-8-51
Copper alloy
HSC-SR-D2(06)
704-0292-0-06
Zirconia
Blue
HSC-SR-2(03)
704-0291-8-03
None
Part Number
CL No.
Split sleeve
Color
HSCH-2SR-1(R)(51)
704-0293-3-51
Copper alloy
HSCH-2SR-D1(R)(01)
704-0294-6-01
Zirconia
Blue
HSCH-2SR-1(R)(03)
704-0293-3-03
None
Part Number
CL No.
Split sleeve
Color
HSCH-2SR-3(R)(51)
704-0300-7-51
Copper alloy
HSCH-2SR-D3(R)(01)
704-0301-0-01
Zirconia
Blue
HSCH-2SR-3(R)(03)
704-0300-7-03
None
