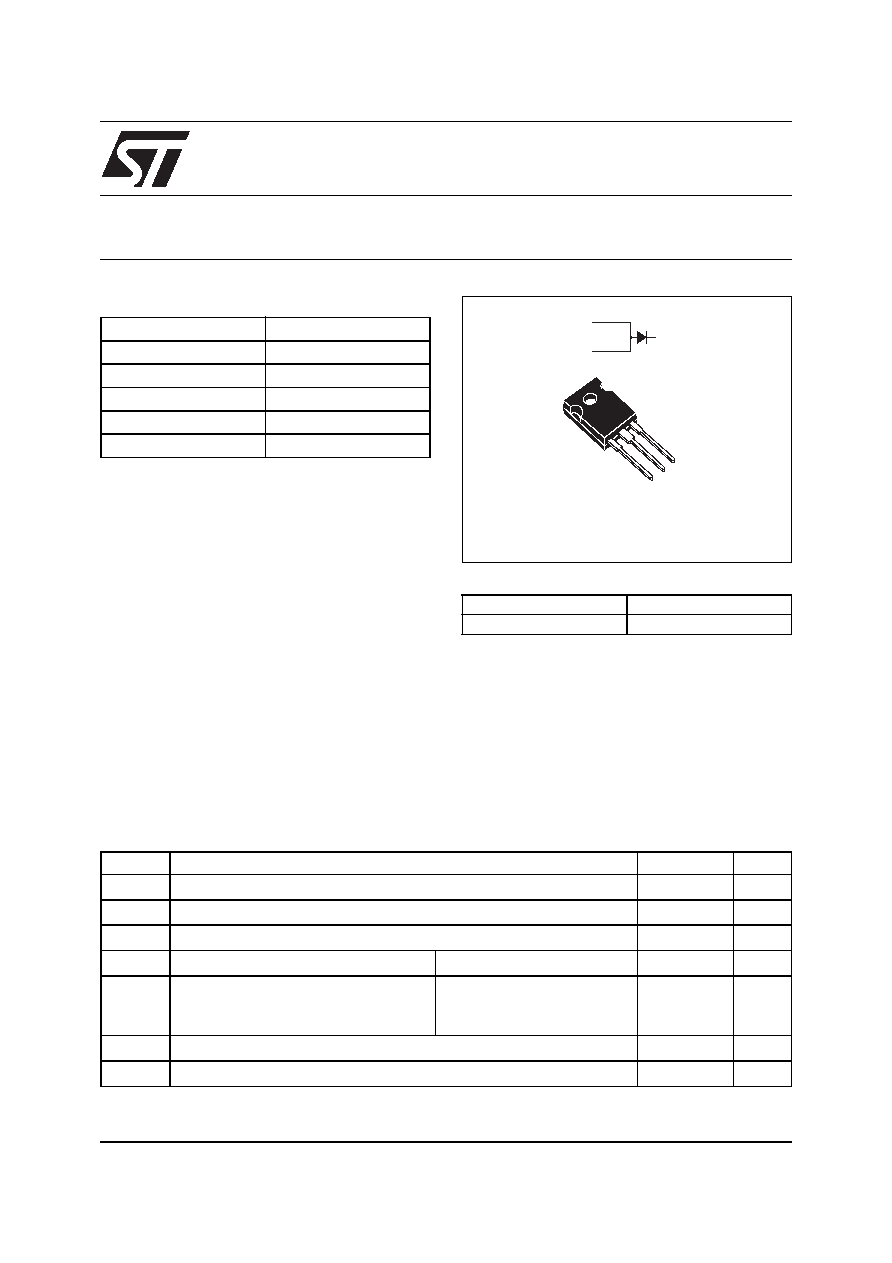

STTH60P03S

ULTRAFAST RECTIFIER PDP ENERGY RECOVERY

Table 3: Absolute Ratings (limiting values)

Symbol

Parameter

Value

Unit

VRRM

Repetitive peak reverse voltage

300

V

IF(RMS) RMS forward voltage

80

A

IF(AV)

Average forward current

60

A

IFSM

Surge non repetitive forward current

tp = 10ms sinusoidal

250

A

IFRM

Forward repetitive peak surge current

F = 200 kHz, tp = 500 ns

Sinusoidal waveform,

Tc = 155°C

150

A

Tstg

Storage temperature range

-65 to + 175

°C

Tj

Maximum operating junction temperature

175

°C

K

A

TO-247

STTH60P03SW

K

A

March 2005

REV. 3

Table 1: Main Product Characteristics

FEATURES AND BENEFITS

■ Ultrafast recovery allowing High Sustain

Frequency

■ Decrease charge evacuation time in the

inductance (see figure 1)

■ Minimize switching-on and total power losses

■ Increase luminuous efficiency and brightness

■ Soft and noise-free recovery

■ High surge capability

■ High junction temperature

DESCRIPTION

The STTH60P03SW is an Ultrafast Recovery

Power Rectifier dedicated to energy recovery in

PDP application.

The key parameters of the DERC diode for the

energy recovery cicuit have been optimized in

order to decrease power losses.

IF(AV)

60 A

VRRM

300 V

VFP (typ)

2.5 V

IRM (typ)

6 A

Tj

175°C

VF (typ)

0.9 V

Table 2: Order Code

Part Number

Marking

STTH60P03SW
