© 2015 Semiconductor Components Industries, LLC.
www.fairchildsemi.com
FUSB302
• Rev. 2
32
www.onsemi.com

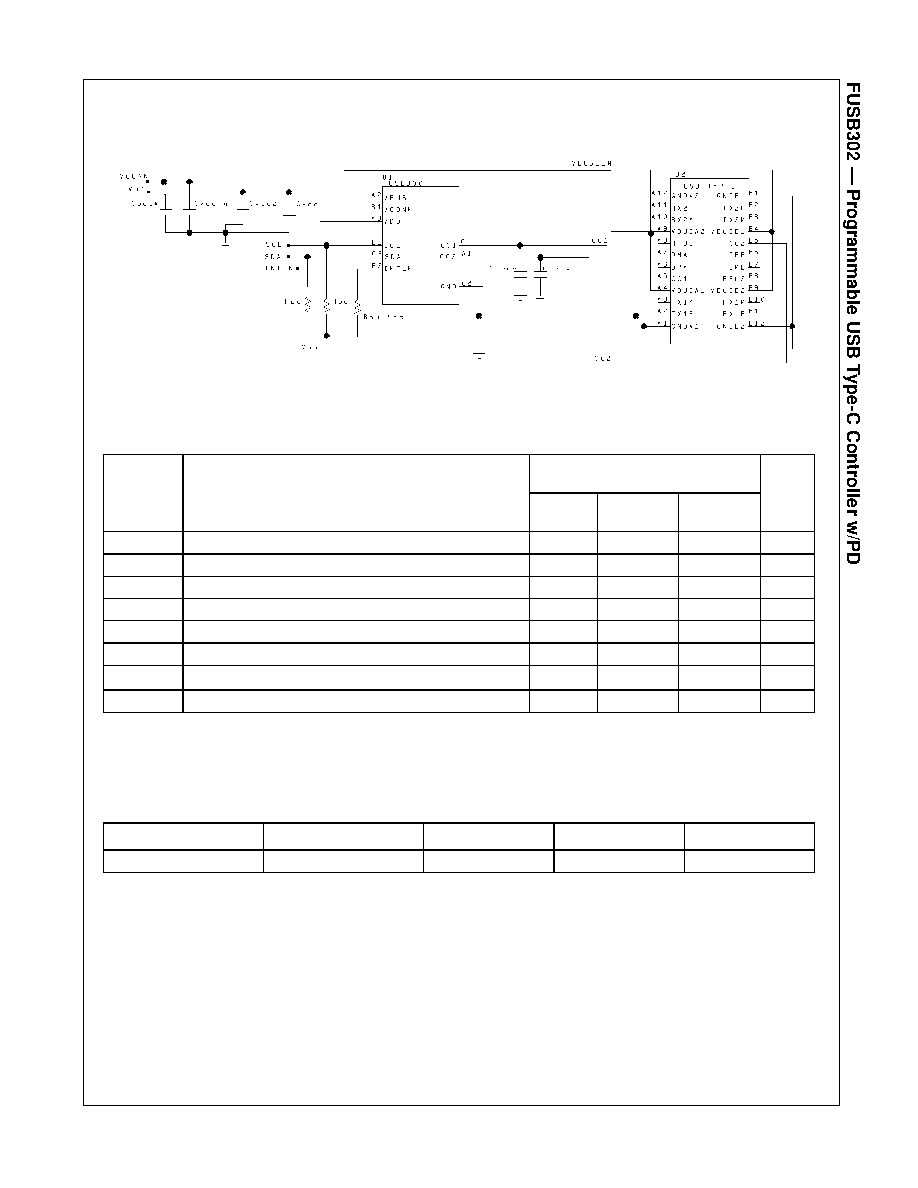

Reference Schematic
Figure 17.
FUSB300/302 Reference Schematic Diagram
Table 31. Recommended Component Values for Reference Schematic
Symbol
Parameter
Recommended Value
Unit
Min.
Typ.
Max.
CRECV
CCX Receiver Capacitance
200
600
pF
CBULK
VCONN Source Bulk Capacitance
10
220
µF
CVCONN
VCONN Decoupling Capacitance
0.1
µF
CVDD1
VDD Decoupling Capacitance
0.1
µF
CVDD2
VDD Decoupling Capacitance
1.0
µF
RPU
I2C Pull-up Resistors
4.7
kΩ
RPU_INT
INT_N Pull-up Resistor
1.0
4.7
kΩ
VPU
I2C Pull-up Voltage
1.71
VDD
V
The table below is in reference to the WLCSP dimensions on the following page.
Product-Specific Dimensions
Product
D
E
X
Y
FUSB302UCX
1.215 mm
1.260 mm
0.230 mm
0.2075 mm
