2SC4635LS

No.3704-1/3

Features

•

High breakdown voltage(VCEO min=1500V).

•

Small Cob(typical Cob=1.9pF).

•

Full-isolation package.

•

High reliability(Adoption of HVP process).

Specifications

Absolute Maximum Ratings at Ta=25

°C

Parameter

Symbol

Conditions

Ratings

Unit

Collector-to-Base Voltage

VCBO

1500

V

Collector-to-Emitter Voltage

VCEO

1500

V

Emitter-to-Base Voltage

VEBO

5V

Collector Current

IC

20

mA

Collector Current (Pulse)

ICP

60

mA

Collector Dissipation

PC

2W

Junction Temperature

Tj

150

°C

Storage Temperature

Tstg

--55 to +150

°C

Electrical Characteristics at Ta=25

°C

Ratings

Parameter

Symbol

Conditions

min

typ

max

Unit

Collector Cutoff Current

ICBO

VCB=1500V, IE=0

1

µA

Emitter Cutoff Current

IEBO

VEB=4V, IC=0

1

µA

DC Current Gain

hFE

VCE=5V, IC=600µA10

60

Gain-Bandwidth Product

fT

VCE=10V, IC=600µA

6

MHz

Continued on next page.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

Ordering number : ENN3704B

2SC4635LS

1500V / 20mA High-Voltage Amplifier,

High-Voltage Switching Applications

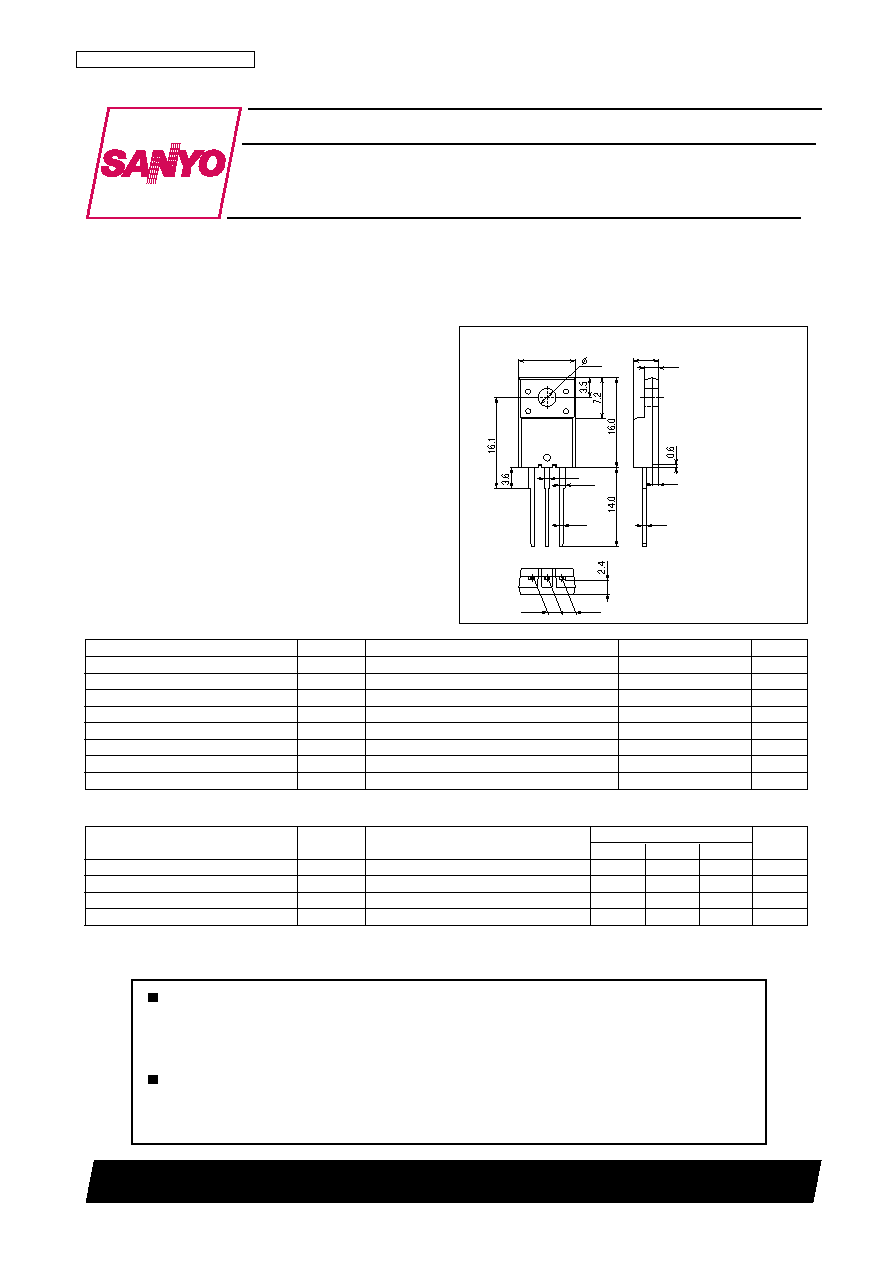

Package Dimensions

unit : mm

2079D

[2SC4635LS]

11502 TS IM TA-3427 / 11599 HA (KT) / 80296 YK (KOTO) TA-0465, AX-7506, 8-6926

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft's

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

NPN Triple Diffused Planar Silicon Transistor

1 : Base

2 : Collector

3 : Emitter

SANYO : TO-220FI(LS)

0.7

2.55

2.55

1.2

0.9

0.75

1.2

4.5

2.8

12 3

10.0

3.2
