REV. A
AD8354
–13–

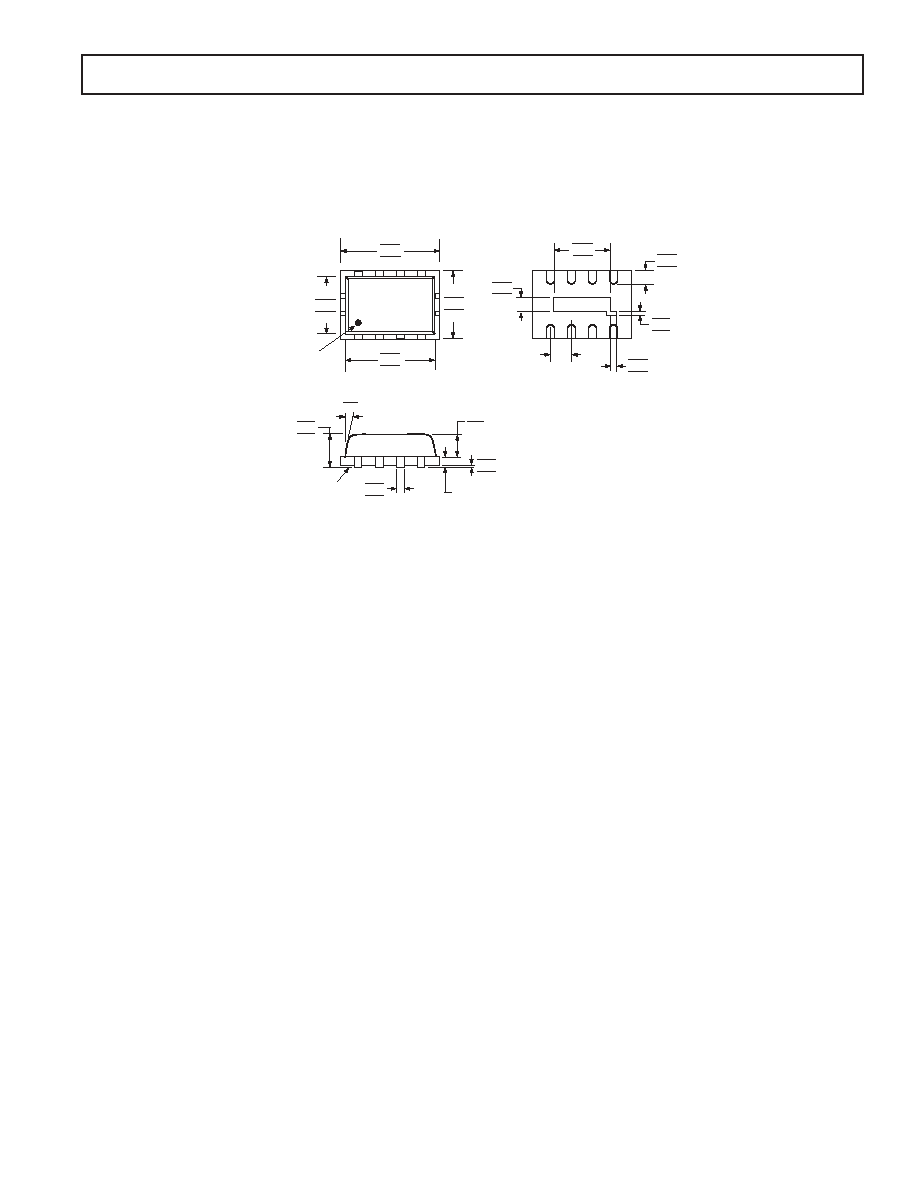

OUTLINE DIMENSIONS
8-Lead Lead Frame Chip Scale Package [LFCSP]
2mm x 3 mm Body
(CP-8)
Dimensions shown in millimeters
0.30
0.23
0.18
SEATING
PLANE
12
0
0.20 REF
0.80 MAX
0.65 NOM
1.00
0.90
0.80
0.05
0.02
0.00
1.89
1.74
1.59
0.50 BSC
0.60
0.45
0.30
0.55
0.40
0.30
0.15
0.10
0.05
0.25
0.20
0.15
BOTTOM VIEW
4
58
1
3.25
3.00
2.75
1.95
1.75
1.55
2.95
2.75
2.55
PIN 1
INDICATOR
2.25
2.00
1.75
NOTES
1. CONTROLLING DIMENSIONS ARE IN MILLIMETERS.
2. PADDLE IS COPPER PLATED WITH LEAD FINISH.
