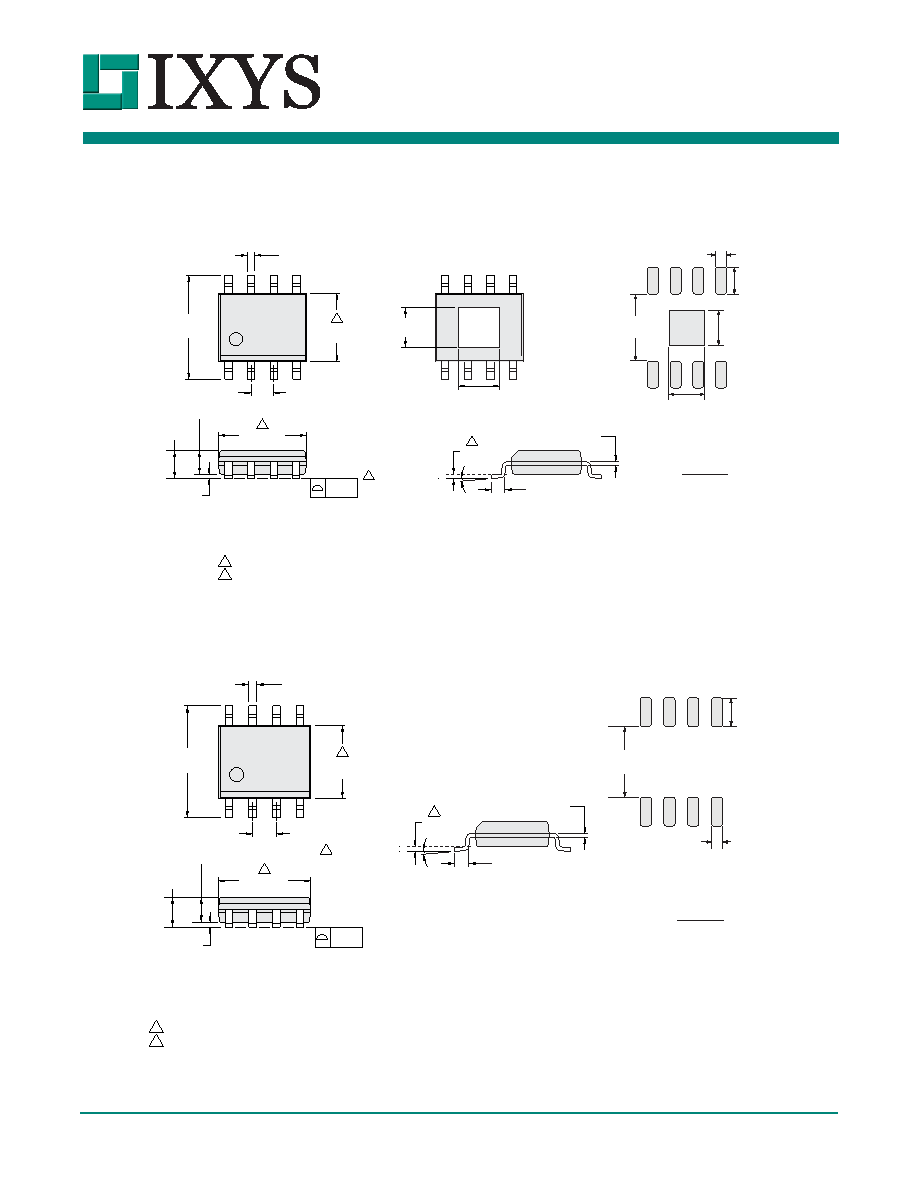

8 / 10 page ![]() INTEGRATED CIRCUITS DIVISION 8 www.ixysic.com R05 IX4340 3.5 Mechanical Dimensions 3.5.1 IX4340NE Package Dimensions 3.5.2 IX4340N Package Dimensions Dimensions MIN / MAX 1.70 MAX (0.067 MAX) 1.25 MIN (0.049 MIN) 0 / 0.15 (0 / 0.006) 0.10 (0.004) 4 4.80 / 5.00 (0.189 / 0.197) TOP VIEW PIN #1 5.80 / 6.20 (0.228 / 0.244) 5 3.80 / 4.00 (0.150 / 0.157) 0.31 / 0.51 (0.012 / 0.020) 8x BOTTOM VIEW 1.94 / 2.29 (0.076 / 0.090) 1.94 / 2.29 (0.076 / 0.090) SEATING PLANE GAUGE PLANE 8°- 0° 0.10 / 0.25 (0.004 / 0.010) 0.40 / 1.27 (0.016 / 0.050) A 0.25 (0.010) PCB Land Pattern 1.55 (0.061) 0.60 (0.024) 3.85 (0.152) 2.11 (0.083) A 6x 1.27 0.05 Notes: 1. Controlling dimension: millimeters. 2. All dimensions are in mm (inches). 3. This package conforms to JEDEC Standard MS-012, variation BA, Rev. F. 4. Dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15mm per end. 5. Dimension does not include interlead flash or protrusion. Interlead flash or protrusion shall not exceed 0.25mm per side. 6. The thermal pad on the bottom of the device may be connected to GND or left floating; it must not be connected to any other signal. The thermal pad is not intended to carry current. 7. Lead thickness includes plating. 2.11 (0.083) Dimensions MIN / MAX 1.75 MAX (0.069 MAX) 1.25 MIN (0.049 MIN) 0.10 / 0.25 (0.004 / 0.010) 0.10 (0.004) 4 4.80 / 5.00 (0.189 / 0.197) TOP VIEW PIN #1 5.80 / 6.20 (0.228 / 0.244) 5 3.80 / 4.00 (0.150 / 0.157) 0.31 / 0.51 (0.012 / 0.020) 8x SEATING PLANE GAUGE PLANE 8°- 0° 0.10 / 0.25 (0.004 / 0.010) 0.40 / 1.27 (0.016 / 0.050) A 0.25 (0.010) PCB Land Pattern 1.55 (0.061) 0.60 (0.024) 3.75 (0.148) A Notes: 1. Controlling dimension: millimeters. 2. All dimensions are in mm (inches). 3. This package conforms to JEDEC Standard MS-012, variation AA, Rev. F. 4. Dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15mm per end. 5. Dimension does not include interlead flash or protrusion. Interlead flash or protrusion shall not exceed 0.25mm per side. 6. Lead thickness includes plating. 6x 1.27 0.05 |
|
|
