TPS1663 데이터시트(PDF) 24 Page - Texas Instruments

Click here to check the latest version.
부품명 TPS1663
상세설명  60-V, 6-A Power Limiting eFuse
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TI1 [Texas Instruments]
홈페이지  http://www.ti.com
Logo TI1 - Texas Instruments

TPS1663 데이터시트(HTML) 24 Page - Texas Instruments

Back Button TPS1663 Datasheet HTML 20Page - Texas Instruments TPS1663 Datasheet HTML 21Page - Texas Instruments TPS1663 Datasheet HTML 22Page - Texas Instruments TPS1663 Datasheet HTML 23Page - Texas Instruments TPS1663 Datasheet HTML 24Page - Texas Instruments TPS1663 Datasheet HTML 25Page - Texas Instruments TPS1663 Datasheet HTML 26Page - Texas Instruments TPS1663 Datasheet HTML 27Page - Texas Instruments TPS1663 Datasheet HTML 28Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 24 / 30 page
background image
VIN PLANE
TOP Layer
GND Plane
BOTTOM Layer GND Plane
BOTTOM Layer GND Plane
Via to Bottom Layer
Top Layer
Top Layer GND Plane
Bottom layer GND plane
IN
IN
P_IN
N.C
N.C
UVLO
OUT
N.C
OUT
PGOOD
IMON
FLT
VOUT PLANE
D1
D2
High
Frequency
Bypass cap
24
TPS1663
SLVSET9A – SEPTEMBER 2018 – REVISED OCTOBER 2018
www.ti.com
Product Folder Links: TPS1663
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
11.2 Layout Example

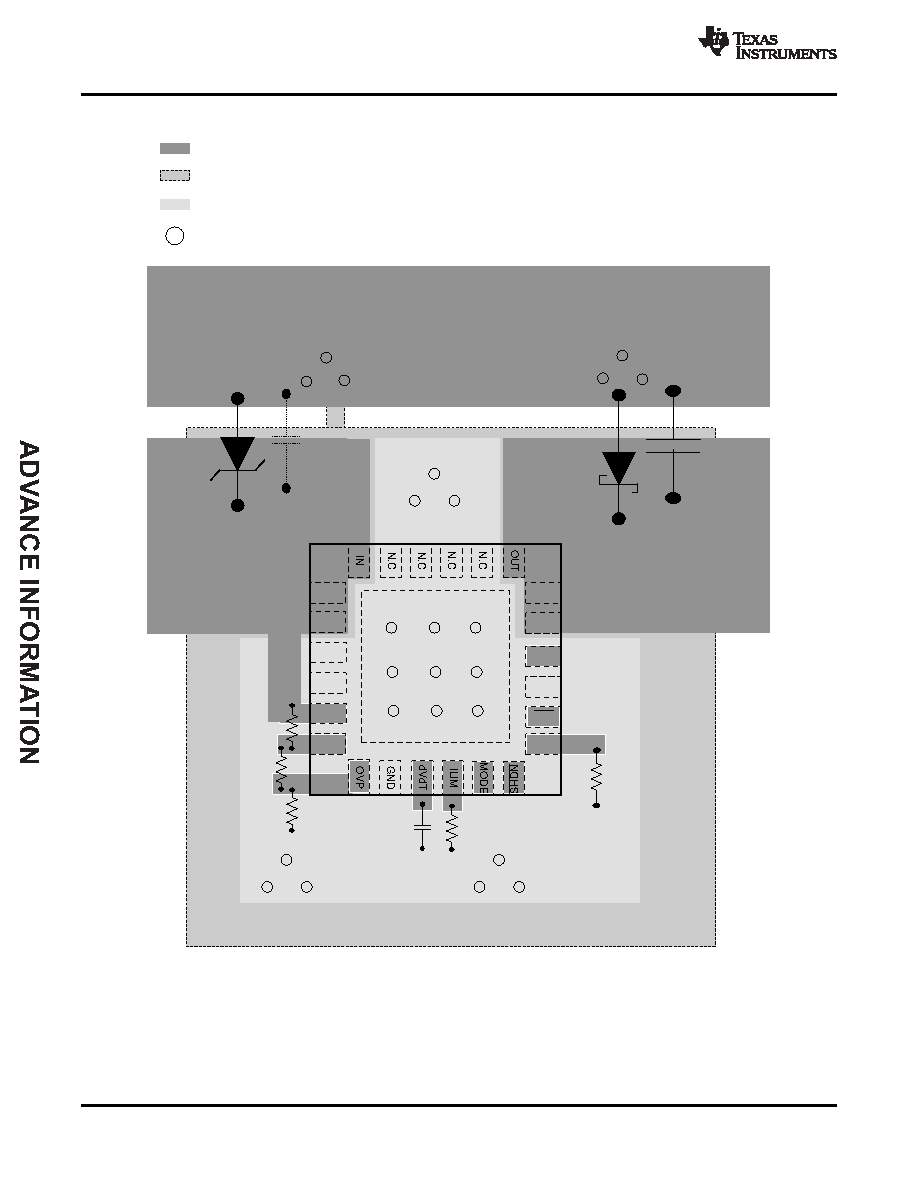

Figure 19. PCB Layout Example with QFN Package with a 2 Layer PCB
