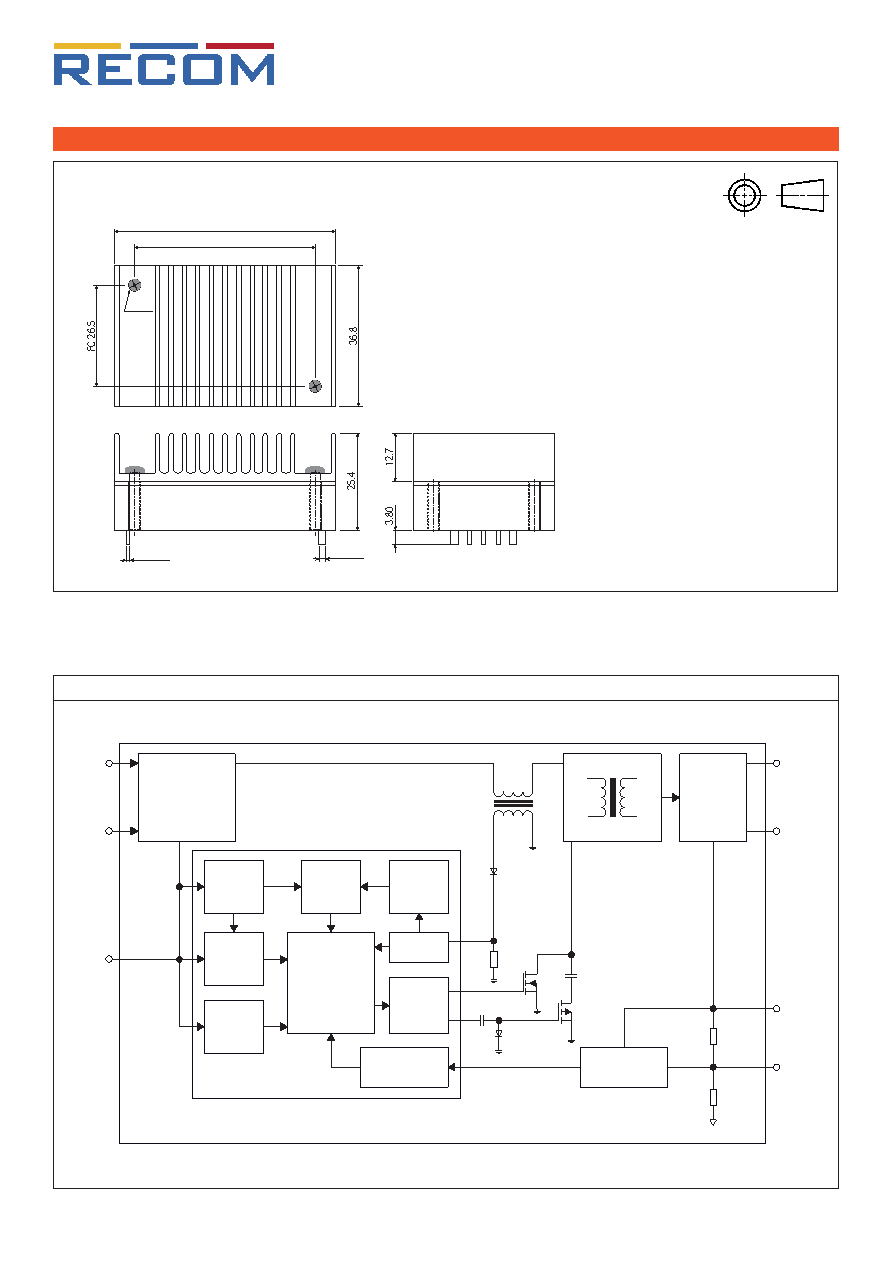

DC/DC Converter
Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
RP40Q-RUW
Series
FC 47.24
57.9
4xM3
Ø1.6±0.10
Ø1.0±0.10
Dimension Drawing Heat-sink (mm)
BLOCK DIAGRAMM
Input Filter
UVLO
Oscillator
Controller
+V
in
-V
in
CTRL
+V
out
-V
out
+Sense
-Sense
Trim
Start Up
Regulator
Softstart
Current Mode
PWM
Current to
Voltage
Converter
Feedback and
Isolation
Rectifier and
Output Filter
Transformer
Restart
Current
Sense
Main and
Clamp
Gate
Driver
