L16B06

Preliminary

CMOS IC

UNISONIC TECHNOLOGIES CO., LTD

12 of 13

www.unisonic.com.tw

QW-R502-A45.c



POWER DI SSI PAT I ON

The power dissipation of a semiconductor chip is limited to its package and ambient temperature, in which the

device requires the maximum output current calculated for given operating conditions. The maximum allowable

power consumption can be calculated by the following equation:

TJ (Junction temperature)(max)(°C) – TA(Ambient Temperature)

PD(max)(watt)=

RTH (Junction - to – air thermal resistance)(°C/watt)

The power consumption of IC can be determined by the following equation an should be less than the maximum

allowable power dissipation:

PD(W) = VCC(V) × IDD(A) + VOUT 0 × IOUT 0 × DUTY 0 + ….. + VOUT 15 × IOUT 15 × DUTY 15

≤ PD (max)(W)



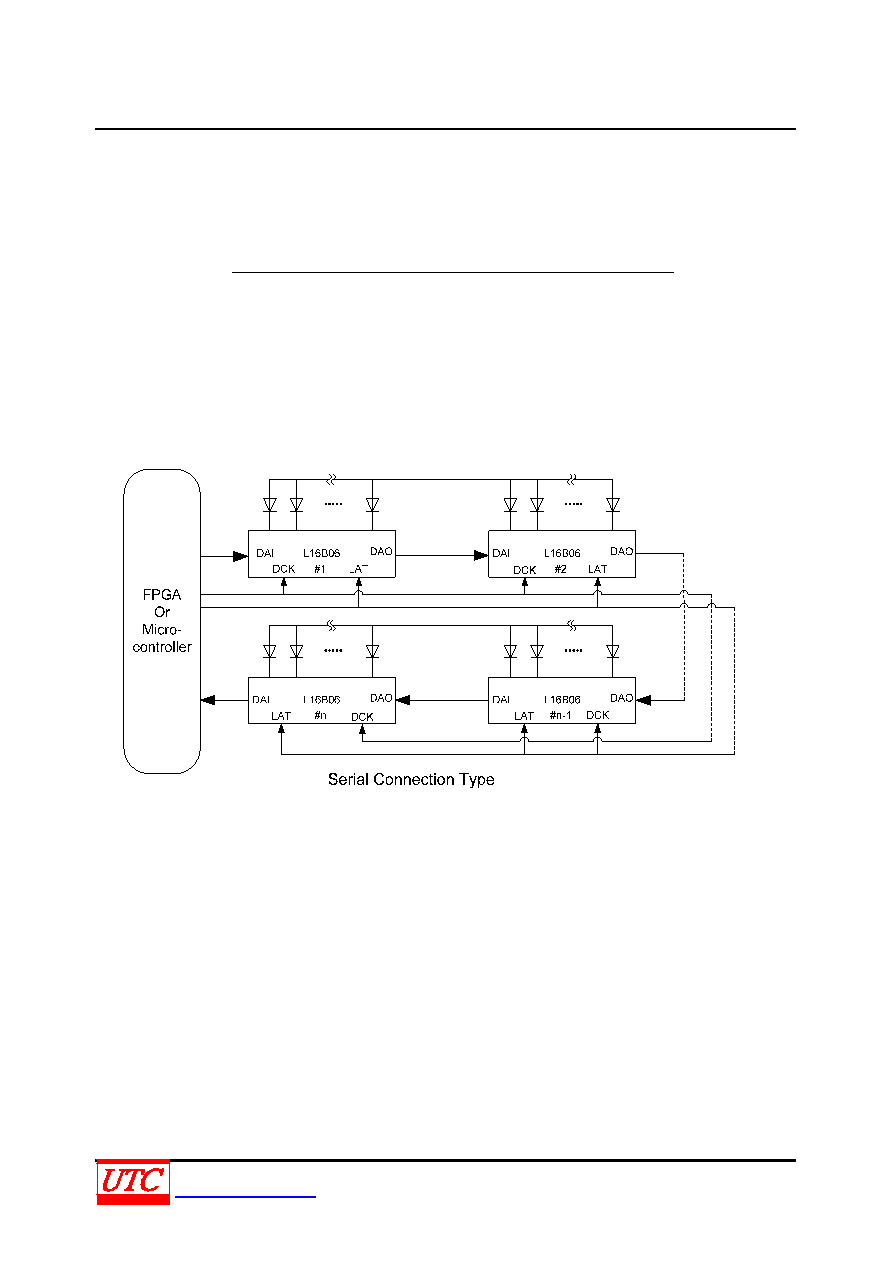

T Y PI CAL APPLI CAT I ON
