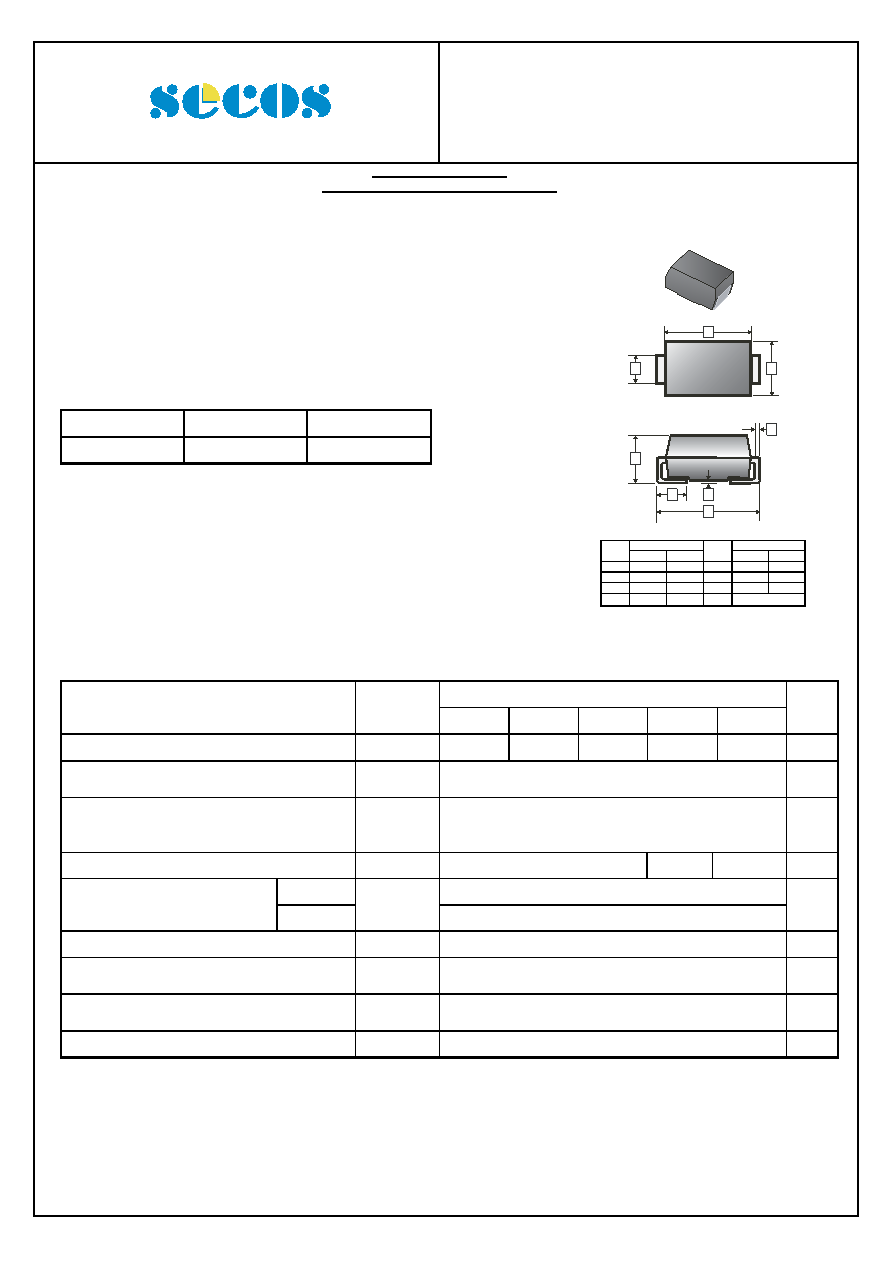

1 / 2 page

Elektronische Bauelemente

SUF501C~SUF505C

5A, 50V ~ 600V

Surface Mount Super Fast Recovery Rectifiers

16-Jun-2016 Rev. C

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Ideal for surface mount applications

Easy pick and place

Built-in strain relief

APPLICATIONS

Rectifier

PACKAGE INFORMATION

Package

MPQ

Leader Size

SMC

3K

13 inch

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Part Number

Parameter

Symbol

SUF501C

SUF502C

SUF503C

SUF504C

SUF505C

Unit

Maximum Repetitive Peak Reverse Voltage

VRRM

50

100

200

400

600

V

Maximum Average Forward Current@60Hz

half sine wave, resistance load, TA=50°C

IF

5

A

Maximum Non-Repetitive Peak Forward Surge

Current@ 60Hz half sine-wave, 1 cycle,

TA=25°C

IFSM

150

A

Peak Forward Voltage@ IFM=5A, TA=25°C

2

VFM

0.95

1.3

1.7

V

TA=25°C

10

Peak Reverse Current@

VRM= VRRM

2

TA=125°C

IRRM

500

µA

Reverse Recovery Time

1,2

TRR

35

nS

Typical Thermal Resistance from Junction

to Lead

2

RθJL

15

°C/W

Typical Thermal Resistance from Junction

to Ambient

2

RθJA

50

°C/W

Operating Junction and Storage Temperature

TJ, TSTG

150, -55~150

°C

Notes:

1.

Reverse Recovery Time test condition：IF=0.5A, IR=1A, IRR=0.25A, TA=25°C

2.

RθJL and RθJA is measured when the device is mounted on a P.C.B. with a 0.3’’ × 0.3’’ (8mm × 8mm) copper pad areas.

SMC

A

B

E

G

D

F

C

H

Millimeter

REF.

Min.

Max.

REF.

Min.

Max.

A

2.750

3.270

E

-

0.203

B

6.520

7.110

F

7.640

8.130

C

5.50

6.220

G

0.750

1.520

D

1.980

2.620

H

0.23 TYP
