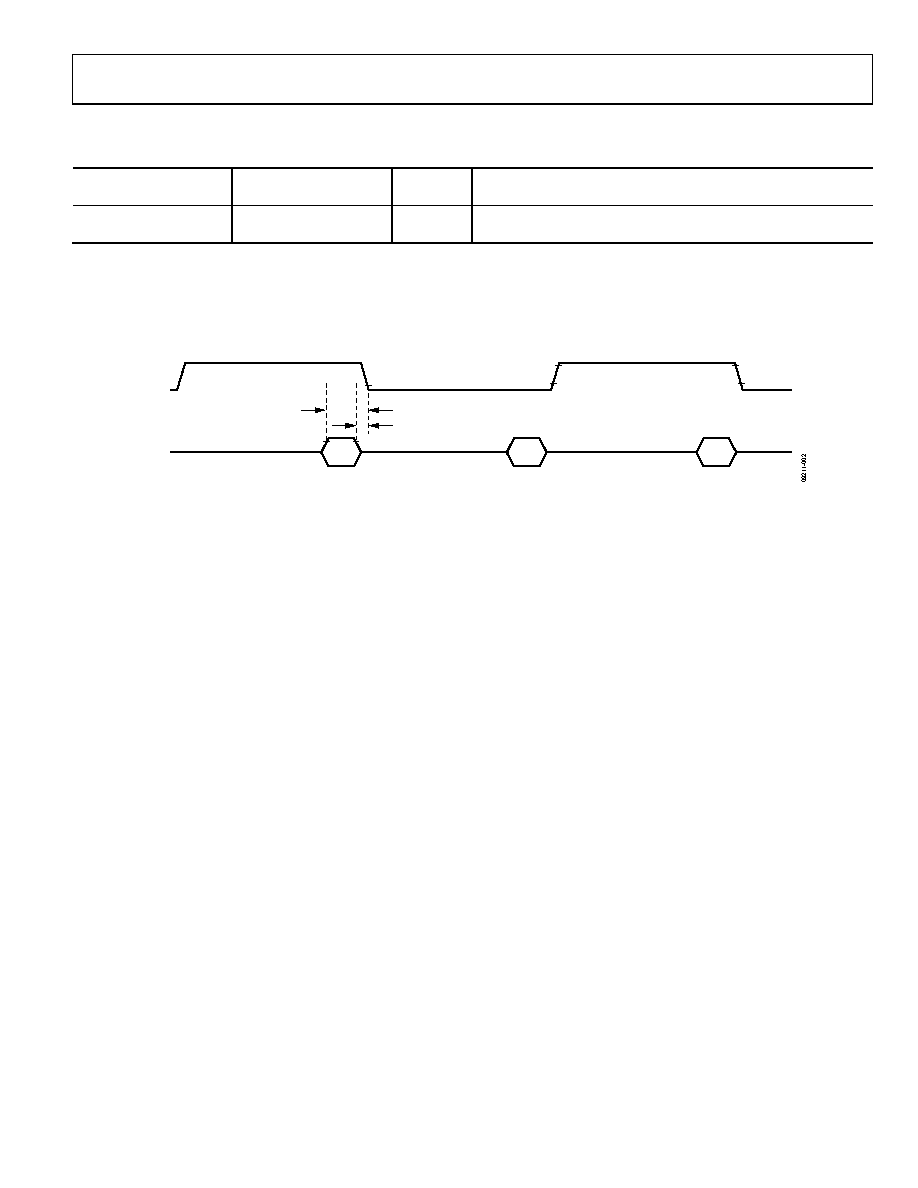

5 / 16 page ![]() Data Sheet SSM2517 Rev. B | Page 5 of 16 PDM INTERFACE DIGITAL TIMING SPECIFICATIONS Table 3. Limit Parameter tMIN tMAX Unit Description tDS 44 ns Valid data start time1 tDE 7 ns Valid data end time1 1 The SSM2517 was designed so that the data line can transition coincident with or close to a clock edge. It is not necessary to delay the data line transition until after the clock edge because the SSM2517 does this internally to ensure good timing margins. The data line should remain constant during the valid sample period illustrated in Figure 2; it may transition at any other time. Timing is measured from 70% of VDD on the rising edge or 30% VDD on the falling edge. Timing Diagram tDS tDE PCLK PDAT VALID LEFT SAMPLE VALID LEFT SAMPLE VALID RIGHT SAMPLE Figure 2. PDM Interface Timing |
|
|
