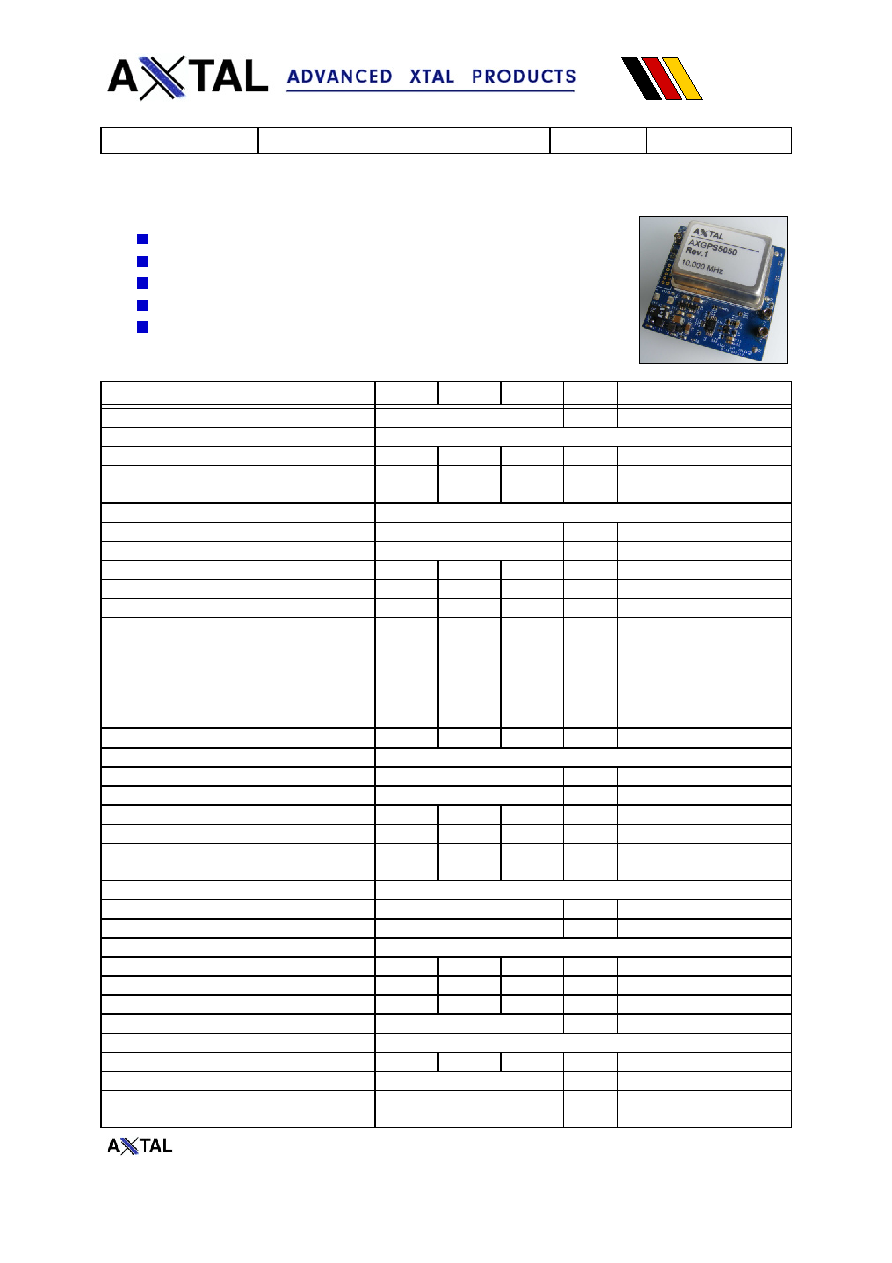

AXGPS5050 Rev.2

www.axtal.com

Roemerring 9

Drawing D0

fon: +49 (6261) 939834

D-74821 Mosbach

Page 1(4)

fax: +49 (6261) 939836

Germany

E-mail: info@axtal.com

GmbH & Co. KG

Specification

AXGPS5050

Rev.: 2

Date: 2018-07-12

Oscillator type:

Compact GPS-Disciplined OCXO 10.000 MHz

Features:

Compact Size 50x50x25 mm, PCB mountable

Low Phase Noise 10.000 MHz Output

1 PPS LVCMOS Output

External 1 PPS LVCMOS Reference Input

Communication Interface with NMEA-0183 standard

Parameter

min.

typ.

max.

Unit

Condition

Nominal output frequency

10.000

MHz

(Note 2)

Frequency stability

Tracking accuracy (GPS locked)

1·10-12

24 hours average

Holdover stability (GPS 24 hours

unlocked after 7 days locked)

5·10-10

Temperature ∆T <± 2K

RF output

Signal waveform

Sine wave

Load RL

50

Ω

±5%

Output level

+11

dBm

Harmonics

-60

-40

dBc

Spurious

-80

dBc

Phase Noise

-100

-130

-150

-155

-90

-120

-140

-145

-150

dBc/Hz

@ 1 Hz

@ 10 Hz

@ 100 Hz

@ 1 kHz

@ 10 kHz

@ 100 kHz

Short-term stability (ADEV)

1·10-11

@ τ = 1 sec

1 PPS output

Signal waveform

LVCMOS

Load RL

15

pF

Rise & decay time

5

ns

Accuracy (RMS) to UTC

30

ns

GPS locked 24 hours

Holdover stability (GPS 24 hours

unlocked after 7 days locked)

±4

µs

Temperature ∆T <± 2K

1 PPS reference input

Signal waveform

LVCMOS

Input impedance

>10 kOhm / 4 pF

GPS input

Input frequency

1575.42

MHz

Input impedance

50

Ω

Receiver Sensitivity

-160

-144

dBm

Antenna

Passive

5 V

Interface

Baud rate

57600

bps

RX/TX level

LVCMOS

Communication

Status information /

NMEA-0183

(Note 2)
