UT3238

Preliminary

CMOS IC

UNISONICTECHNOLOGIESCO.,LTD

8 of 10

www.unisonic.com.tw

QW-R502-B54..a



DETAILED DESCRIPTION(Cont.)

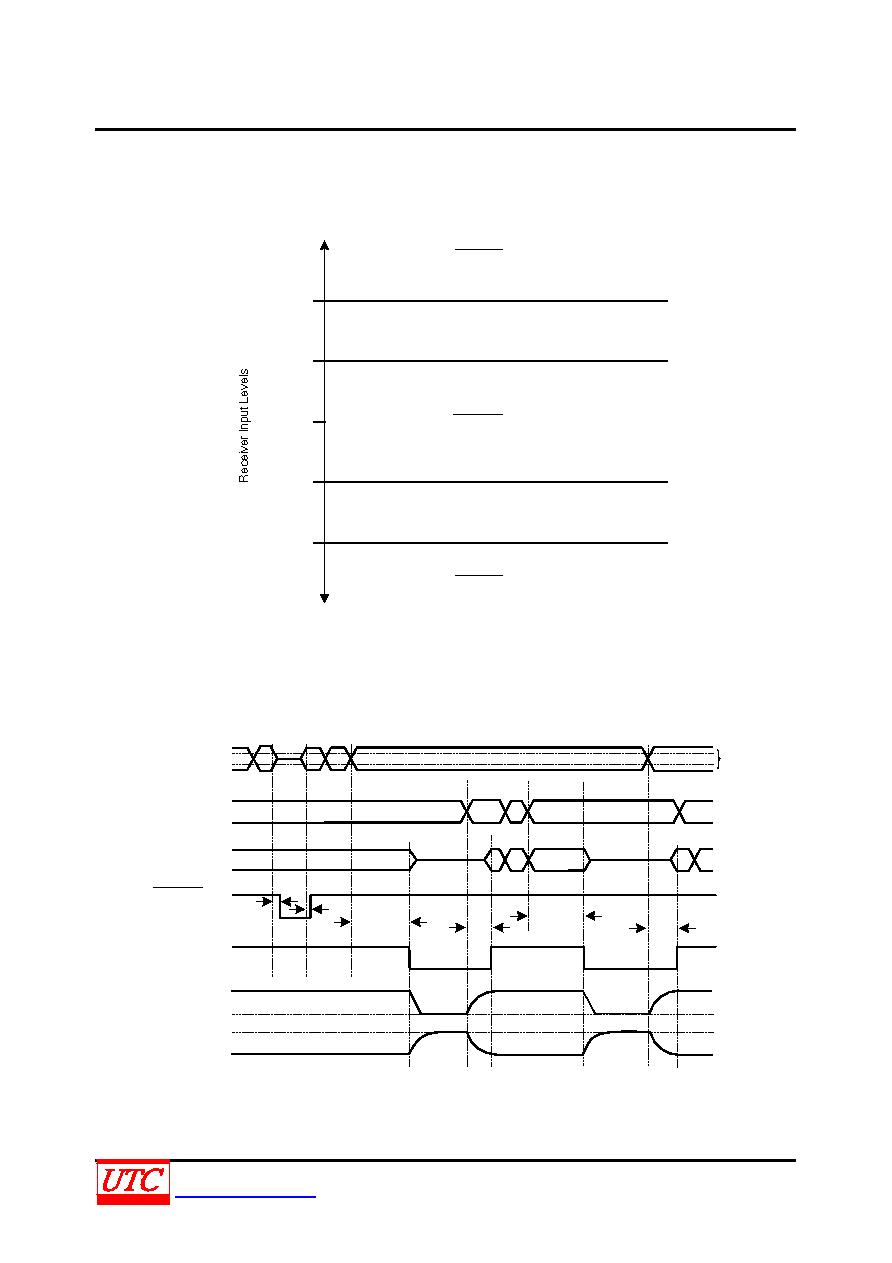

Figure 1 depicts valid and invalid RS-232 receiver voltage levels. INVALID indicates the receiver input’s condition,

and is independent of FORCEON and FORCEOFF states.

+0.3V

+2.7V

-0.3V

-2.7V

INVALID High

INVALID Low

INVALID High

Indeterminate

Fig.1 Shutdown Input Levels

When shutdown, the UTC UT3238’s charge pumps are turned off, V+ decays to VCC, V- decays to ground, the

transmitter output is disabled (high impedance). The time required to exit shutdown is typically 25µs.

RECEIVER

INPUTS

TRANSMITTER

INPUTS

TRANSMITTER

OUTPUTS

INVALID

OUTPUT

VCC

*VCC

V+

VCC

V-

OUTPUT

tINVL

tINVH

tAUTOSHDN

tWU

tAUTOSHDN

tWU

INVALID

REGION

Fig.2 Shutdown Input Timing
