ST-RX04-ASK
Electrical Characteristics :
CHARACTERISTIC
MIN
TYP
MAX
UNIT
Vcc
Supply Voltage
5
VDC
ls
Supply Current
2.3
3
mA
FR
Receiver Frequency
315/434
MHz
RF Sensitivity(Vcc=5V 1Kbps Data Rate)
-105
dBm
Max Data Rate
300
1
3
Kbit/s
VOH High Level Output (I=30uA)
0.7Vcc
VDC
VOL Low Level Output (I=30uA)
0.3Vcc
VDC
Turn On Time(Vcc off-Turn on)
25
30
ms
TOP Operating Temperature Range
-10
60
℃
Output Duty
40
60
%

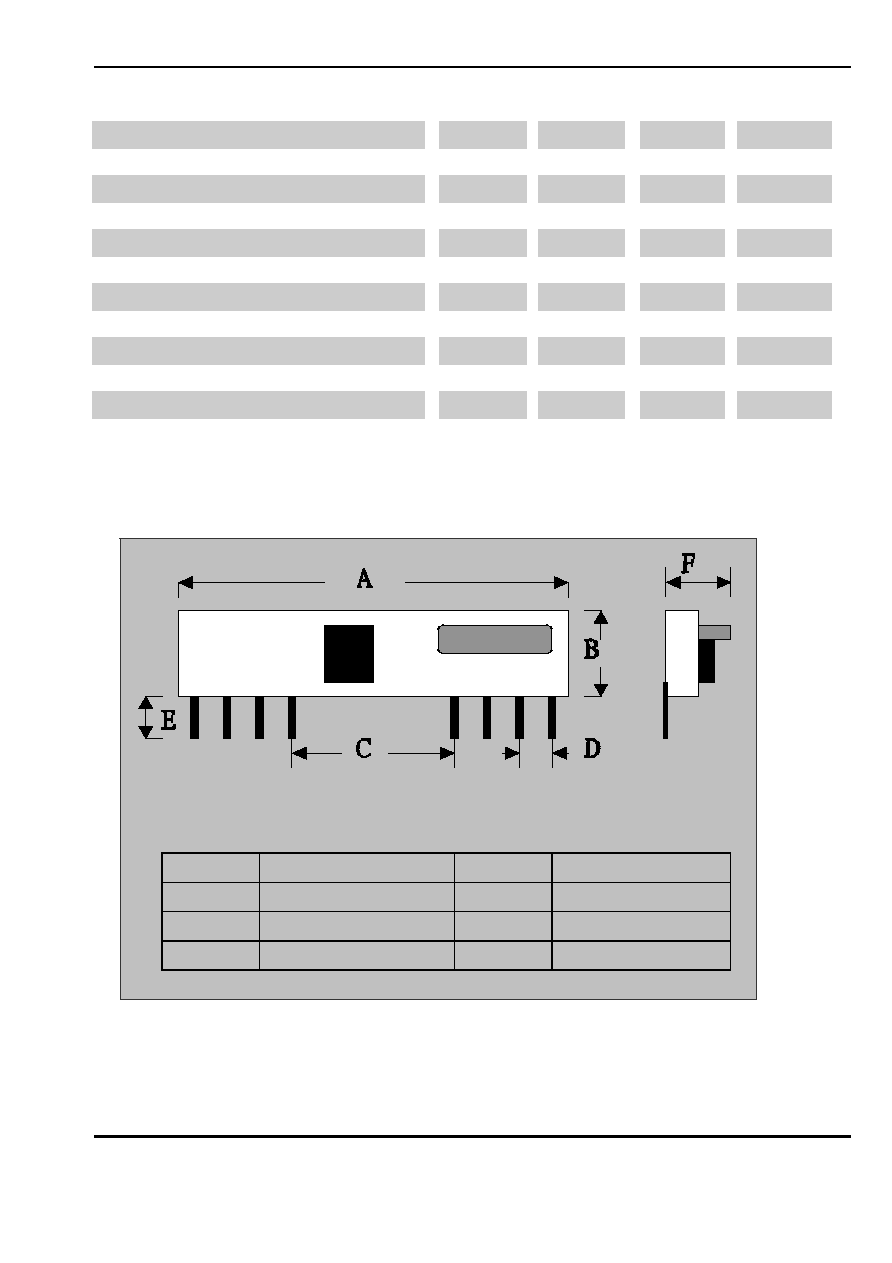

Mechanical Dimension:
N ame
D imension
N ame
D imension
A
D
43mm+-0.5mm
2.54m m +-0.3m m
B
E
12.4m m +-0.5m m
5m m +-0.5m m
C
F
25.4m m +-0.3m m
6m m (M ax)
SUMMIT Technology Co., LTD.
