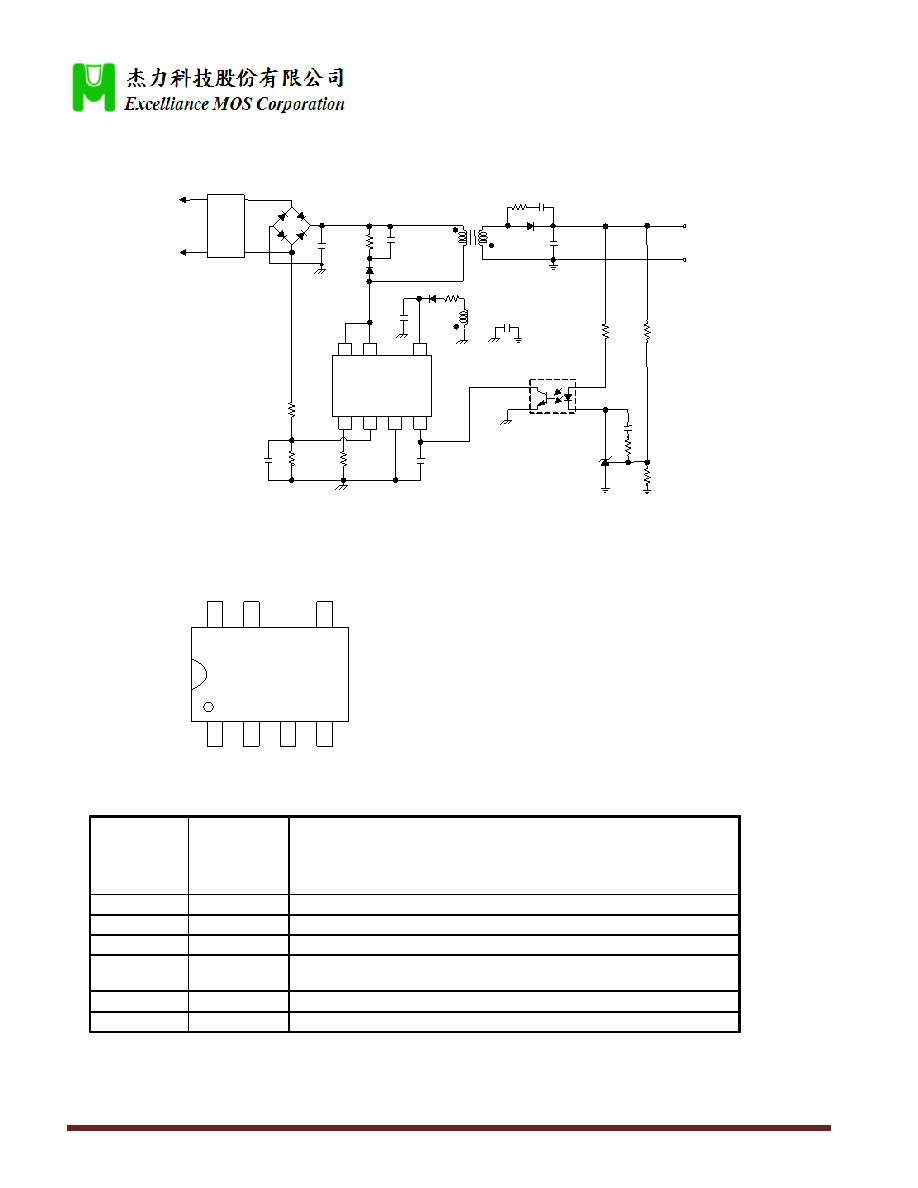

background image
2013/05/16
A.1
2
EM8564A
Typical Application Circuit 2
Pin Configuration
DIP-7
TOP VIEW
D
D
GND
COMP
BNO
CS
VCC
1
2
3
4
5
6
7
Pin Assignment
Pin Name
Pin Number
Pin Function
CS
1
Senses the primary current.
BNO
2
Line voltage detection. Use for brown-out protection.
GND
3
Ground.
COMP
4
Voltage feedback pin. By connecting a photo-coupler to close the control loop
and achieve the regulation.
VCC
5
IC Power Supply Pin.
D
6,7
For start-up, the pin is also HV Power MOSFET drain Pin.
AC
INPUT
EMI
Filter
EM8564A
D
VCC
COMP
GND
BNO
CS
D
Brown -out application
DC
OUTPUT
