FENG-JUI TECHNOLOGY CO., LTD

WOUND INDUCTOR-RoHS

Your Perfect Inductor

Rev.1401

GENERAL CHARACTERISTICS

-40 TO + 85℃(Includes temperature when the coil is heated)

2. External appearance

On visual inspection, the coil has no external defects.

3. Terminal strength

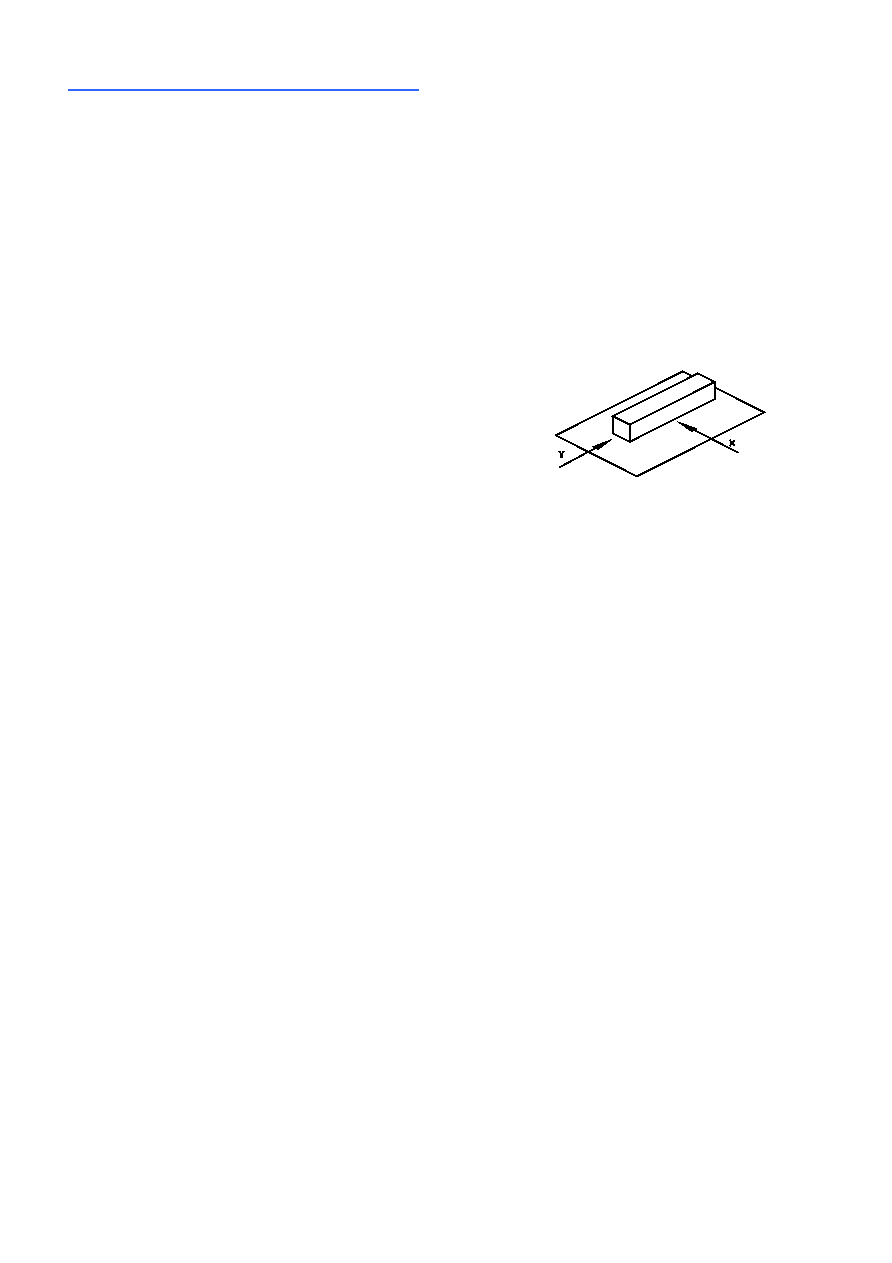

After soldering. Between copper plate and terminals of coil. Push in two directions of

X.Ywithstanding at below conditions.

Terminal should not peel off. (refer to figure at right)

0.5KG MIN.(WL252018.WL322522.WL453232.WL5650V.WLC322522.WLC453232)

Over 100MΩ at 100V D.C. between coil and core.

5. Dielectric strength

No dielectric breakdown at 100V D.C. for 1 minute between coil and core.

6. Temperature characteristics

7. Humidity characteristics

Inductance deviation within ±5%, after 96 hours in 90~95% relative humidity at 40 ±2℃

and 1

hour drying under normal condition.

8. Vibration resistance

Inductance deviation within ±5%, after vibration for 1 hour. In each of three orientations at sweep

vibration (10~55~10 Hz) with 1.5mm P-P amplitudes.

9. Shock resistance

upon a rubber block method shock testing machine, in three different orientations.

10. Resistance to Soldering Heat: 260 , 10 seconds

℃

11. Storage environment

Storage condition: Temperature Range: 10

~ 35

(Generally: 21

~ 31 )

℃℃

℃℃

Humidity Range: 50% ~ 80% RH (Generally: 65% ~ 75%)

Transportation condition: Temperature Range: -35

~ 85

℃℃

Humidity Range: 50% ~ 95% RH
