REV. 0

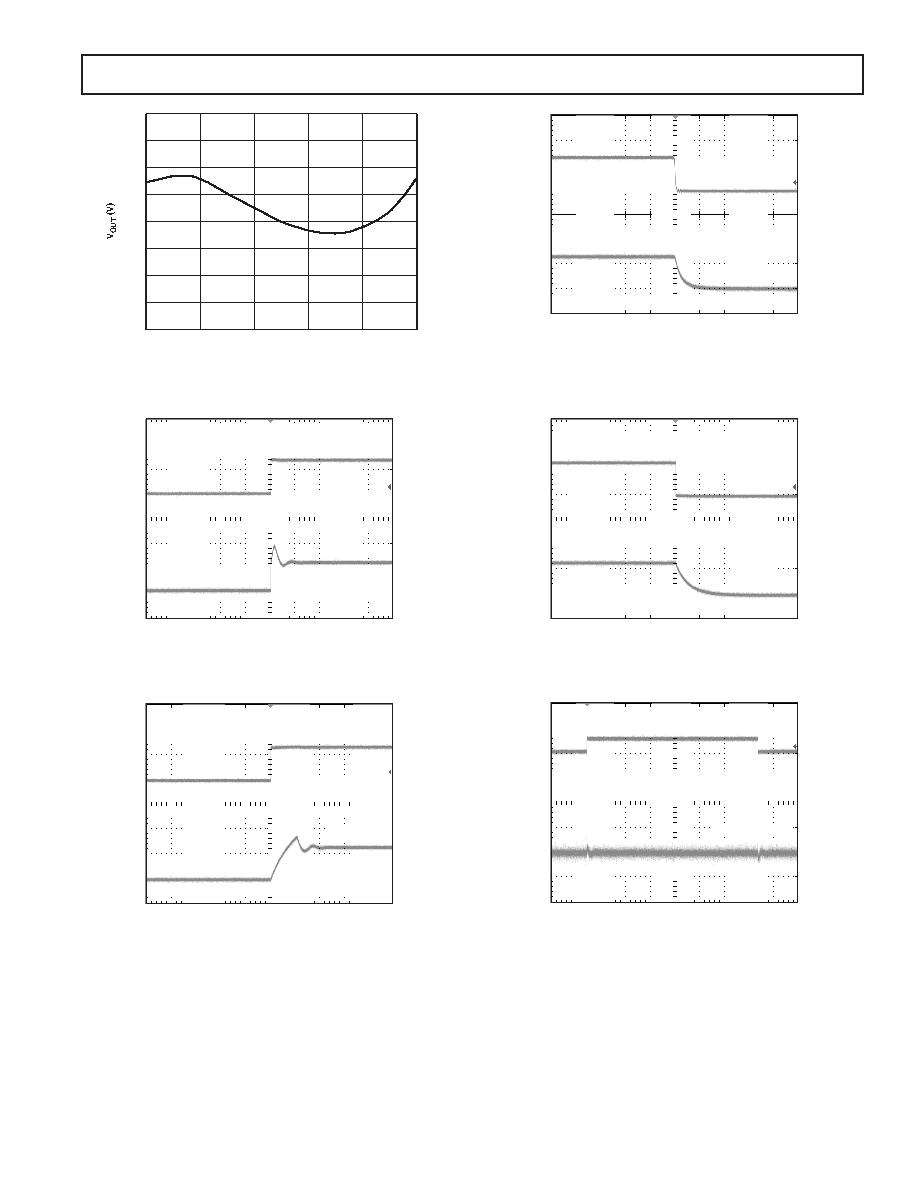

Typical Performance Characteristics–ADR512
–3–
TEMPERATURE ( C)
1.204
1.203
1.202
1.201
1.200
1.199
1.198
1.197
1.196
–15
–40
10
35
60
85
TPC 1. Typical VOUT vs. Temperature
TIME (100 s/DIV)
VIN = 2V/DIV
VOUT = 1V/DIV
TPC 2. Turn On Time
TIME (100 s/DIV)
VIN = 2V/DIV
VOUT = 1V/DIV
TPC 3. Turn On Time with 1
µF Input Capacitor
TIME (400 s/DIV)
VIN = 2V/DIV
VOUT = 1V/DIV
TPC 4. Turn Off Time
TIME (200 s/DIV)
VIN = 2V/DIV
VOUT = 1V/DIV
TPC 5. Turn Off Time with 1
µF Input Capacitor
∆IIN = 100 A
VOUT = 20mV/DIV
TIME (2 s/DIV)
TPC 6. Output Response to 100
µA Input Current Change
