STPR620CT/CF/CFP

3/7

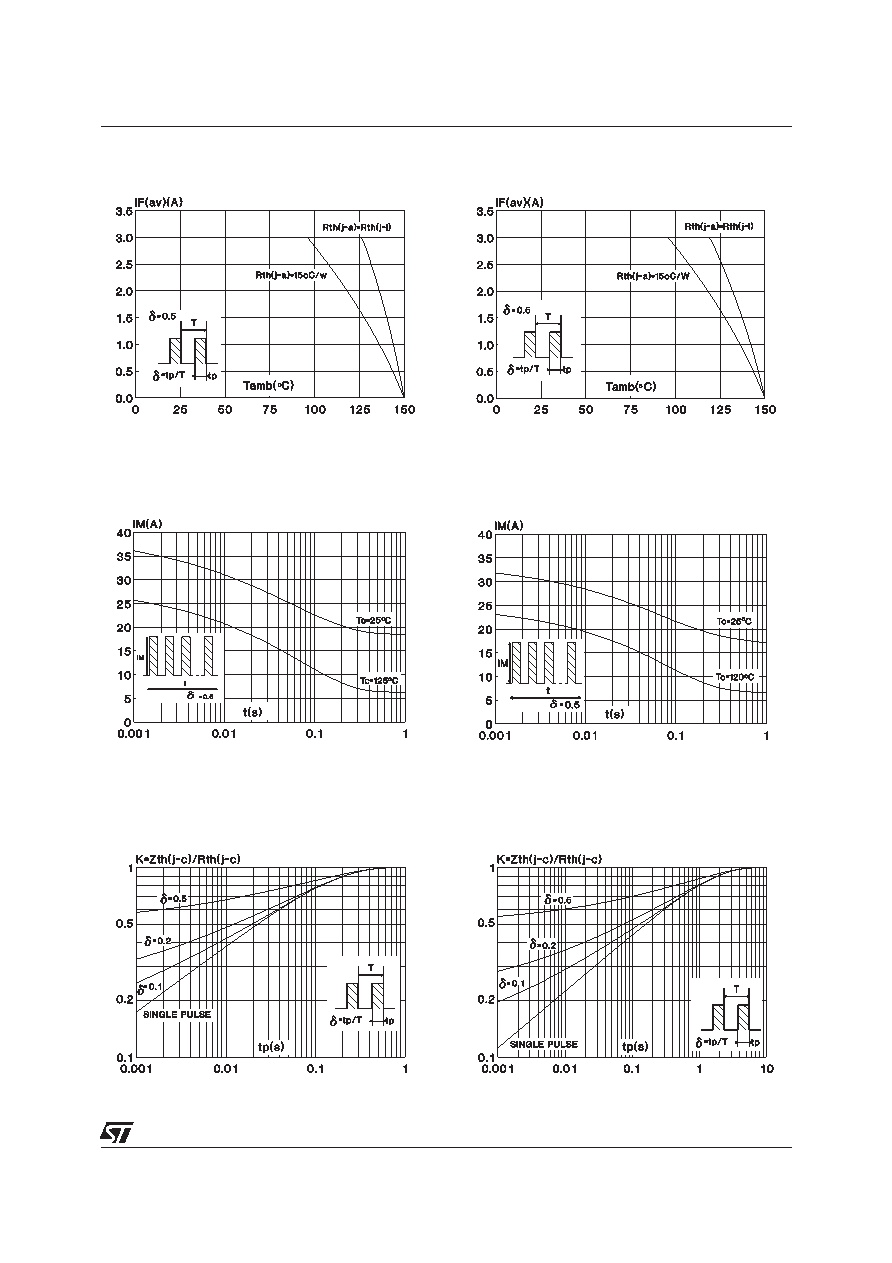

Fig. 3: Average current versus ambient tempera-

ture.(duty cycle: 0.5) (TO-220AB)

Fig. 5: Non repetitive surge peak forward current

versus overload duration (Maximum values) (Per di-

ode) (TO-220AB).

Fig. 7: Relative variation of thermal transient im-

pedance junction to case versus pulse duration

(Per diode) (TO-220AB).

Fig. 4: Average current versus ambient temperature.

(duty cycle : 0.5) (ISOWATT220AB / TO-220FPAB)

Fig. 6: Non repetitive surge peak forward current

versus overload duration (Maximum values) (Per

diode) (ISOWATT220AB / TO-220FPAB).

Fig. 8: Relative variation of thermal transient im-

pedance junction to case versus pulse duration

(Per diode) (ISOWATT220AB / TO-220FPAB).
