INMP510

RF-Hardened, Ultra-Low Noise Microphone with Bottom Port and Analog Output

GENERAL DESCRIPTION

omnidirectional MEMS microphone with high performance,

ultra-low noise, and low power. The INMP510 consists of a

MEMS microphone element, an impedance converter, and an

output amplifier. The INMP510 sensitivity specification makes

it an excellent choice for both near-field and far-field

applications. The INMP510 is pin compatible with the INMP504

microphone. The INMP510 has a very high signal-to-noise

ratio (SNR) and extended wideband frequency response,

resulting in natural sound with high intelligibility. Low current

consumption enables long battery life for portable

applications.

The INMP510 is available in a miniature 3.35 × 2.5 × 0.98 mm

surface-mount package. It is reflow solder compatible with no

sensitivity degradation.

*Protected by U.S. Patents 7,449,356; 7,825,484; 7,885,423; and 7,961,897.

Other patents are pending.

APPLICATIONS

•

Smartphones and Feature Phones

•

Tablet Computers

•

Teleconferencing Systems

•

Digital Still and Video Cameras

•

Bluetooth Headsets

•

Notebook PCs

•

Security and Surveillance

FEATURES

•

Tiny, 3.35 × 2.5 × 0.98 mm Surface-Mount Package

•

High SNR of 65 dBA

•

Acoustic Overload Point of 124 dB SPL

•

Extended Frequency Response from 60 Hz to 20 kHz

•

Omnidirectional Response

•

Sensitivity of −38 dBV

•

Sensitivity Tolerance of ±2 dB

•

Enhanced Radio Frequency (RF) Performance

•

Low Current Consumption of 180 µA

•

Single-Ended Analog Output

•

High PSR of −78 dBV

•

Compatible with Sn/Pb and Pb-Free Solder Processes

•

RoHS/WEEE Compliant

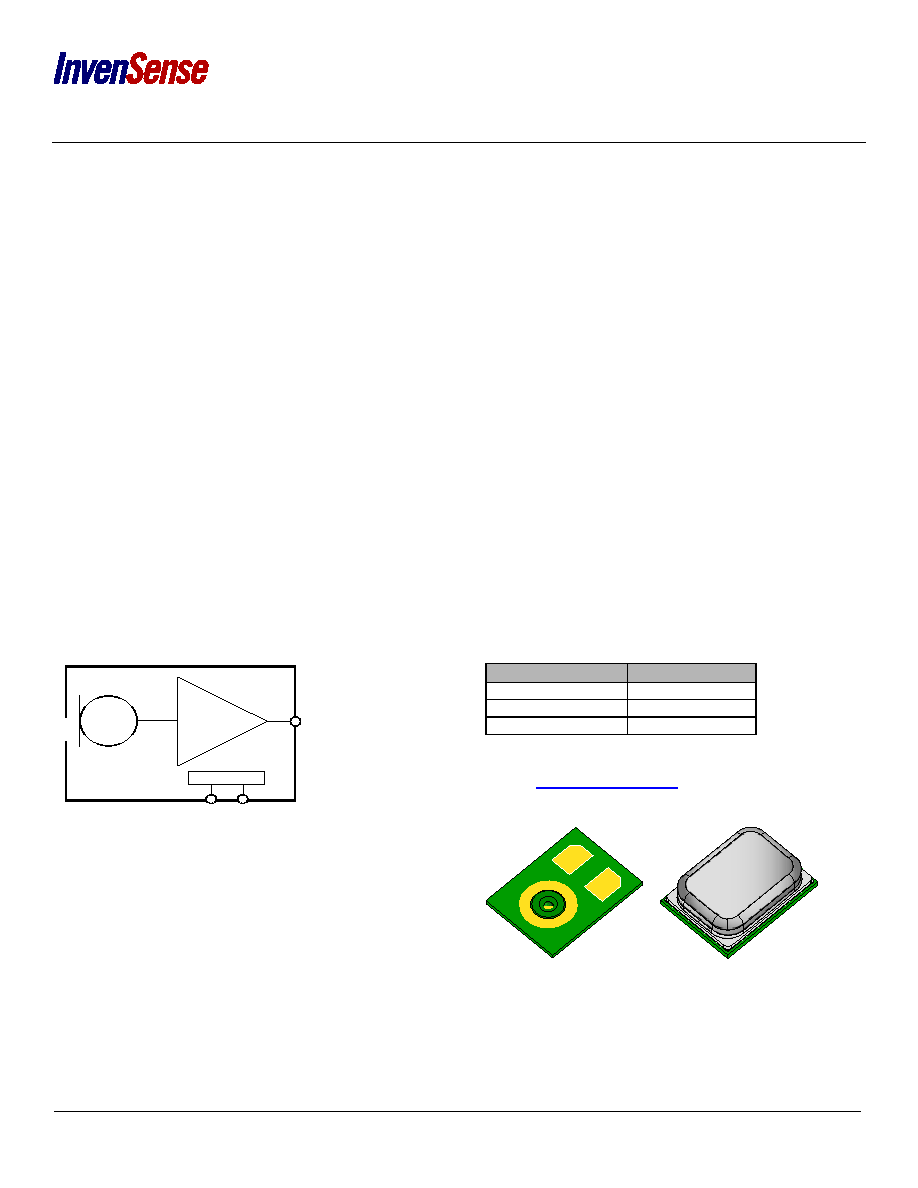

FUNCTIONAL BLOCK DIAGRAM

ORDERING INFORMATION

PART

TEMP RANGE

INMP510ACEZ-R0*

−40°C to +85°C

INMP510ACEZ-R7†

−40°C to +85°C

EV_INMP510-FX

—

* – 13” Tape and Reel

† – 7” Tape and reel is to be discontinued.

Contact sales@invensense.com for availability.

OUTPUT

AMPLIFIER

INMP504

POWER

VDD

GND

OUTPUT
