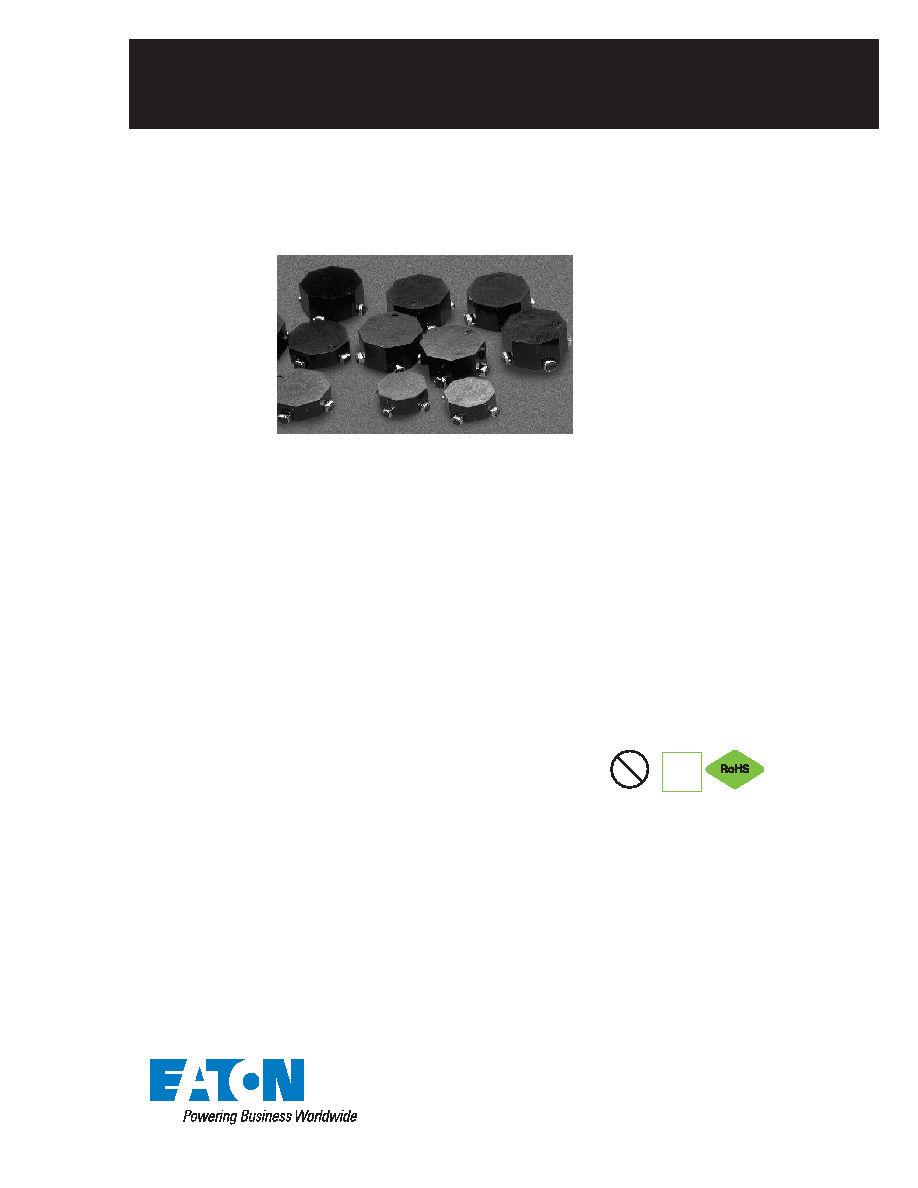

1 / 9 page  Technical Data DS4314 Effective June 2017 Supersedes March 2007 Product features • Surface mount magnetics that can be used as single or coupled inductors or 1:1 transformers that provide isolation between two windings • OCTA-PAC’s are designed around high frequency, low loss core material • ECONO-PAC’s are a lower cost version of OCTA- PAC’s offering high saturation flux density, Iron powder core material • OCTA-PAC PLUS’s offer higher current ratings and higher saturation flux densities than OCTA- PAC and ECONO-PAC, Amorphous metal core material • Secure 4 Terminal Mounting • Inductor more versatile inductance combination by series or parallel connections Applications • Storage temperature range (component): -40 °C to +125 °C • Operating temperature range: -40 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: J-STD-020 (latest revision) compliant ECONO-PAC™/OCTA-PAC® OCTA-PAC® PLUS Dual winding toroid power inductors/transformers Pb HALOGEN HF FREE • Computer and portable power devices • LCD panels, DVD players • Inductor: DC-DC converters • Buck, boost, forward, and resonant converters • Noise filtering and filter chokes • Transformers: 1:1 300 Vdc isolation, flyback, sepic Environmental data Part number • CTX___-__ -R(First three digits CTX; Second 2-3 digits = Inductance Value; Last 1-2 digits, product size & type) • -R indicates RoHS compliant Product size/type • CTX___-1 (-1 = size; no suffix = OCTA-PAC®) • CTX___-1P (-1 = size; P suffix = ECONO- PAC™) • CTX___-1A (-1 = size; A suffix = OCTA-PAC® PLUS) |
