Technical Data 10712

Effective September 2017

HCV1707

High current power inductors

www.eaton.com/electronics

Product specifications

(µH) ±10%

(µH)

minimum

I

rms

3

(A)

I

4

(A)

I

5

(A)

I

6

(A)

DCR (mΩ)

±10% @ +20 °C

HCV1707R1-R48-R

0.48

0.42

32

55

68

47

1.7

1. Open Circuit Inductance (OCL) Test Parameters: 100 kHz, 0.1 Vrms, 0.0 Adc, +25 °C

2. Full Load Inductance (FLL) Test Parameters: 100 kHz, 0.1 Vrms, I

3. I

for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generat-

ing components will affect the temperature rise. It is recommended that the temperature of the part

not exceed +125 °C under worst case operating conditions verified in the end application.

4. I

5. I

6. I

7. Part Number Definition: HCV1707Rx-Rxxx-R

HCV1707= Product code and size

Rx= Version indicator

Rxx= Inductance value in μH, R= decimal point,

If no R is present last character equals number of zeros

-R suffix = RoHS compliant

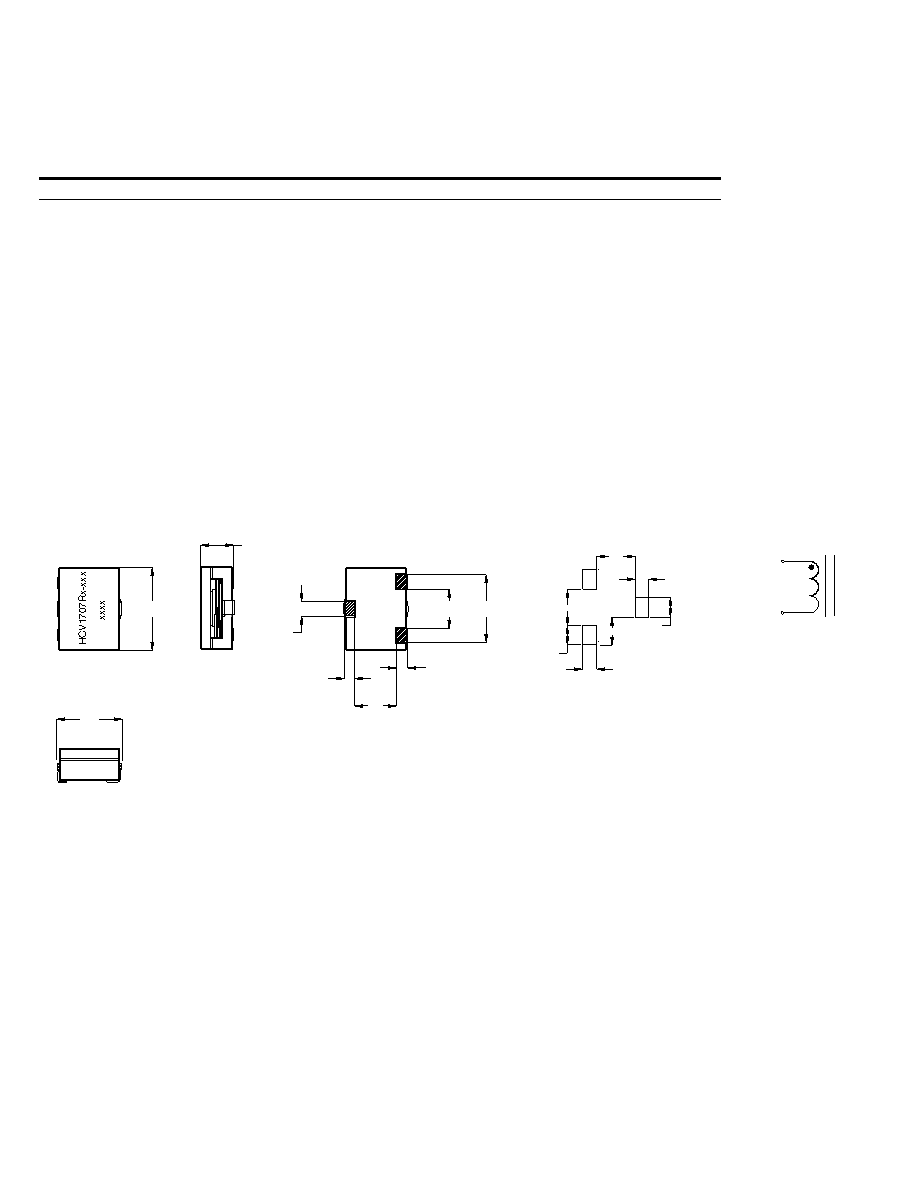

Dimensions (mm)

Part marking: HCV1707Rx-Rxx, Rxx= inductance value in uH, R= decimal point,

if no R is present last character equals number of zeros

xxxx=lot code

All soldering surface to be coplanar within 0.1 millimeters

Tolerances are ±0.15 millimeters unless stated otherwise

Pad layout tolerances are ±0.1 millimeters unless stated otherwise

Pin NC is for mounting stability. No connection.

Do not route traces or vias underneath the inductor

Recommended Pad Layout

Schematic

Part marking: HCV1707Rx-Rxx, Rxx= inductance value in uH, R= decimal point,

if no R is present last character equals number of zeros

xxxx=lot code

Soldering surfaces to be coplanar within 0.1 millimeters

Pin NC is for mounting stability. No connection.

3.00

2.00

7.20

9.00

3.70

5.75

14.0

0.35

17.3

0.5

6.5

0.4

7.8

0.4

14.0

0.5

2.4

0.3

9.7

0.5

1.5

0.2

3.0

0.2

2.70

Do not route traces or vias underneath the inductor.

Tolerances are 0.15 millimeters unless stated otherwise

Pad layout tolerances are 0.1 millimeters unless stated otherwise

NC
