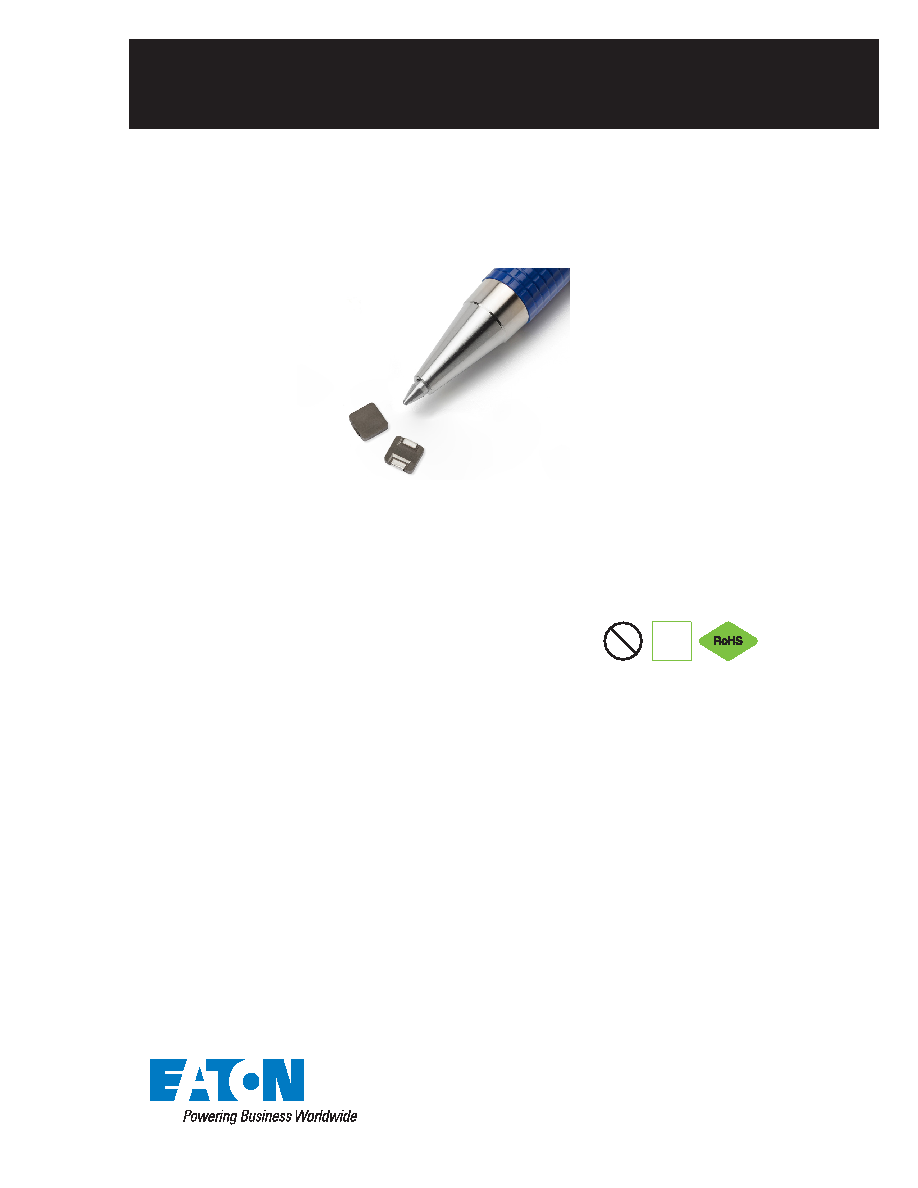

Technical Data 10651

Effective April 2017

MPI40-V2

High current, low profile, miniature power inductors

Product features

•

High current carrying capacity

•

Magnetically shielded, Low EMI

•

Rugged flexible construction

•

Self resonant frequency (SRF) greater

than 9.5 MHz

•

Inductance range from 0.1 μH to 22 μH

•

Current range from 1.2 A to 22 A

•

4.75 mm x 4.45 mm footprint surface mount

package in 1.2 mm, 1.5 mm, and 2.0 mm

heights

•

Moisture Sensitivity Level (MSL): 1

Applications

•

Handheld/mobile devices

•

Portable media players

•

Notebook/netbook/laptop regulators

•

Tablets/smartbooks

•

Battery operated devices

•

LED drivers

•

LCD displays

•

Point-of-load (POL) converters

Environmental data

•

Storage temperature range (Component):

-55 °C to +125 °C

•

Operating temperature range: -55 °C to +125 °C

(ambient plus self-temperature rise)

•

Solder reflow temperature:

J-STD-020 (latest revision) compliant

•

Halogen free, lead free, RoHS compliant

Pb

HALOGEN

HF

FREE
