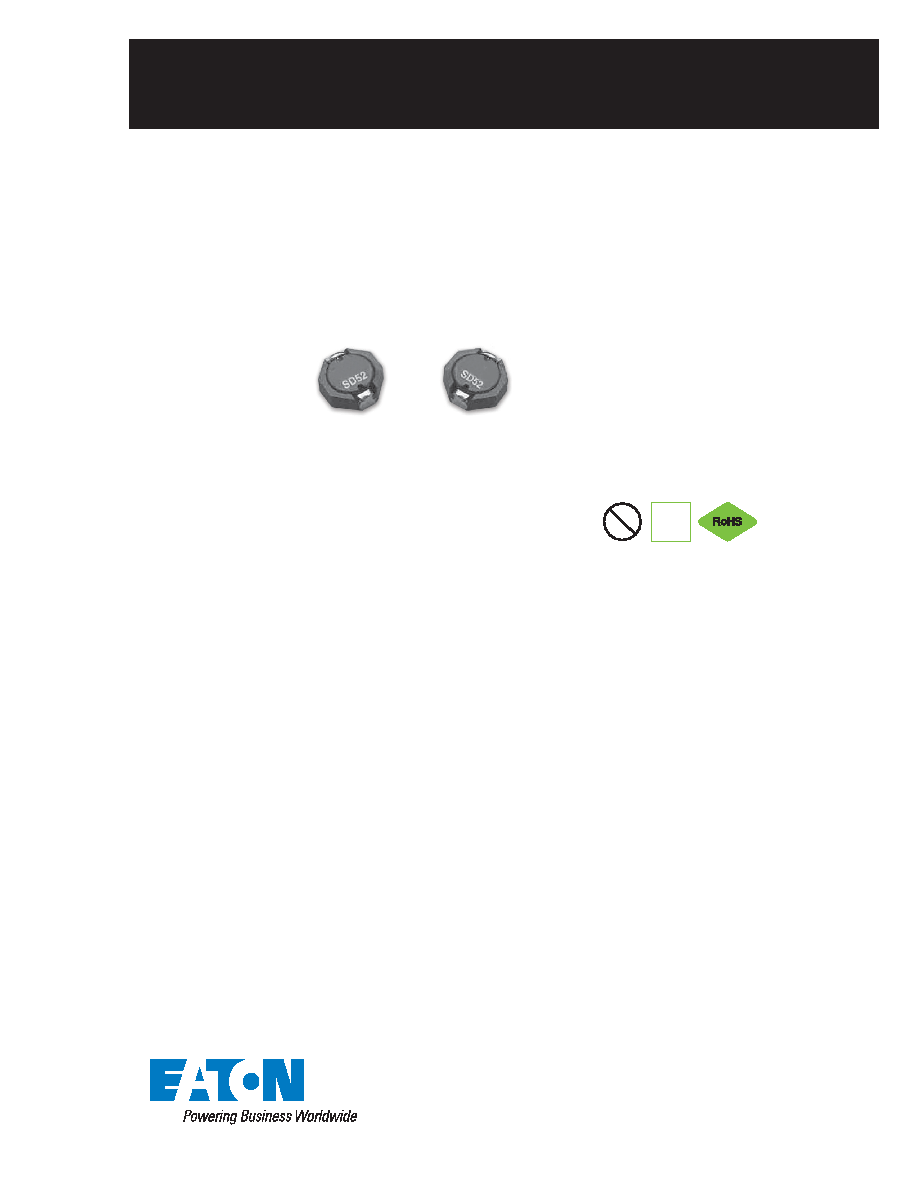

Technical Data 4311

Effective November 2015

Supersedes March 2007

Product description

•

Octagonal shape shielded drum core

•

Inductance range from 1.2 uH to 150 uH

•

Current range from 0.28 A to 3.14 A

•

5.6 mm x 5.2 mm footprint surface mount

package in a 2.0 mm height

•

Ferrite core material

•

Halogen free, lead free, RoHS compliant

Applications

•

Desktop computers

•

Notebook and laptop regulators

•

Graphics cards

•

Digital cameras, media devices

Environmental Data

•

Storage temperature range: -40 °C to +125 °C

•

Operating temperature range: -40 °C to +125 °C

(ambient plus self-temperature rise).

•

Solder reflow temperature: J-STD-020D compliant

Pb

HALOGEN

HF

FREE

SD52

High power density, low profile shielded power inductors
