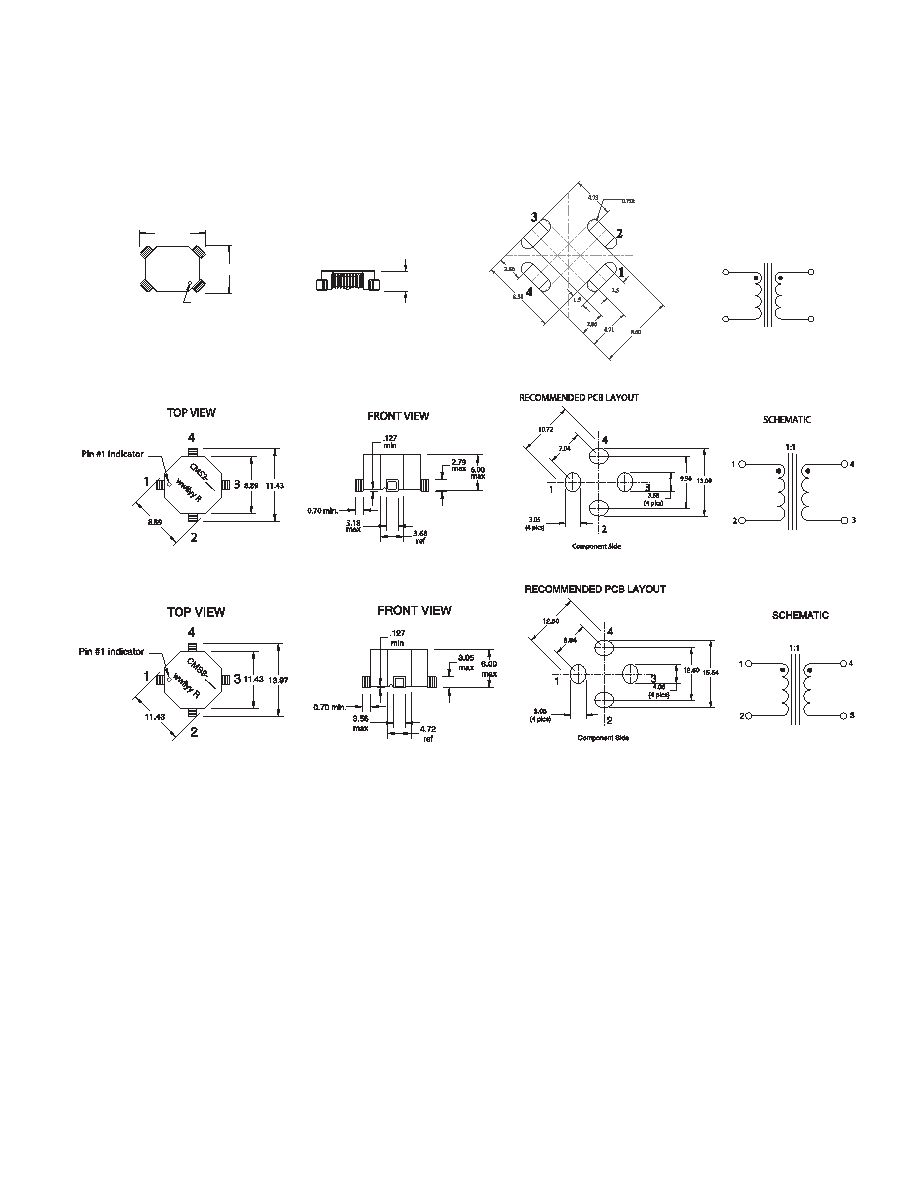

background image
3
Technical Data
4313
Effective October 2015
CMS
Common mode inductors, surface mount
www.eaton.com/elx
33333
44444
22222
11111
TOP VIEW
9.4 max
7.2 max
Pin 1 indicator
White dot
wwllyy R
CMS1-
FRONT VIEW
2.6 max
RECOMMENDED PCB LAYOUT
SCHEMATIC
4
1
3
1:1
2
wwllyy = Date code R = Revision level
Dimensions–mm
CMS1
CMS2
CMS3
